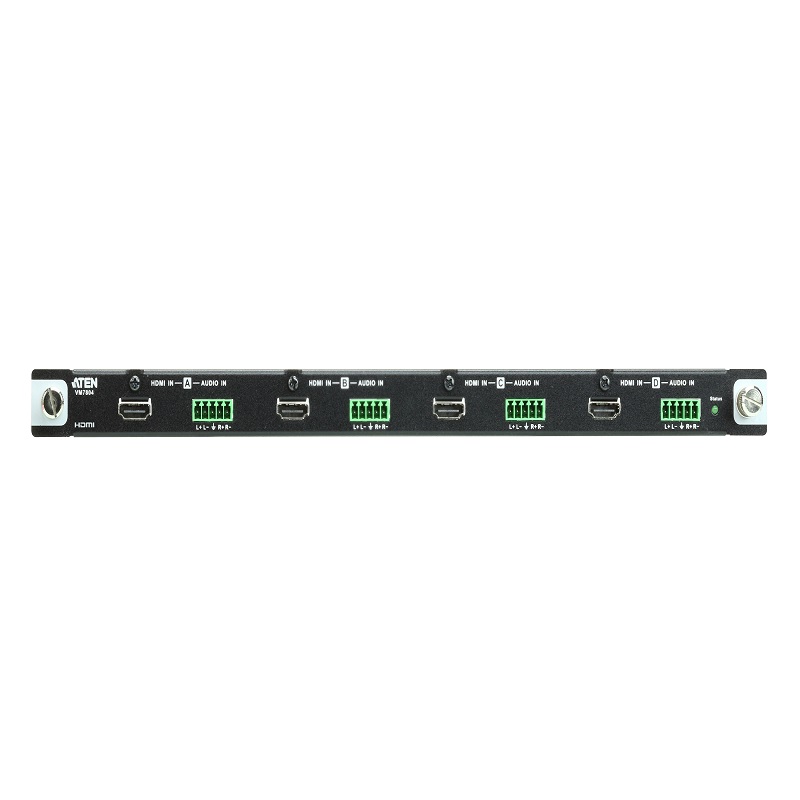

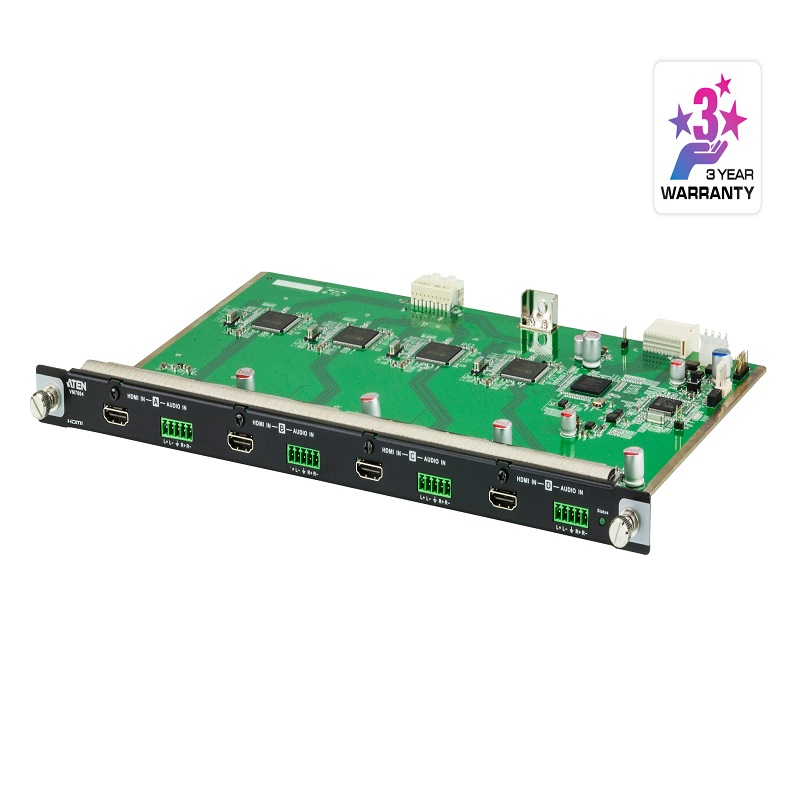

4-Port HDMI Input Board

Product Code : VM7804

Brand Category : Video Matrix Switches

Description

Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
HDMI (3D, Deep Color); HDCP 1.4 Compatible
Consumer Electronics Control (CEC) support
EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
Built-in EDID wizard – provides an easy way to customized EDID settings
Hot-swappable design for easy integration of I/O boards
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded

Technical Specification

Video Input
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	Up to 5m
Video
Max. Data Rate	6.75 Gpbs (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1920 x 1080
Audio
Input	4 x Captive Screw Connector, 5 Pole *Audio signal type: stereo, balanced/unbalanced.
Power Consumption	7W:33BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.58 kg ( 1.28 lb )
Dimensions (L x W x H)	35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
Carton Lot	2 pcs
