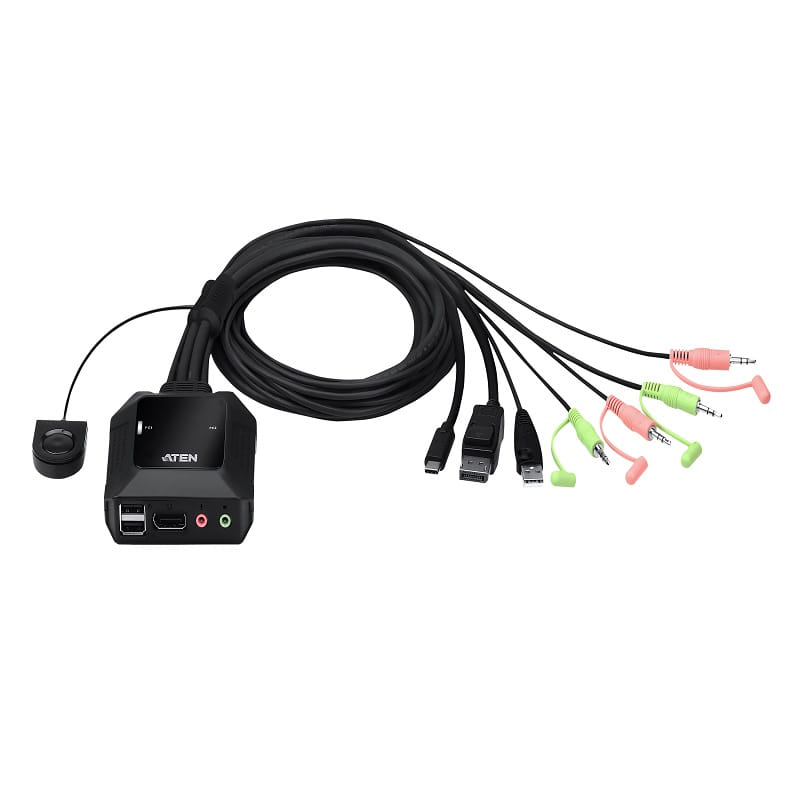

2-Port USB-C DisplayPort Hybrid Cable KVM Switch

2-Port USB-C DisplayPort Hybrid Cable KVM Switch

Product Code : CS52DP

Brand Category : Cable KVM Switches


Description


"

  • One KVM console controls one USB DisplayPort computers and one USB-C device
  • Superior video quality – up to 4096 x 2160 @ 60 Hz
  • Computer selection via remote port selector
  • Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
  • DisplayPort 1.2 and HDCP compliant1
  • Bus-powered – no external power adapter required
  • The console USB ports can be used for USB peripheral sharing2
  • Multiplatform support – Windows, Mac, Linux, Android, and iOS
  • No software required
  • Hook design for space-saving and organized workstation
  • Supports USB hot-plugging

    Note:
    1. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue.
    2. The CS52DP may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 2
Port Selection Remote Port Selector
Connectors
Console Ports 1 x DisplayPort Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

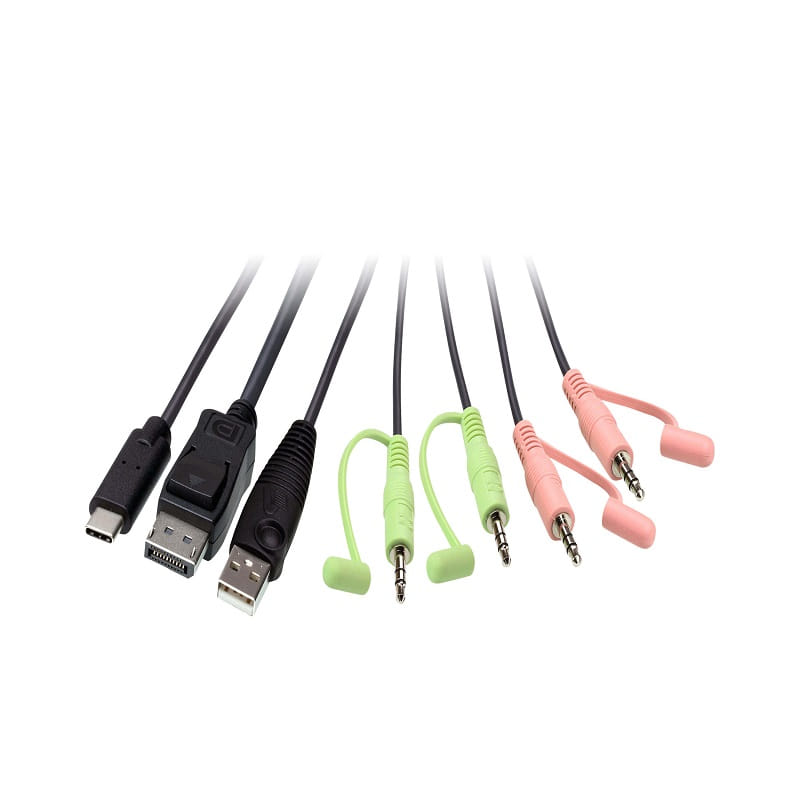

KVM (Computer) Ports CPU1:
1 x DisplayPort Male
1 x USB Type A Male
1 x 3.5mm Audio Jack Male (Green)
1 x 3.5mm Audio Jack Male (Pink)
CPU2:
1 x USB Type C Male
1 x 3.5mm Audio Jack Male (Green)
1 x 3.5mm Audio Jack Male (Pink)
Power (Optional) 1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected) 2 (White)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse N/A
Video Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Power Consumption DC5V:0.74W:8BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.30 kg ( 0.66 lb )
Dimensions (L x W x H) 8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
