4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch

4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch

Product Code : CL3884NW

Brand Category : LCD KVM Switches / Consoles


Description


"

  • Reliability and Operational Versatility
    • Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
    • Quick Access Toolbar – intuitive user interface for editing
    • Supports an extra console via USB/HDMI connectors for up to two console displays*
    • Display mode layout customization
    • Superior video quality – 1920 x 1200 @ 60 Hz
    • Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
    • Boundless Switching – simply moves the mouse cursor across windows to switch to other video sources
    • Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
    • Easily resizes and/or repositions any PiP or PbP to suit users’ viewing needs
    • EDID Expert™ – selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens
    • Cascade up to 2 levels – controls up to 16 computers (with up to 4 x 4 Multi-View mode)
    • Auto Scan mode – enables continuous monitoring of user-selected computers
    • Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
    • Additional hot-pluggable USB peripheral port on front panel
      *Both outputs can provide a combination of multi-view display modes simultaneously. However, users can only have one of the two outputs set to full-screen mode.




<!-- Features List-2 -->

  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

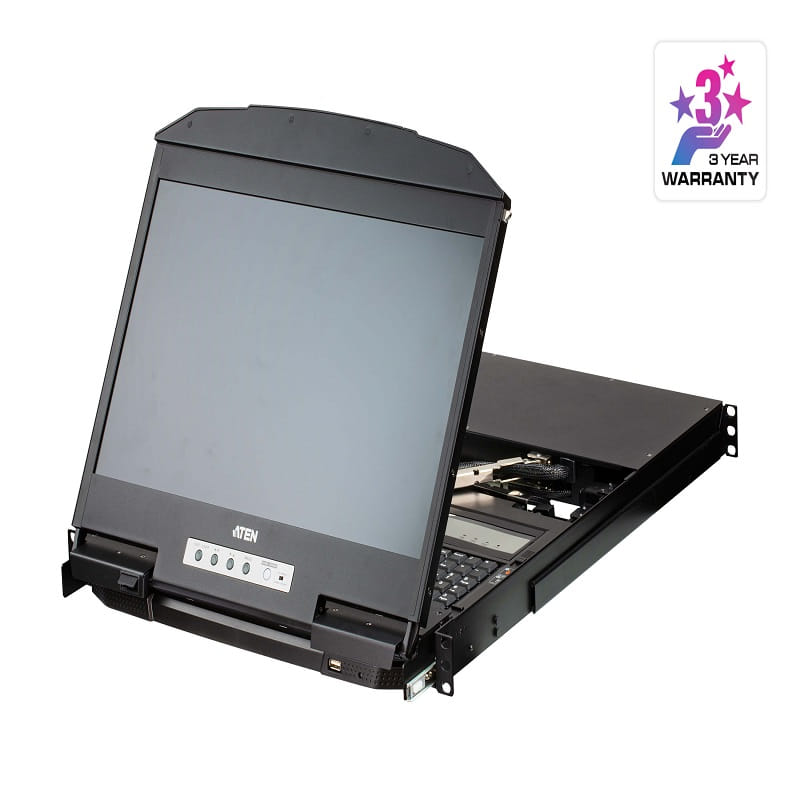

    • Integrated KVM console with an 18.5” LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Dual rail design allows LCD monitor and keyboard/touchpad modules to operate independently
    • Console lock – enables the console drawer to remain securely locked away in position when not in use




<!-- Features List-3-->

  • Installation Flexibility
    • Standard rack mount kit included
    • Optional rack mount kits available, including easy installation options*
    • No software required
    • Firmware upgradable
    • Supports hot-plugging



"


Add to Query Cart PDF Download


Technical Specification


Computer Connections
Direct 4
Maximum 16 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton, RS-232 Command

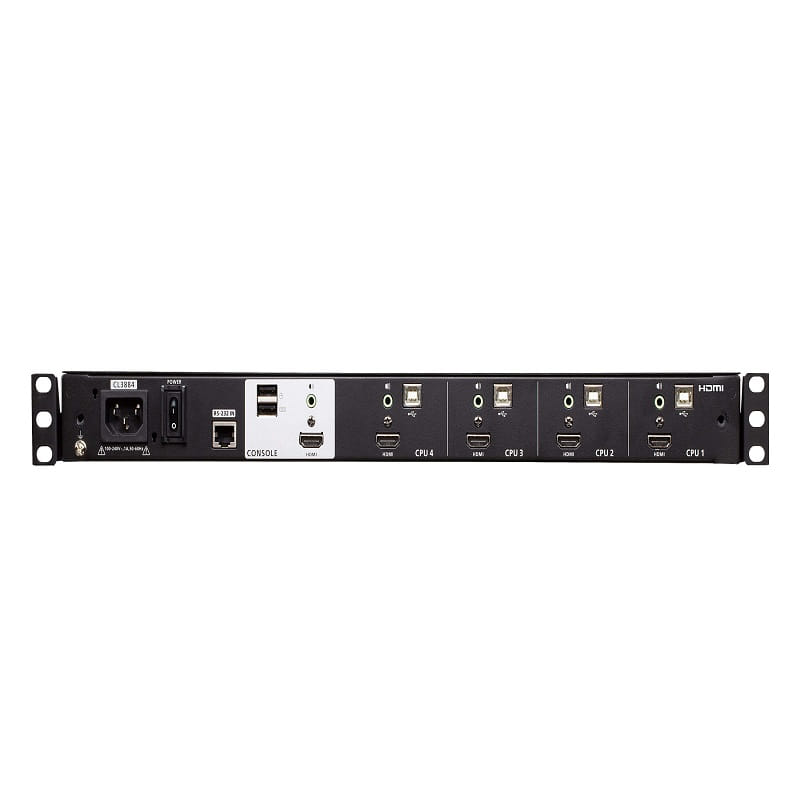

Connectors
KVM Ports 4 x HDMI Female
4 x USB Type B Female
4 x 3.5mm Audio Jack Female (Green)
Power 1 x IEC 60320/C14
Serial 1 x RJ-45 Female
External Console Ports 1 x HDMI Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
USB Port 1 x USB Type A Female (Front)
Switches
Port Selection 4 x Pushbutton
Multi-View Mode 5 x Pushbutton
Display Mode 3 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
LEDs
Power 1 (Dark Green)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 18.5" TFT-LCD
Resolution 1920 x 1080 @ 60 Hz
Response time 20 ms
Viewing Angle 178° (H), 178° (V)
Support Color 16.77M colors
Contrast Ratio 1000 : 1
Luminance 350 cd/m⊃2;
Video
Input Video Resolution 1920 x 1200 @ 60 Hz
Second console 1920 x 1200 @ 60 Hz
Scan Interval 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
Emulation
Keyboard / Mouse USB
Maximum Input Power Rating 100-240V AC, 50-60Hz, 1A
Power Consumption AC110V:35.2W:171BTU
AC220V:35.7W:174BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-85% RH, Noncondensing
Physical Properties
Housing Metal
Rail Type Dual Rail
Weight 11.20 kg ( 24.67 lb )
Dimensions (L x W x H) 48.06 x 63.10 x 4.28 cm
(18.92 x 24.84 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 58.40 x 4.28 cm
(17.68 x 22.99 x 1.69 in.)
