Yukit LED Control System

Yukit LED Control System

Product Code :

Brand Category : VWC3 LED Processor

Description

UniLic series is an intelligent LED control system, including LED sending cards/controllers, receiving cards, 2-in-1 LED controllers and LED video processors. The system is designed to deliver unparalleled performance for LED display in various applications, such as control rooms, meeting rooms, events, and exhibitions.

Add to Query Cart

Technical Specification

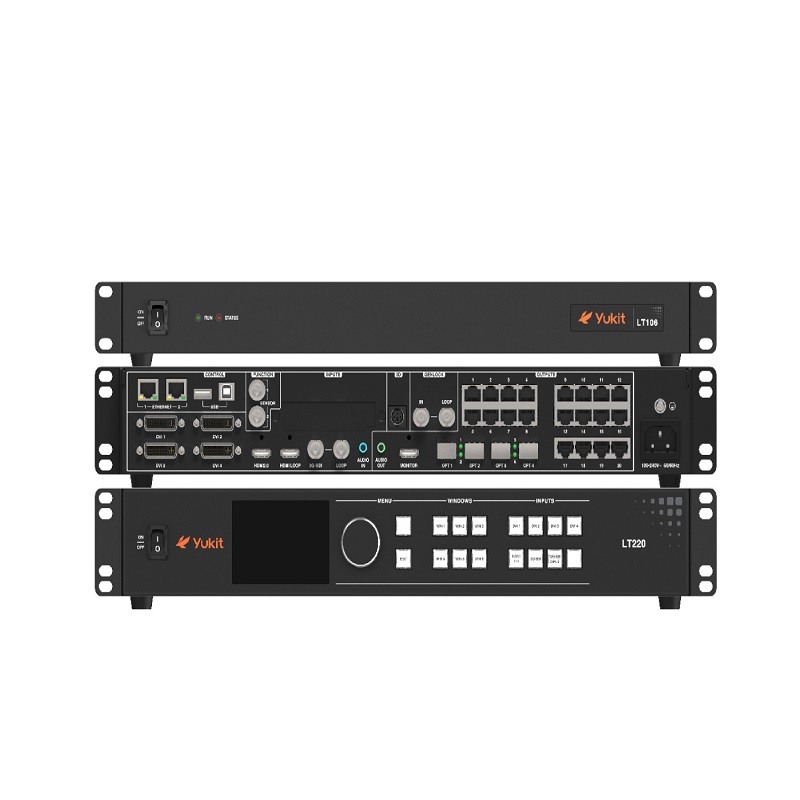

Features LT102 LT104 LT106 LT220
Load Capacity 1.3M 2.3M 2.3M 10.4M
Max Width 4096 Width 4096 Width 4096 Width 16384
Width/Height Height 4096 Height 4096 Height 4096 Height 8192
Interface DVI x 1(+Loop) Default:
HDMI x 1(+Loop) HDMI2.0 x 1(+Loop)
AUDIO x 1 DVI x 4
  SDI-3G x 1(+Loop)
  Options:
  SDI-12G(+Loop) or DP1.2
Max Resolution 1920 x 1200@60Hz 1920 x 1200@60Hz 1920 x 1200@60Hz 4K x 2K@60Hz
Ethernet 2 4 6 20
Fiber ○ ○ ○ 4
3D ○ ○ ○ ●
HDR ○ ○ ○ ●
Stepless Zoom ○ ○ ○ ●
Presets ● ● ● ●
Input Label ○ ○ ○ ●
Multiple LED Group ● ● ● ●
Cascading ● ●  ● ●



Features LR-E Series LR-M Series LR-H Series
E508S E508 E512 E516 E520 M202L M202 H201L H201
Load 512 x 256 512 x 256 512 x 512 512 x 512 512 x 512 512 x 384 512 x 512 512 x 384 512 x 512
Interface HUB75 HUB320 120pin High-Density Connector 200pin DDR2 SODIMM
Fine Grayscale Adjustment ● ● ● ● ● ● ● ● ●
90 Degree Rotation ● ● ● ● ● ● ● ● ●
Color Management ● ● ● ● ● ● ● ● ●
Pixel-Level Correction Brightness Correction Pixel-Level Correction of Brightness and Chroma
Brightness and Chroma ● ● ● ● ● ● ● ● ●
Indep Gamma Adjustment ● ● ● ● ● ● ● ● ●
Multiple Default Gamma Curve ● ● ● ● ● ● ● ● ●
Auto Calibration ○ ○ ○ ○ ○ ● ● ● ●
Gamma Calibration ● ● ● ● ● ● ● ● ●
Curve Edit ● ● ● ● ● ● ● ● ●
Enable/Disable Calibration ● ● ● ● ● ● ● ● ●
3D ● ● ● ● ● ● ● ● ●



Features LC1102 LC1105 LC1306 LC1308 LC1310 LC2620
Layers 1 1 3 3 3 6
Ethernet 2 5 6 8 10 20
Fiber ○ ○ 2 2 2 4
Max Load Pixels 1.30M 2.30M 3.90M 5.20M 6.50M 10.40M
Max Width/Height 3840 x 2160 3840 x 2160 8192 x 8192 8192 x 8192 8192 x 8192 16384 x 8192
Audio DVI x 1 Default:  Default:
HDMI x 1 HDMI2.0 x 1 HDMI2.0 x 1(+Loop)
VGA x 1 HDMI1.3 x 1(+Loop) DVI x 4
 CVBS x 1 HDMI1.3 x 1 SDI-3G x 1(+Loop)
USB x 1 USB x 1 Options:
AUDIO x 1 [DVI x 1, or optional port] [SDI-12G(+Loop) or DP1.2]
  Options：
  [SDI-12G(+Loop) or DP1.2]
4K@60 ○ ○ ● ● ● ●
Stepless Zoom ● ● ● ● ● ●
Presets ● ● ● ● ● ●
Transitions ● ● ○ ○ ○ ○
Multiple Video ○ ○ ● ● ● ●
Wall Groups
Scrolling Text ○ ○ ● ● ● ●
Full Backup ● ● ● ● ● ●
Live Preview ● ● ● ● ● ●
Multi Control Method
