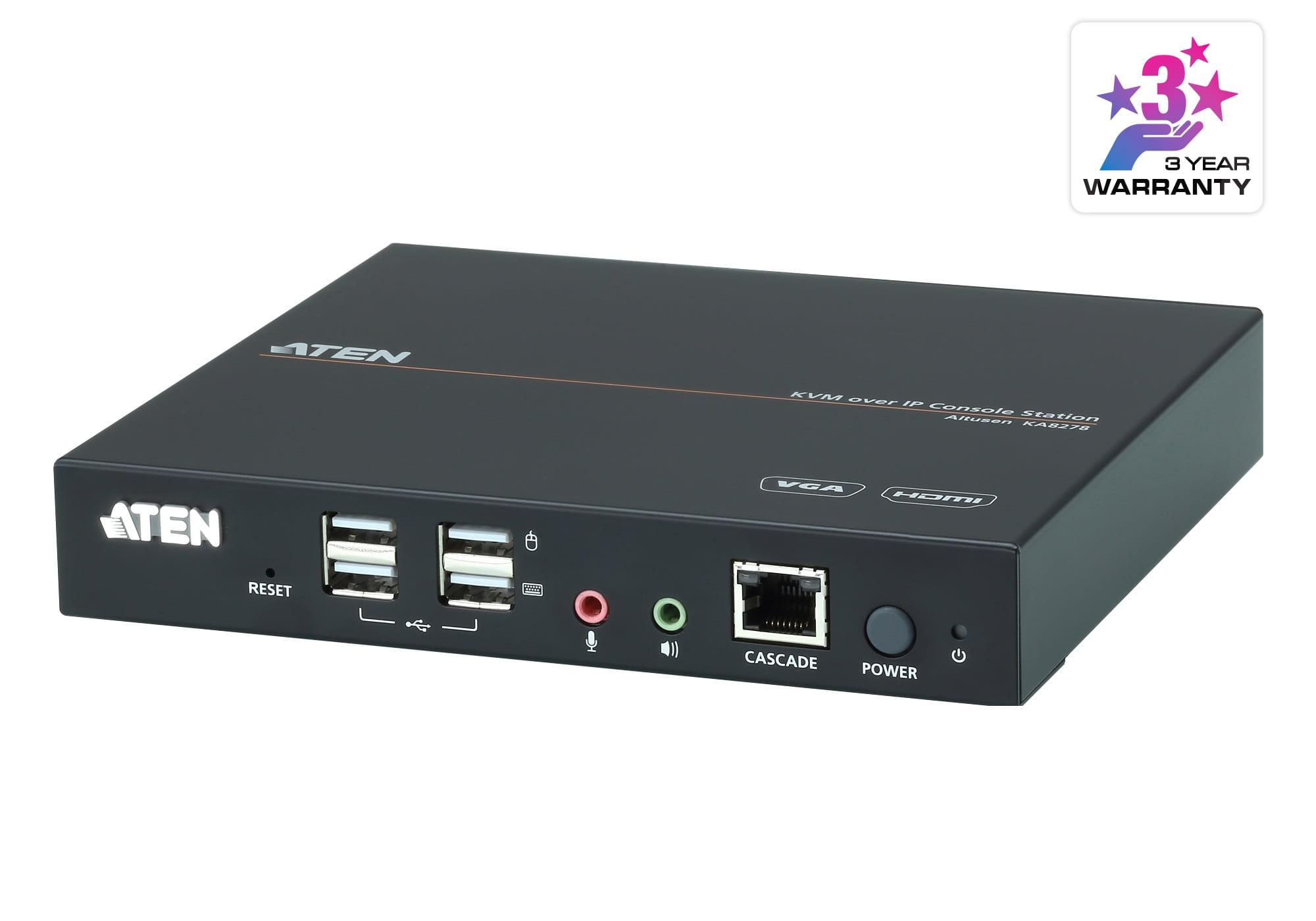

VGA/HDMI KVM over IP Console Station

Product Code : KA8278

Brand Category : KVM over IP Switches

Description

A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches
Impenetrable security against virus threats and impervious data protection
Single sign-on to consolidate the management of multiple ATEN’s KVM over IP switches
Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
Supports 1 VGA plus 1 HDMI video outputs – enables users to multitask across two displays with a single keyboard and mouse
Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
Supports Boundless Switching – allows users to control up to 4 screens between two console stations by using one set of keyboard & mouse
Extended desktop – supports extended display for remotely connected PCs on the dual screens of KA8278
Share screen – shares screen content from one console station to another for real-time collaboration
Supports Telnet / SSH for connecting to and management of console devices
Supports RDP / VNC remote management for physical servers / virtual machines*
Lock screen password – prevents unauthorized users from accessing the console station when unattended
Supports Virtual Media
Supports USB Smartcard
Wall Mountable – standard mounting kit included
Space-saving 0U rack mount design for rear rack mounting
GUI with multi-language interface

Note: The audio function is not supported and it will be available in future firmware updates.

Technical Specification

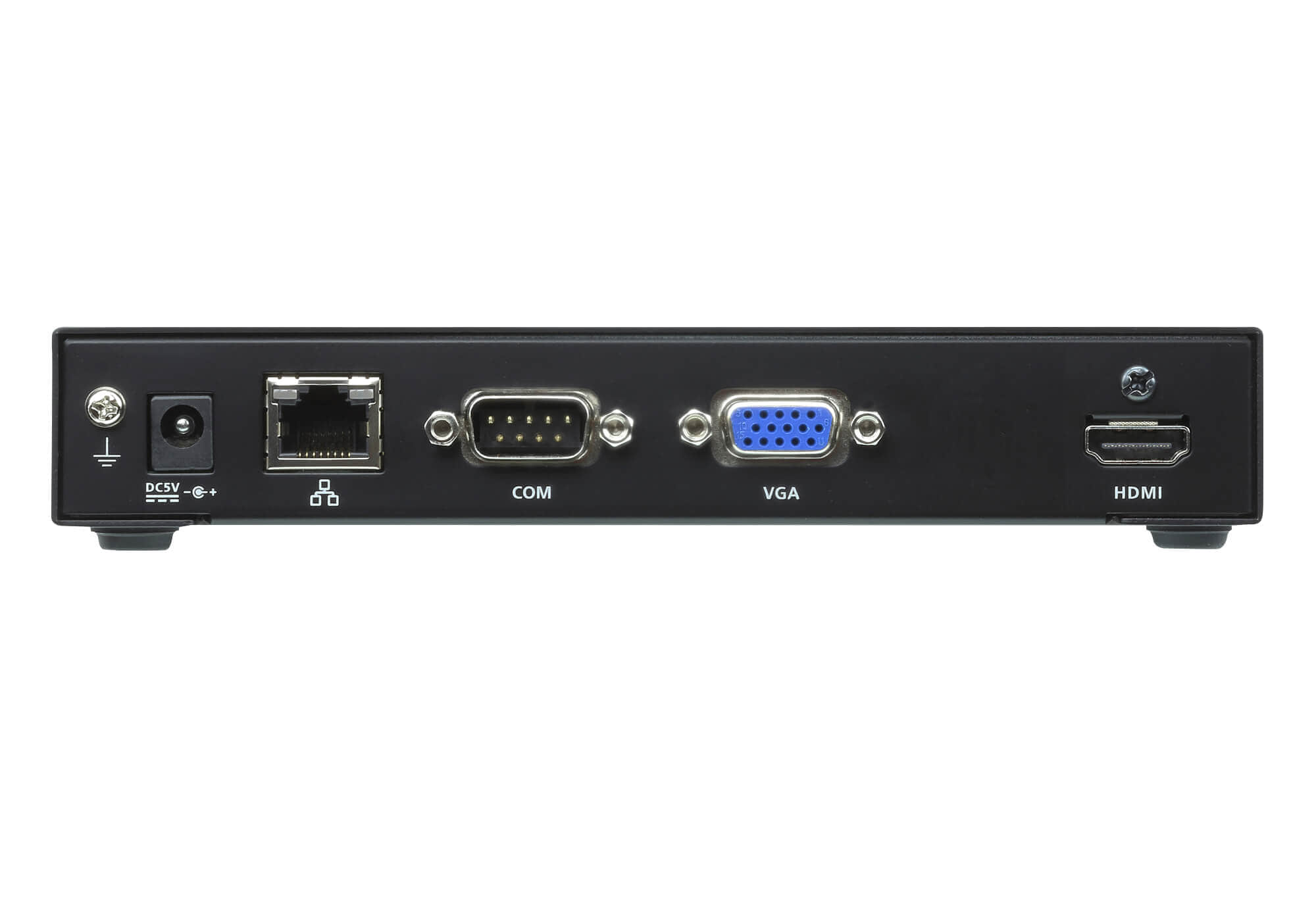

Connectors
Video	1 x HDB-15 Female 1 x HDMI Female
RS-232	1 x DB-9 Male
Power	1 x DC Jack
Audio	2 x Audio Jack Female
LAN Ports	1 x RJ-45 Female
Keyboard	1 x USB Type-A Female
Mouse	1 x USB Type-A Female
USB Port	2 x USB Type-A Female
Cascade Port	1 x RJ-45 Female
LEDs
Power	1 (Blue)
Switches
Power	1 x Push button
Reset	1 x Semi-recessed Push button
Video	1920 x 1200 @ 60Hz
Power Consumption	DC 5V:6.53W:56.18BTU
Environmental
Operating Temperature	0 -40°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.80 kg ( 1.76 lb )
Dimensions (L x W x H)	17.42 x 15.54 x 2.88 cm (6.86 x 6.12 x 1.13 in.)
Compatible Appliances
KVM over IP switches	KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, KN4140VA, CN8000A, KN1000A. KN1108VA, KN1116VA, KL1108V, KL1116V, CN9000, CN9600, CN9950 (up to FHD)
