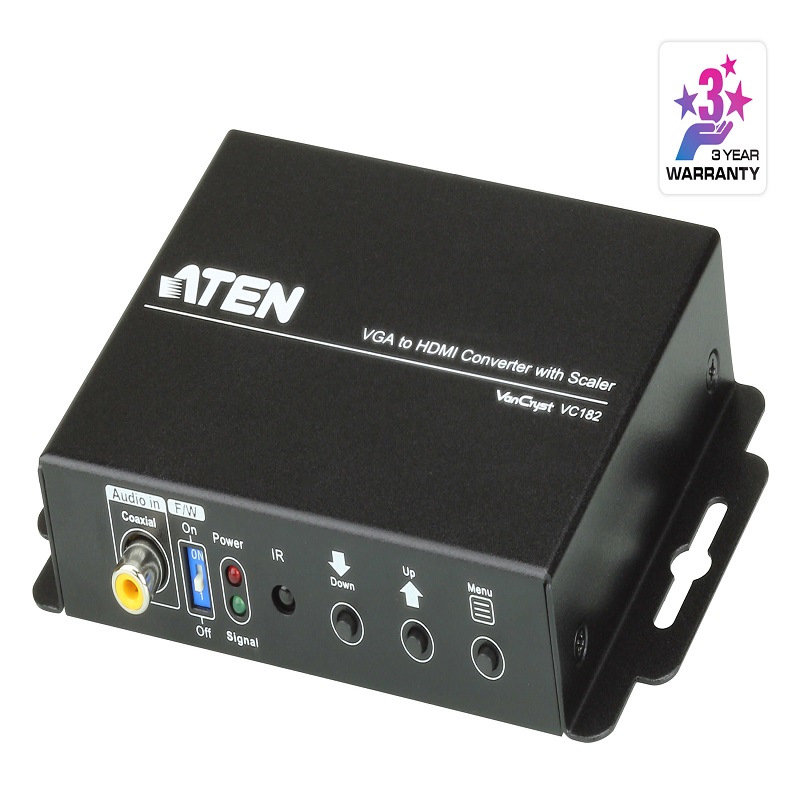

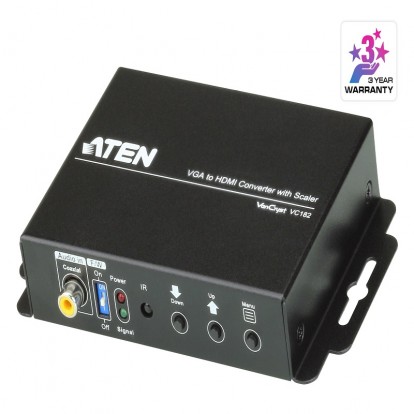

VGA/Audio to HDMI Converter with Scaler

Product Code : VC182

Brand Category : Video Converters

Description

Converts VGA signals to HDMI output
Supports analog / digital audio
Superior video quality – up to 1080p, 1920 x 1200
Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
Features a built in high-performance scaler function for best image quality
Features a superior de-interlacer function for smooth video playback quality
Built-in OSD function for video and system settings confi guration
Integrated superior video noise reduction
Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
Automatically detects video input signals

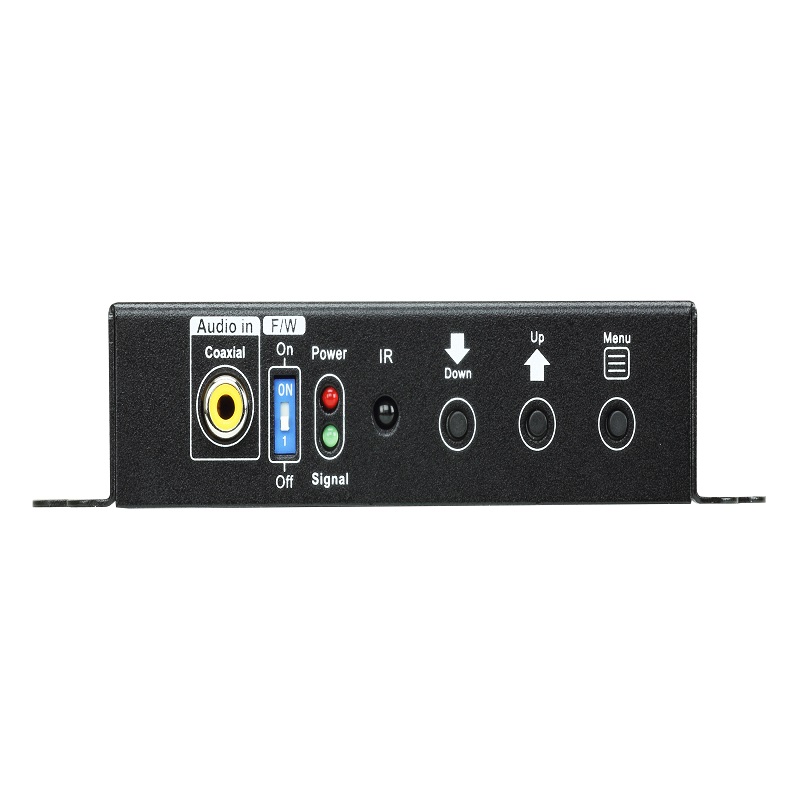

LED indication of power status and source device
No software required – eliminates incompatibility and installation issues
Device configuration using a utility tool via mini USB port
Supports 16:9 and 4:3 video aspect ratios
Multiple selectable video resolutions

Technical Specification

Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video
Max. Pixel Clock	165 MHz
Max. Resolution	Up to 1080p
Scaler Resolutions	640x480; 800x600; 1024x768; 1280x1024; 1360x768; 1400x1050; 1600x1200; 1440x900; 1680x1050; 1920x1080; 1920x1200; 720p; 1080p
Audio
Input	Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:1.56WBTU
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 - 60 ºC
Humidity	20 - 90% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.31 kg ( 0.68 lb )
Dimensions (L x W x H)	11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.)
Carton Lot	5 pcs
Video Input
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 Ω
