VGA/Audio to HDMI Converter

Product Code : VC180

Brand Category : Video Converters

Description

Converts VGA signals to HDMI output
Supports analog stereo audio input
Superior video quality – up to 1080p, WUXGA
Screen Position Button – screen position settings can be stored for each output resolution
Multiplatform support – Windows and Mac
Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
Automatically detects video input signals
LED indicator
HDMI compatible
Compact and lightweight
No software required – eliminates incompatibility and installation issues

Technical Specification

Video Input

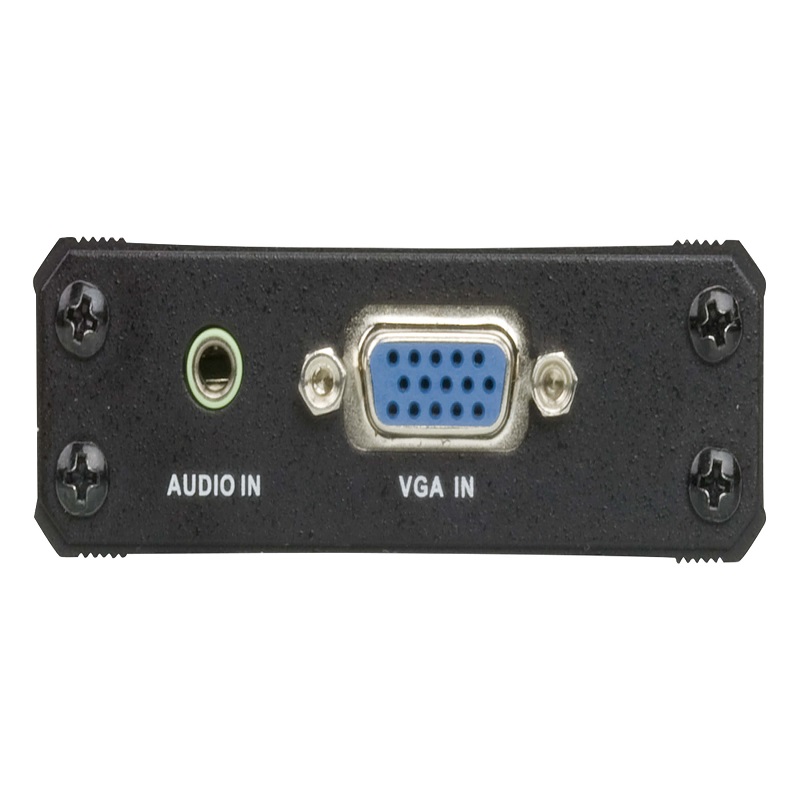

Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 Ω
Video Output

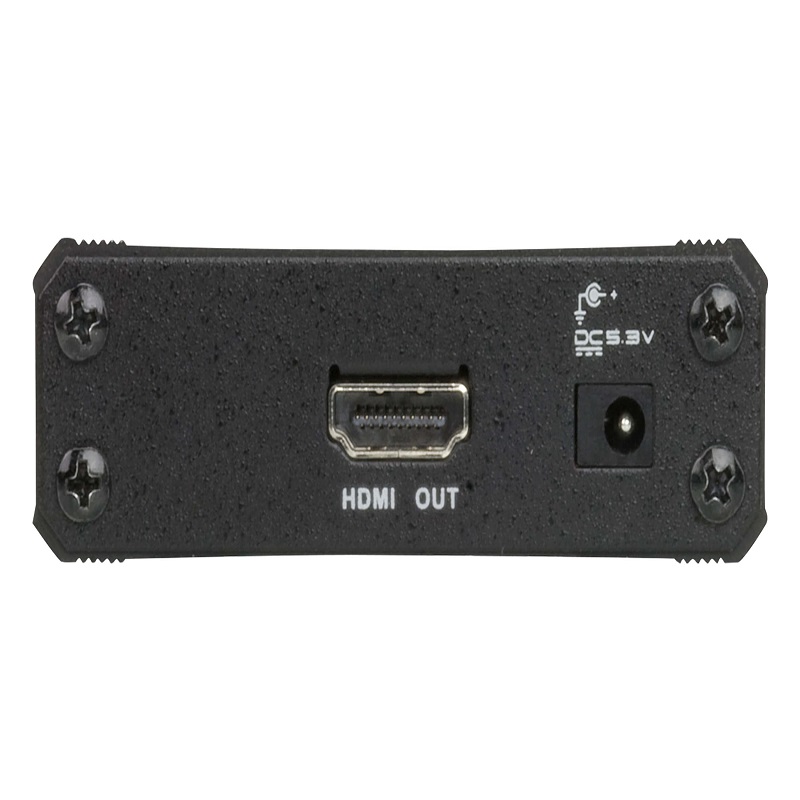

Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video
Max. Pixel Clock	165 MHz
Max. Resolution	Up to 1080p
Audio
Input	1 x Mini Stereo Jack Female (Green)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:2.62W:12BTU
Environmental
Operating Temperature	0 - 50 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.16 kg ( 0.35 lb )
Dimensions (L x W x H)	7.90 x 7.81 x 2.44 cm (3.11 x 3.07 x 0.96 in.)
Carton Lot	20 pcs
