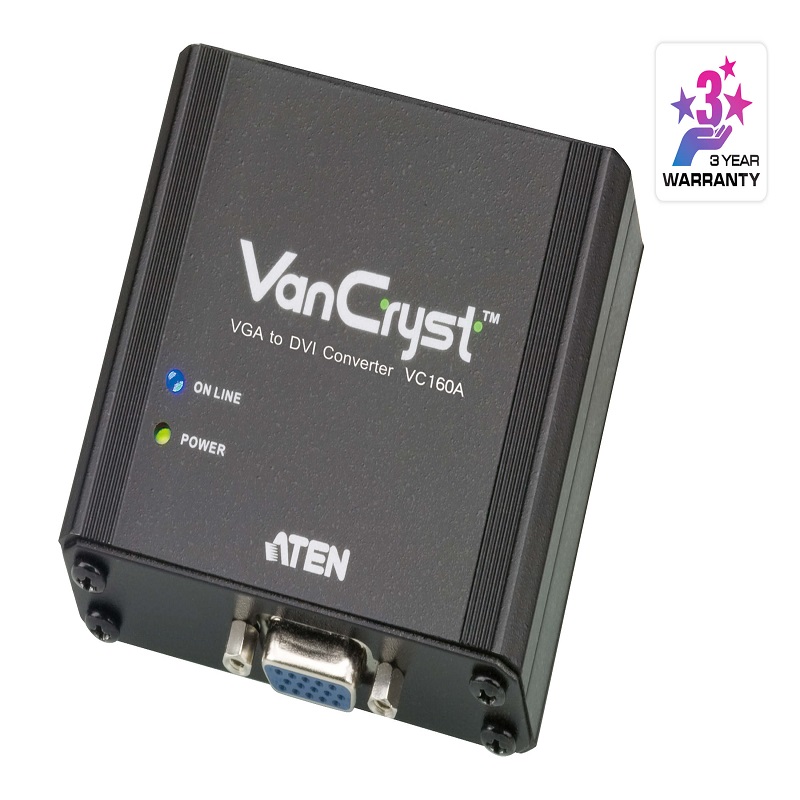

VGA to DVI Converter

VGA to DVI Converter

Product Code : VC160A

Brand Category : Video Converters

Description

  • Converts analog VGA signals to DVI output
  • Multiplatform support – Windows and Mac
  • No software required – eliminates incompatibility and installation issues
  • Compact and lightweight
  • Supports dual power sources – VGA port or power adapter (in case the VGA port cannot provide sufficient power)
  • Superior video quality – up to 1080P (HDTV) or 1920x1200 (PC)
  • Automatically detects video input signals (indicated by LED)
  • Smart Video Display – Image quality is optimized based on the available resolution of the output device
  • Screen Position Button – screen position can be adjusted and restored for each output resolution

Add to Query Cart PDF Download

Technical Specification

Video Input

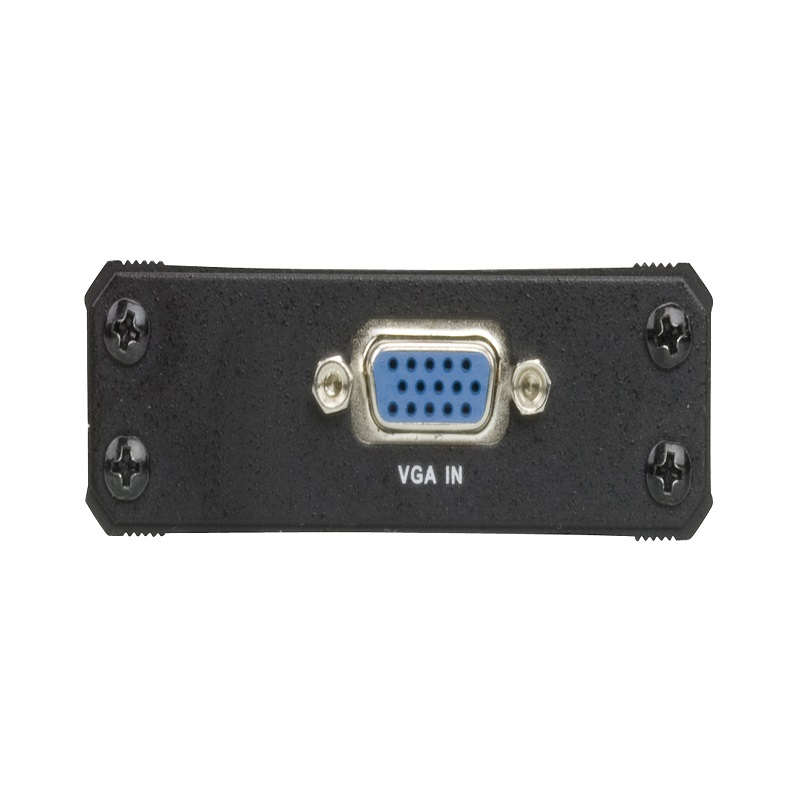

Interfaces1 x HDB-15 Female (Blue)
Impedance75 Ω
Video Output
Interfaces1 x DVI-D Female (White)
Impedance100 Ω
Video
Max. Pixel Clock165 MHz
Max. ResolutionUp to 1920 x 1200
Connectors
Power1 x DC Jack
Power ConsumptionDC5.3V:1.64W:8BTU
Environmental
Operating Temperature0 - 50 ºC
Storage Temperature-20 - 60 ºC
Humidity0 - 80% RH,  Non-Condensing
Physical Properties
HousingMetal
Weight0.15 kg ( 0.33 lb )
Dimensions (L x W x H)7.90 x 7.81 x 2.44 cm
(3.11 x 3.07 x 0.96 in.)
Carton Lot10 pcs
