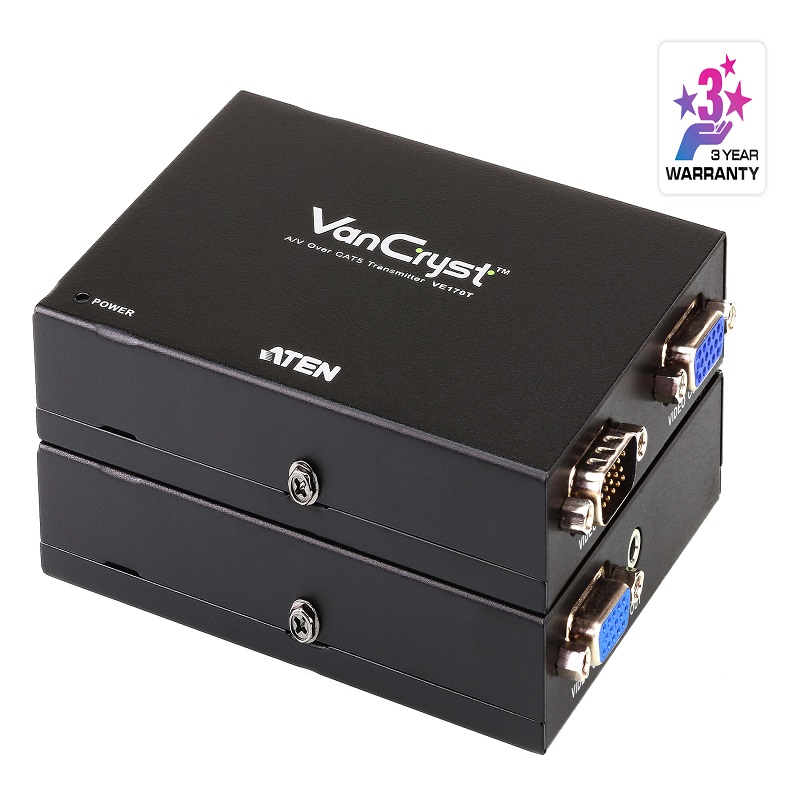

VGA / Audio Cat 5 Extender (1024 x 768@300m)

Product Code : VE170

Brand Category : Video Extenders

Description

Connects a transmitter and receiver via Cat 5e cable
Long distance transmission - up to 1920 x 1200@30m; 1024 x 768@300m
Supports one local and one remote VGA display
Long distance transmissions – up to 300 m

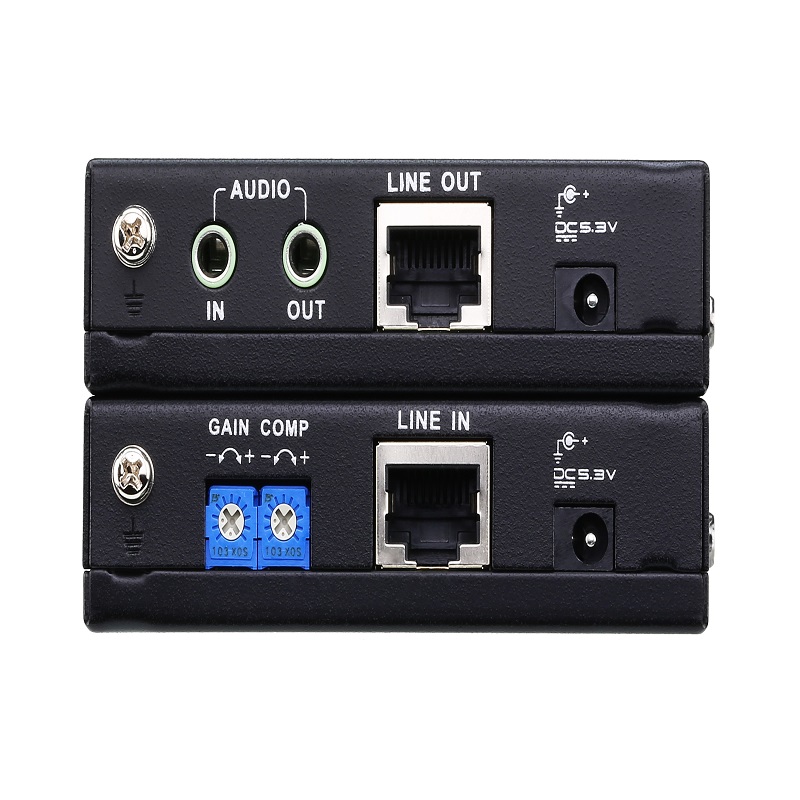

Adjustable Gain Control – signal strength can be manually adjusted via video gain or video compensation tuners
Audio supported (mono)
Built-in ESD protection
Rack-mountable

Technical Specification

Function	VE170R	VE170T
Video Input
Interfaces	N/A	1 x HDB-15 Male (Blue)
Impedance	N/A	75 Ω
Max. Distance	N/A	1.8 m
Video Output
Interfaces	1 x HDB-15 Female (Blue)	1 x HDB-15 Female (Blue)
Impedance	75 Ω	75 Ω
Video
Max. Bandwidth	300 MHz	300 MHz
Max. Resolutions / Distance	Up to 1920 x 1200@30m; 1024 x 768@300m	Up to 1920 x 1200@30m; 1024 x 768@300m
Audio
Output	1 x Mini Stereo Jack Female (Green)	1 x Mini Stereo Jack Female (Green)
Input	N/A	1 x Mini Stereo Jack Female (Green)
Connectors
Power	1 x DC Jack	1 x DC Jack
Environmental
Operating Temperature	0-50°C	0-50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal	Metal
Weight	0.24 kg ( 0.53 lb )	0.25 kg ( 0.55 lb )
Dimensions (L x W x H)	12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)	12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
Carton Lot	5 pcs	5 pcs
Power Consumption	DC5.3V:3.32W:16BTU	DC5.3V:2.42W:11BTU
