Product Code :
Brand Category : Video Extenders

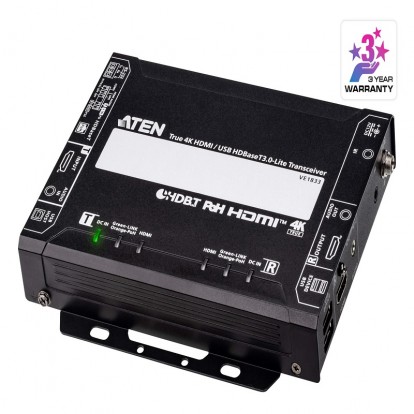

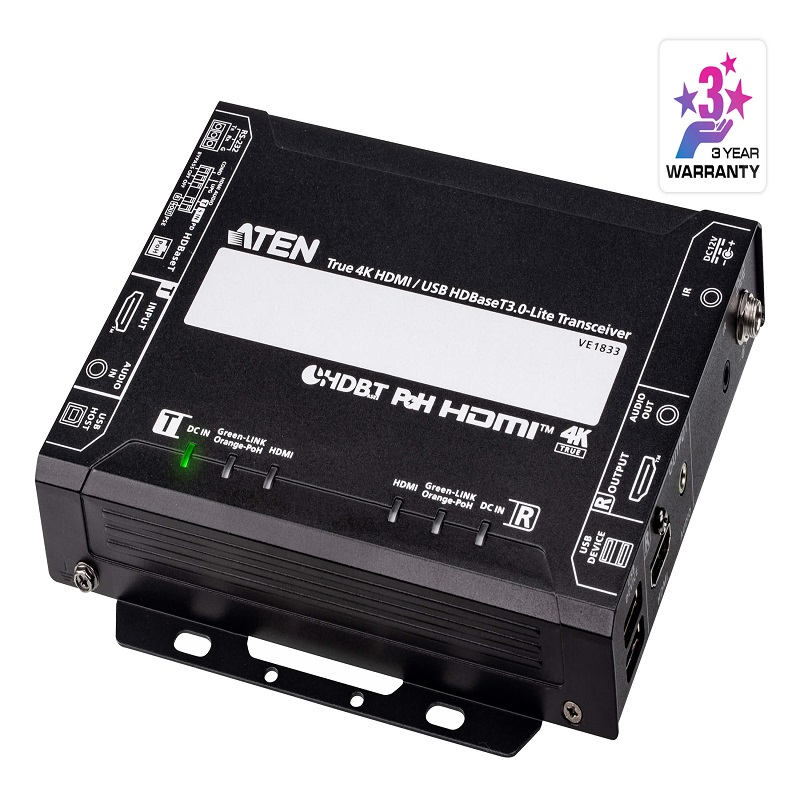

True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH (True 4K@40 m)

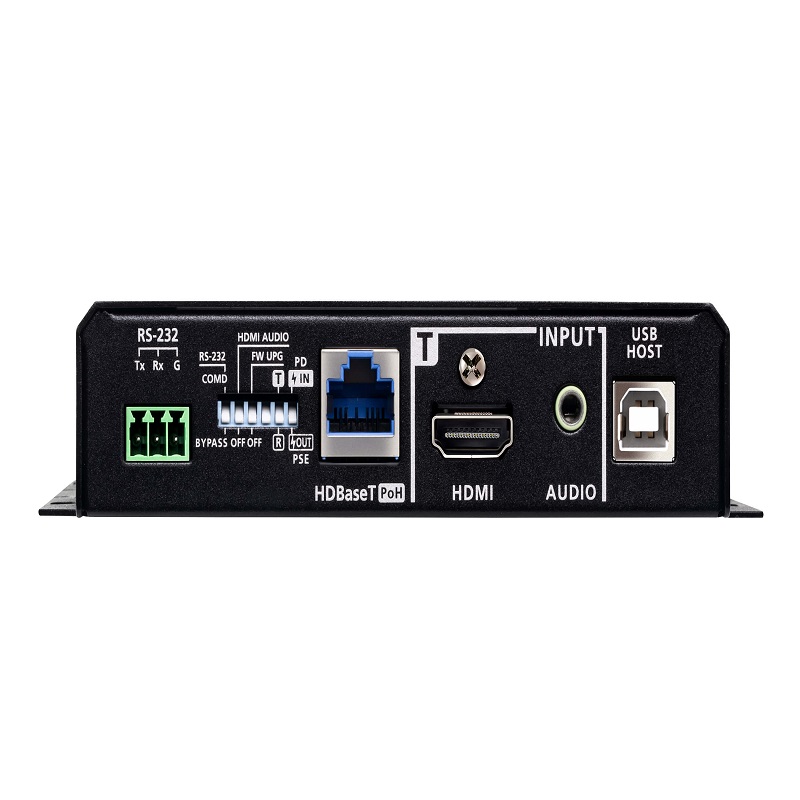

| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 m |

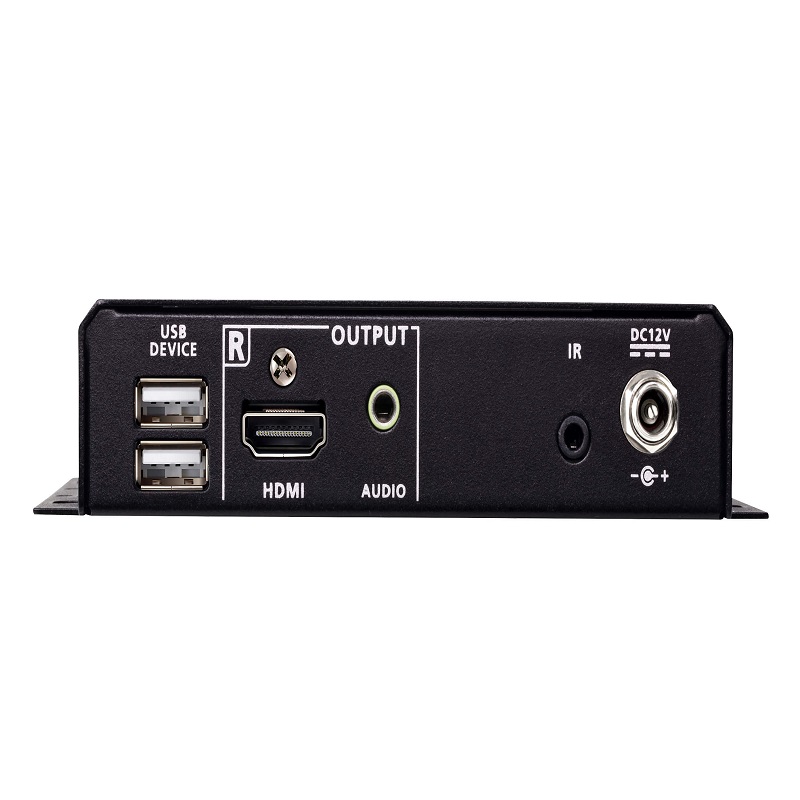

| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 m |
| Video | |
| Max. Data Rate | 18Gbps (6Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K/60Hz); 4K HDR HDCP2.2/2.3 Compatible Consumer Electronics Control (CEC)* *The CEC signals are only bypassed from the transmitter unit to the receiver unit and do not support local output. |
| Max. Resolution | 4096 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Resolutions / Distance | Up to 4K x 2K @ 60Hz (4:4:4) @40m (HDBaseT3 Certified Cat 6a U/FTP cable / ATEN’s tailor-made HDBaseT cable) |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) 1 x Stereo Audio ( mini stereo Jack female , Green) |
| Output | 1 x HDMI Type A Female (Black) 1 x Stereo Audio ( mini stereo Jack female , Green) |
| Connectors | |
| Unit To Unit | 1 x RJ-45 Female (HDBaseT) |
| Power | 1 x DC Jack (Black) with locking 1 x RJ-45 Female, POH PD & PSE supported |
| Control | |
| RS-232 Channel | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR Channel | 1 x Mini Stereo Jack Female, (Bi-directional, Black) 30K ~56KHz full range transmission |
| USB Channel | 1 x USB2.0 Type B Female (White, Host) 2 x USB2.0 Type A Female (White, Device) Transmission data bandwidth: Up to 300Mbps |
| Power Consumption | DC12V:6.01W:92BTU/h (Tx) DC12V:7.09W:118BTU/h (Rx) Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Switches | |
| Selection | 1 x Slide Switch - T (Be a Transmitter) / R (Be a Receiver) selection |
| Mode Selection | 1 x Slide Switch - HDMI Audio embed or De-embed ON/OFF selection 1 x Slide Switch - POH PD or PSE selection 1 x Slide Switch - RS232 Command or Bypass mode selection |
| Firmware Upgrade | 1 x Slide Switch - ON/OFF |
| LEDs | |
| Power | TX: 1 x DC in Power supplied (Green) & 1 x POH Power supplied (Orange) RX: 1 x DC in Power supplied (Green) & 1 x POH Power supplied (Orange) NOTE: The TX or RX LED lights to indicate which role the VE1833 is set to by DC Power or POH. |
| Link | 1 x TX Link status (Transmitter, Yellow Green) 1 x RX Link status (Receiver, Yellow Green) |
| Video Output | 1 x RX HDMI OUT status (Receiver, Orange) |
| Video Input | 1 x Tx HDMI IN status (Transmitter, Orange) |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) with bracket | 16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.) |
| Input Resolutions | 4096 x 2160p 24 / 25 / 30 / 50 / 60 Hz | 1280 x 800 @ 60 Hz |
| 4096 x 2160p 50 / 60 Hz 4:2:0 | 1080p 24 / 25 / 30 / 50 / 60 Hz | |
| 3840 x 2160p 24 / 25 / 30 / 50 / 60 Hz | 1080i 50 / 60 Hz | |
| 3840 x 2160p 50 / 60 Hz 4:2:0 | 1024 x 768 @ 60 / 70 / 75 Hz | |
| 2560 x 1440 @ 144 Hz | 800 x 600 @ 56 / 60 / 72 / 75 Hz | |
| 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking) | 720p 50 / 60 Hz | |
| 1920 x 1080 @ 60 / 120 / 144 / 240 Hz | 720 x 400 @ 70 Hz | |
| 1680 x 1050 @ 60 Hz | 640 x 480 @ 60 / 67 / 72 / 75 Hz | |
| 1600 x 1200 @ 60 Hz | 640 x 480 @ 60 Hz (4:3) | |
| 1440 x 900 @ 60 Hz | 576p 50 Hz (4:3 / 16:9) | |
| 1400 x 1050 @ 60 Hz | 480p 60 Hz (4:3 / 16:9) | |
| 1280 x 1024 @ 60 / 75 Hz |
