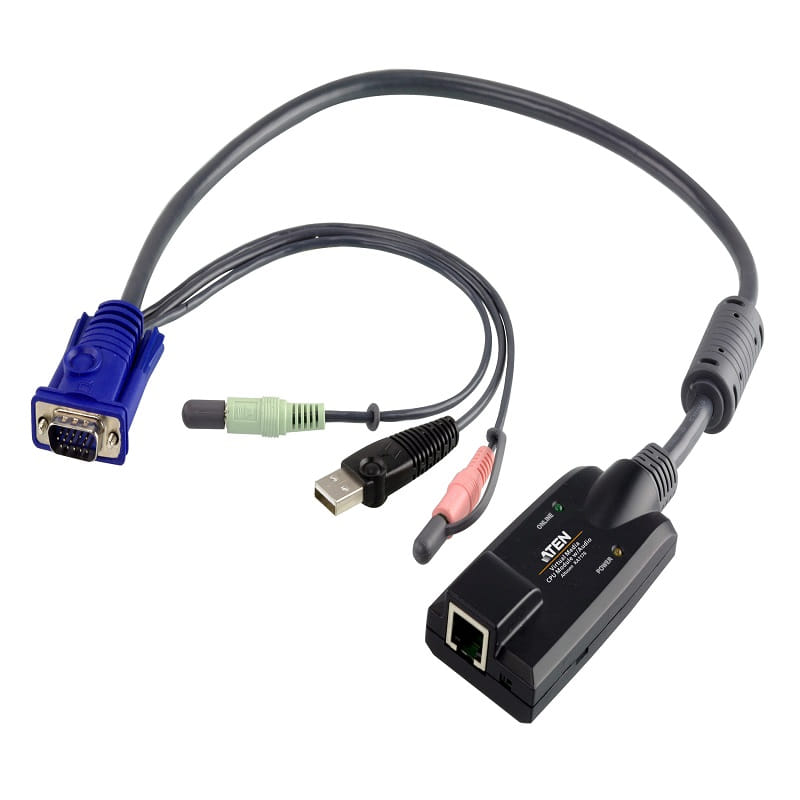

USB VGA/Audio Virtual Media KVM Adapter

Product Code : KA7176

Brand Category : KVM Modules & Accessories

Description

Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
Compact size
Virtual Media Support
Audio enabled

* This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches. Both the video and audio signals might interfere while using an unshielded cable, and long-distance transmission can cause more serious interference. Generally, the interference happens when the transmission distance is over 40 meters.

Technical Specification

Connectors
Link	1 x RJ-45 Female
Computer	1 x USB Type A Male 1 x HDB-15 Male 2 x Mini Stereo Plug
LEDs
Online	1 (Green)
Power	1 (Orange)
Environmental
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Physical Properties
Housing	Plastic
Weight	0.17 kg ( 0.37 lb )
Dimensions (L x W x H)	9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.)
