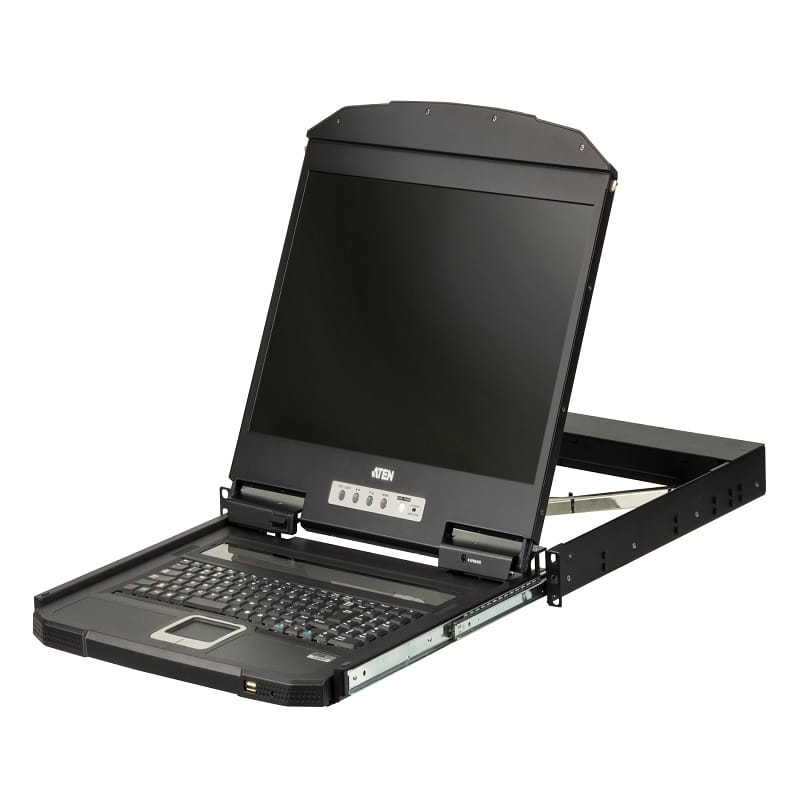

Ultra Short Depth Single Rail WideScreen LCD Console (USB, HDMI)

Ultra Short Depth Single Rail WideScreen LCD Console (USB, HDMI)

Product Code : CL3700

Brand Category : LCD KVM Switches / Consoles

Description

"

  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Console lock – enables the console drawer to remain securely locked away in position when not in use
    • Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3700 and a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy and flexible operation*




  • Remarkable Video Experience
    • Supports HDMI video input
    • The 18.5"" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60Hz for CL3700NW and resolutions of up to 1366 x 768 @ 60Hz for CL3700NX
    • External console supports input video resolutions up to 1920 x 1200 @ 60Hz




  • Installation Flexibility
    • Standard rack mount kit included
    • Optional rack mount kits available including easy installation options*
    • No software required
    • Firmware upgradable
    • Supports hot-plugging




  • Reliability and Operational Versatility
    • Supports an external console with USB / HDMI connectors
    • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
    • Console selection via hotkey
    • Standard 105-key keyboard

      More information about ""Easy Rack Mounting""...

"

Add to Query Cart PDF Download

Technical Specification

Function CL3700NW CL3700NX
Computer Connections
Direct 1 1
Console Selection Hotkey Hotkey

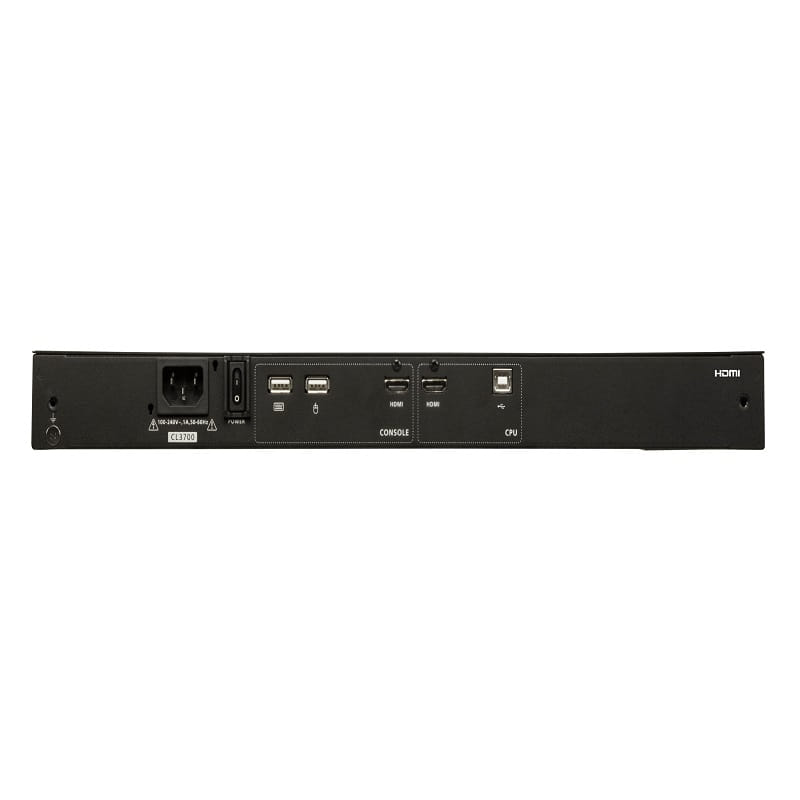

Connectors
KVM Ports 1 x HDMI Female
1 x USB Type B Female		 1 x HDMI Female
1 x USB Type B Female
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black) 1 x 3.5mm Audio Jack Female (Black)
Power 1 x IEC 60320/C14 1 x IEC 60320/C14
External Console Ports 1 x HDMI Female
2 x USB Type A Female		 1 x HDMI Female
2 x USB Type A Female
External Mouse / Peripheral 1 x USB Type A Female (Front) 1 x USB Type A Female (Front)
Switches
Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Power 1 x Rocker Switch 1 x Rocker Switch
LCD Control 4 x Pushbutton 4 x Pushbutton
LCD Power 1 x LED Pushbutton 1 x LED Pushbutton
LEDs
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)		 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)		 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 18.5" TFT-LCD 18.5" TFT-LCD
Resolution 1920 x 1080 @ 60 Hz 1366 x 768 @ 60Hz
Response time 20 ms 5 ms
Viewing Angle 178° (H), 178° (V) 170° (H), 160° (V)
Pixel Pitch 0.213 mm x 0.213 mm 0.3 mm x 0.3 mm
Support Color 16.77M colors 16.77M colors
Contrast Ratio 1000 : 1 1000 : 1
Luminance 350 cd/m⊃2; 250 cd/m⊃2;
Video
Input Video Resolution up to 1920 x 1200 @ 60Hz;
1920 x 1080 @ 60 Hz, DDC2B		 up to 1920 x 1200 @ 60Hz;
1366 x 768 @ 60 Hz, DDC2B
Emulation
Keyboard / Mouse USB USB
Maximum Input Power Rating 100–240 V AC, 50/60 Hz, 1 A 100–240 V AC, 50/60 Hz, 1 A
Power Consumption AC110V:23.3W:124BTU
AC220V:23.9W:127BTU		 AC110V:13.6W:79BTU
AC220V:13.5W:78BTU
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic Metal + Plastic
Rail Type Single Rail Single Rail
Weight 9.01 kg ( 19.85 lb ) 9.03 kg ( 19.89 lb )
Dimensions (L x W x H) 48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)		 48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 43.00 x 4.28 cm 44.92 x 43.00 x 4.28 cm
Note Body Dimensions exclude I/O ports, handles, and mounting brackets. Body Dimensions exclude I/O ports, handles, and mounting brackets.
