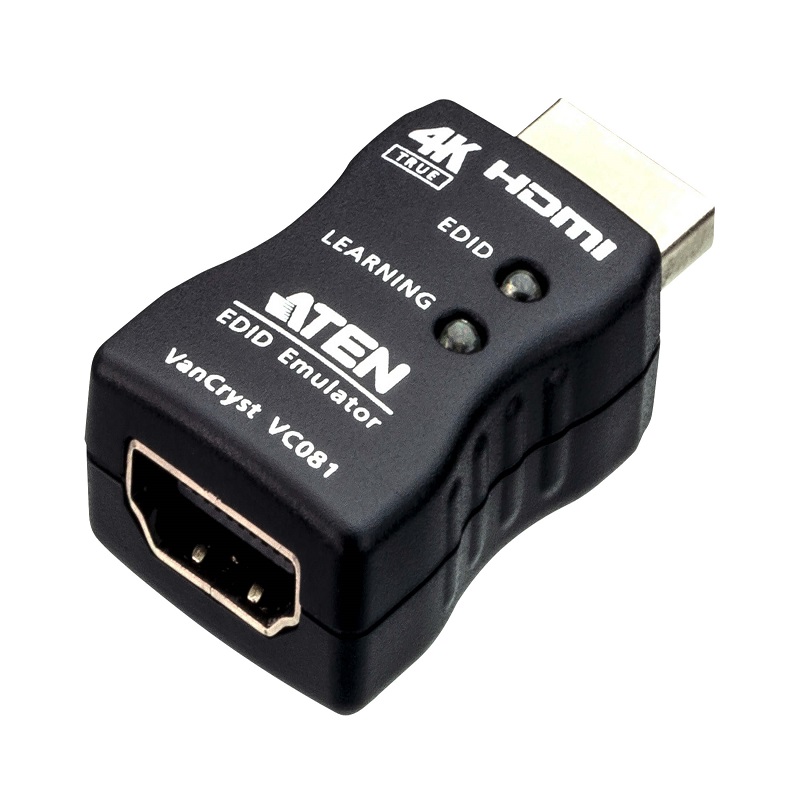

True 4K HDMI EDID Emulator

Product Code : VC081

Brand Category : Video Converters

Description

Manages EDID communication between connected devices
Effectively learn the EDID from the HDMI display and relay it to the video source
HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
Superior video quality – up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
LED indicators to show device status
Powered by HDMI source
Compact and lightweight design

Technical Specification

LEDs
Power	Power status (Green x 1)
Status	Learning (Blue x 1)
Video Input

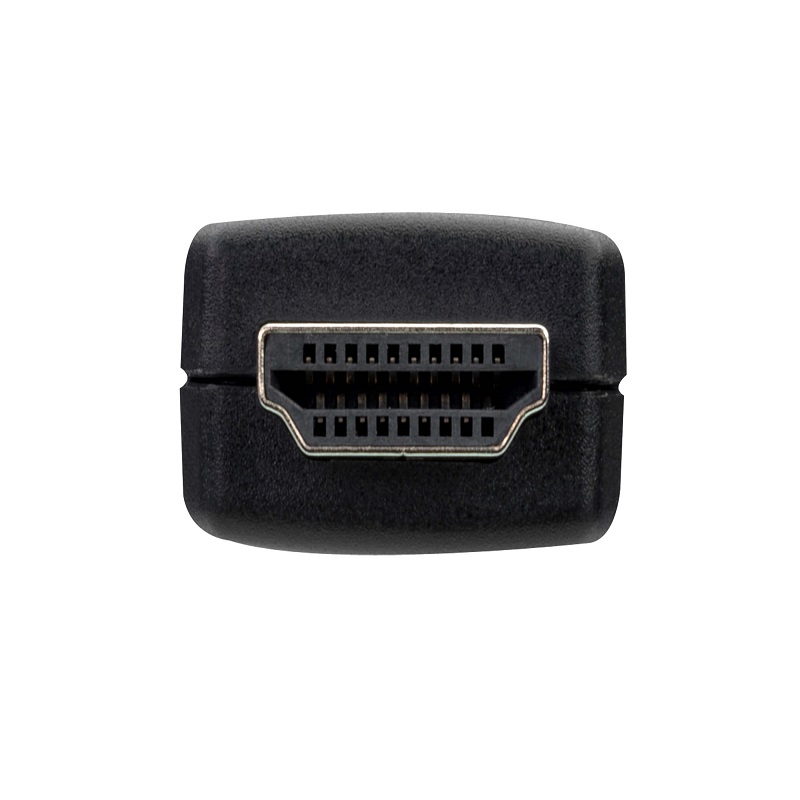

Interfaces	1 x HDMI Type A Male (Black)
Impedance	100 Ω
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video
Compliance	HDMI 2.0 (3D, Deep Color) HDCP 2.2 Compatible Consumer Electronic Control (CEC)
EDID Settings	EDID Mode: Default / Learning
Connectors
Power	Bus-powered (5 VDC from source device)
Power Consumption	DC5V:0.1W:0.4BTU
Environmental
Operating Temperature	0 - 50 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic (ABS)
Weight	0.08 kg ( 0.18 lb )
Dimensions (L x W x H)	4.40 x 2.40 x 1.18 cm (1.73 x 0.94 x 0.46 in.)
Carton Lot	20 pcs
