Single Rail LCD Console (USB, HDMI / DVI / VGA)

Product Code : CL6700

Brand Category : LCD KVM Switches / Consoles

Description

Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700MW)
Integrated KVM console with a 19"" DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700N)
Superior video quality – up to 1920 x 1080 @ 60Hz (CL6700MW); up to 1280 x 1024 @75 Hz (CL6700N)
Supports an external console with USB / DVI / VGA / HDMI connectors (CL6700MW); supports an external console with USB / DVI / VGA connectors (CL6700N)
Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
Audio support (speakers)
Standard rack mount kit included
Optional rack mount kits available including easy installation options
Standard 105-key keyboard; Sun keyboard emulation
Multiplatform support – Windows, Linux, Mac, and Sun
Firmware upgradeable
Console lock - enables the console drawer to remain securely locked away in position when not in use
DDC emulation - video settings of each computer are automatically adjusted for optimal output to the monitor

More information about ""Easy Rack Mounting""...

Technical Specification

Function	CL6700MW	CL6700N
Computer Connections
Direct	1	1
Console Selection	Hotkey	Hotkey

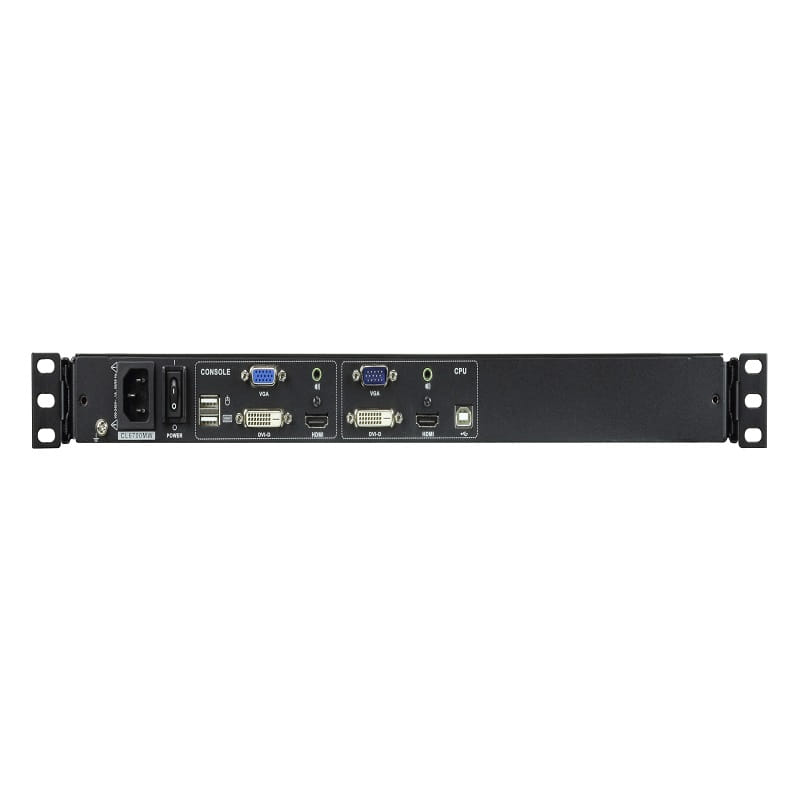

Connectors
KVM Ports	1 x USB Type-B Female 1 x HDMI Female 1 x DVI-D Female (White) 1 x HDB-15 Male (Blue) 1 x 3.5mm Audio Jack Female (Green)	1 x USB Type B Female 1 x DVI-I Female (White) 1 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade	1 x RJ-11 Female	1 x RJ-11 Female
Power	1 x IEC 60320/C14	1 x IEC 60320/C14
External Console Ports	2 x USB Type-A Female 1 x HDMI Female 1 x DVI-D Female (White) 1 x HDB-15 Female (Blue) 1 x 3.5mm Audio Jack Female (Green)	2 x USB Type A Female 1 x DVI-D Female (White) 1 x HDB-15 Female (Blue) 1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral	1 x USB Type A Female (Front)	1 x USB Type A Female (Front)
Switches
Reset	1 x Semi-recessed Pushbutton	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch	1 x Slide Switch
Power	1 x Rocker Switch	1 x Rocker Switch
LCD Control	4 x Pushbutton	4 x Pushbutton
LCD Power	1 x LED Pushbutton	1 x LED Pushbutton
LEDs
Power	1 x KVM Console (Dark Green) 1 x LCD (Orange)	1 x KVM Console (Dark Green) 1 x LCD (Orange)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	17.3" TFT-LCD	19" TFT-LCD
Resolution	1920 x 1080 @ 60 Hz	1280 x 1024 @ 75 Hz
Response time	16 ms	5 ms
Viewing Angle	170° (H), 170° (V)	170° (H), 160° (V)
Pixel Pitch	0.1989 mm x 0.1989 mm	0.294 mm x 0.294 mm
Support Color	16.77M colors	16.77M colors
Contrast Ratio	800 : 1	1000 : 1
Luminance	250 cd/m⊃2;	250 cd/m⊃2;
Video
Input Video Resolution	up to 1920 x 1200 @ 60Hz (all resolution @ 60Hz only); 1920 x 1080 @ 60 Hz, DDC2B	1280 x 1024 @ 75Hz, DDC2B
Emulation
Keyboard / Mouse	USB	USB
Maximum Input Power Rating	100-240V AC; 50-60Hz; 1A	100-240V AC; 50-60Hz; 1A
Power Consumption	AC110V:21.2W:106BTU AC220V:20.8W:104BTU	AC110V:21.2W:106BTU AC220V:20.8W:104BTU
Environmental
Operating Temperature	0–40°C	0–50°C
Storage Temperature	-20–60°C	-20–60°C
Humidity	0-80% RH, Non-condensing	0-80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Rail Type	Single Rail	Single Rail
Weight	11.38 kg ( 25.07 lb )	11.38 kg ( 25.07 lb )
Dimensions (L x W x H)	48.00 x 58.92 x 4.40 cm (18.9 x 23.2 x 1.73 in.)	48.00 x 58.92 x 4.40 cm (18.9 x 23.2 x 1.73 in.)
