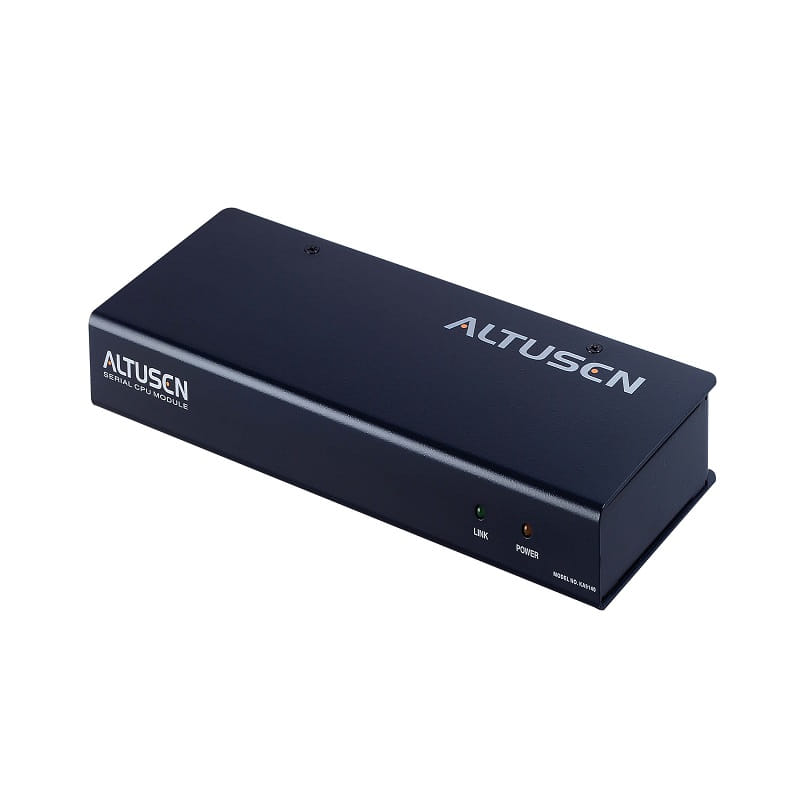

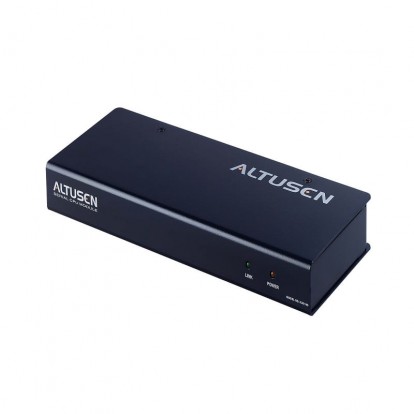

Serial KVM Adapter

Serial KVM Adapter

Product Code : KA9140

Brand Category : KVM Modules & Accessories

Description

"

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances.
  • Hot pluggable - add or remove computers without having to power down the switch.
  • Support VT-100.
  • Lifetime firmware upgrades.
  • Built in ASIC for greater reliability and compatibility.
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (Serial).

"

Add to Query Cart PDF Download

Technical Specification

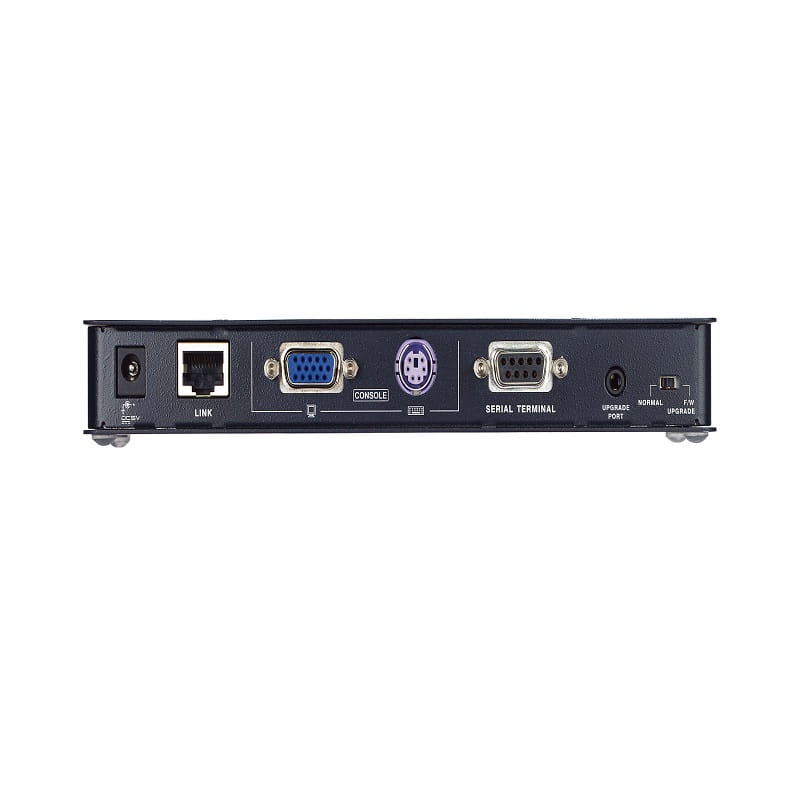

Connectors
Console Ports 1 x RJ-45 Female
1 x Min Din Female
1 x HDB-15 Female
1 x Earphone-Jack-4 Female
Computer 1 x DB-9 Female
LEDs
Power 1 (Orange)
Link 1 (Green)
Switches 1 x 2 way slide switch
Power Consumption DC5V:1.60W:10BTU
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, NC
Physical Properties
Housing Metal
Weight 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 20.00 x 8.15 x 2.50 cm
(7.87 x 3.21 x 0.98 in.)
