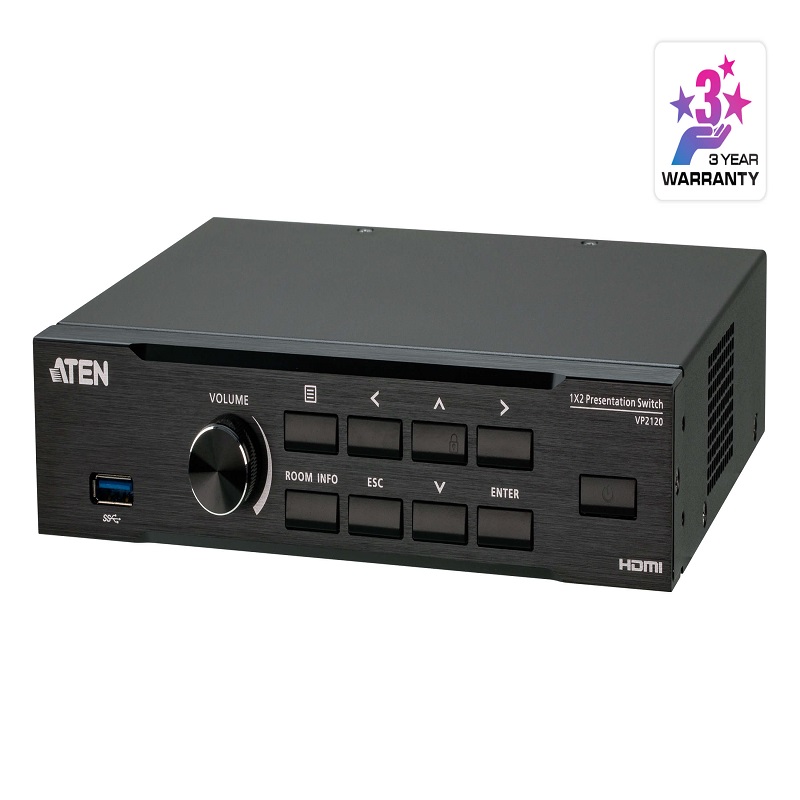

Seamless Presentation Switch with Quad View Multistreaming

Seamless Presentation Switch with Quad View Multistreaming

Product Code : VP2120

Brand Category : Presentation Switches

Description

  • Brilliant AV Routing
    • One HDMI input and dual HDMI outputs plus 4 bi-directional streaming with matrix display support
    • Seamless Switching between streamed-in sources for fast idea exchange
    • Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
    • Audio DSP – mixes Mic input and HDMI input for HDMI or audio output
    • HDMI audio de-embedding support



  • Launch A Quick Meeting Anytime
    • Launches wireless BYOD collaboration via Web GUI and Mobile App in a swift and agile way
    • Offers quick and easy access to log in a quick meeting via multiple methods:
      . Start auto scan and select a room number from the list
      . Scan the QR code shown on the VP2120 OSD
      . Load a pre-saved QR code
      . Input the IP address and Room code shown on the OSD



  • Seamless BYOD Collaboration
    • Multiple control method via front-panel pushbuttons, web GUI, OSD, IR remote, and mobile app
    • Streaming in – view up to 4 streamed-in contents simultaneously for real-time synchronization
    • Streaming out – allows log-in participants to view the Go-live contents on personal devices
    • Attendee audio / video permission can be managed by the host
    • Multi-view mode – the display layout can either be set up by the host or dynamically adjusted to suit the number of sources available
    • Whiteboard allows real-time annotation for idea exchange and synchronization
    • Chat room feature enhances text interaction and information sharing
    • Video capture records the meeting process for future tracking
    • File sharing enables further data sharing and follow-up
    • Supports RTMP for streaming video content to large audience via RTMP compatible sites such as Facebook, Youtube, etc.



  • High-definition Video with Optimum Output
    • Superior video quality up to 1920 x 1080 with single streaming input and 854 x 480 with four streaming inputs
    • EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
    • HDMI (1080p); CEC (Consumer Electronics Control); HDCP 1.4 compliant

Add to Query Cart PDF Download

Technical Specification

Video Input
Interfaces1 x HDMI Type A female (Black)
Video Output
Interfaces2 x HDMI Type A female (Black)
Max. DistanceHDMI: Up to 15m
Video
Max. ResolutionHDMI: Up to 1080p@60Hz
ComplianceHDMI: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)
Audio
InputMicrophone: 1 x mini stereo Jack female (Pink)
OutputStereo Audio: 1 x mini stereo Jack female (Green)
Connectors
Console PortsUSB 3.0: 1 x USB Type A Female (Blue)
Power1 x DC Jack (Black)
Control
IR1 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female (Silver)

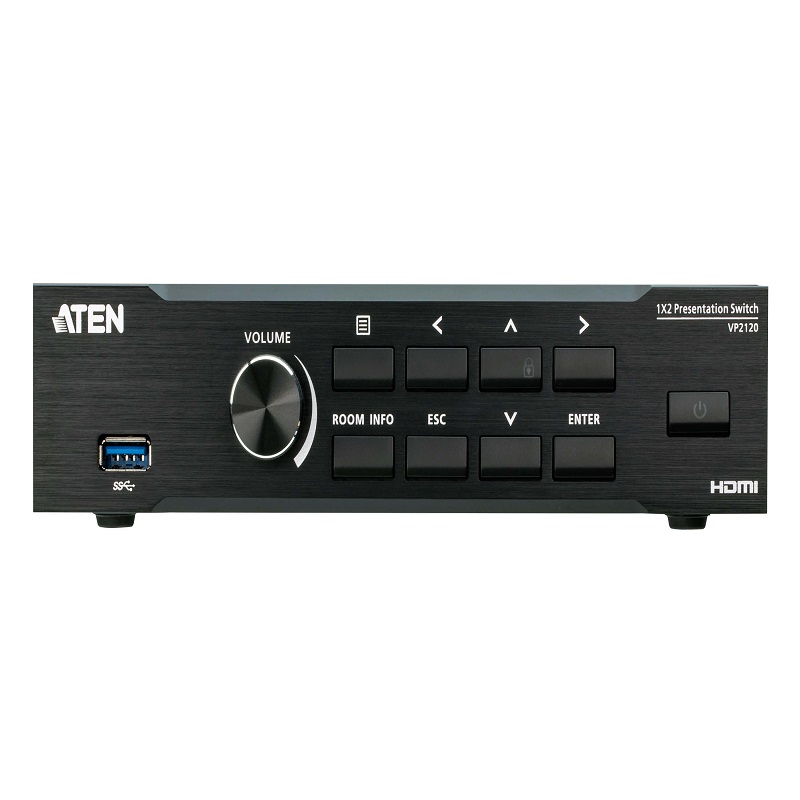

Switches
Power1 x Pushbutton (LED: Green)
SelectionRoom Info: 1 x Pushbutton
Menu: 1 x Pushbutton
Left: 1 x Pushbutton
Right: 1 x Pushbutton
Down: 1 x Pushbutton
Up/Unlock: 1 x Pushbutton
Volume: 1 x Knob
Enter: 1 x Pushbutton
ESC: 1 x Pushbutton
EDID SettingsEDID Mode: ATEN Default / Display A
Power ConsumptionDC12V:14.46W:87BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight1.14 kg ( 2.51 lb )
Dimensions (L x W x H)20.00 x 16.92 x 4.40 cm
(7.87 x 6.66 x 1.73 in.)
Carton Lot3 pc
