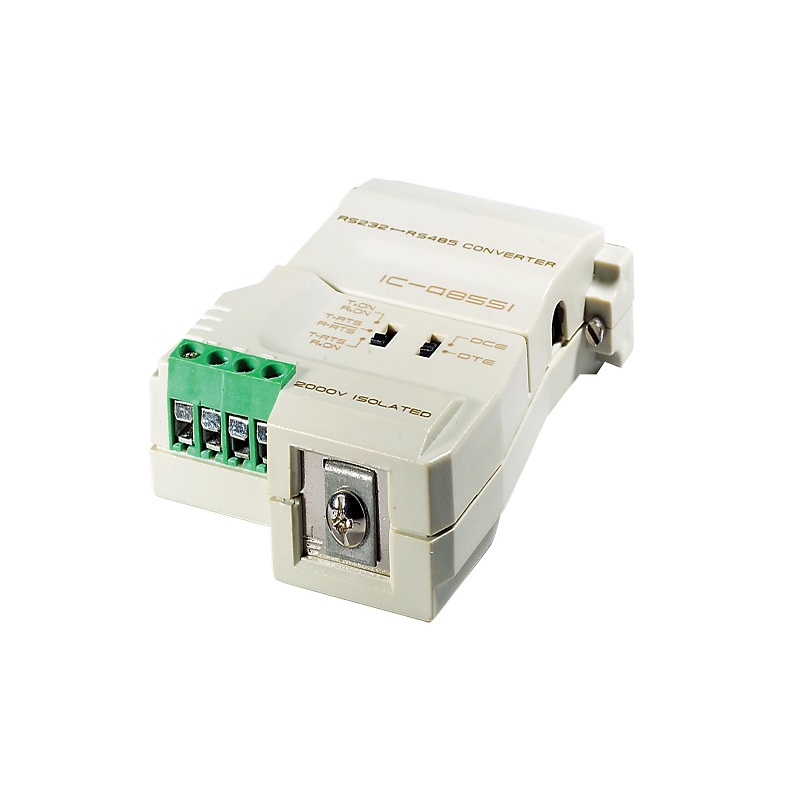

RS-232/RS-485 Interface Converters

RS-232/RS-485 Interface Converters

Product Code : IC485SI

Brand Category : Industry Controls

Description

  • Data transmission controlled by the RTS signal.
  • DCE/DTE selectable.
  • Point to point, multidrop, and simplex/duplex link selection.
  • Four wire full duplex; two wire half duplex.
  • Compact size.
  • Cable distance of up to 1200m (4000 ft.).
  • Signal and power isolation.
  • Supports baud rates up to 115.2Kbps.
  • OS Support: Windows 2000, Windows XP

Add to Query Cart PDF Download

Technical Specification

Connectors1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
Grounding
Tab
SwitchesDCE, DTE
TxON, RxON
TxRTS, RxRTS
TxRTS, RxON
Power ConsumptionDC9V:0.81W:4BTU
Signal Range1200 m [4000'] (Max)
Data RateUp to 100 Kbps under 1200 m [4000']
Environmental
Operating Temperature0 ~50˚C
Storage Temperature-20 ~ 60˚C
Humidity0~80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.06 kg ( 0.13 lb )
Dimensions (L x W x H)7.90 x 5.45 x 2.10 cm
(3.11 x 2.15 x 0.83 in.)
