RS-232/Contact to USB Keyboard Converter

Product Code : VK211

Brand Category : Control System

Description

Converts RS-232 commands to full-range USB keyboard signals for remote control over USB keyboard-based devices such as KVMs and PCs
Recalls the stored key codes and allows storage of up to 4 preset actions triggered via Contact In signals
Local USB console ports for keyboard / mouse connection
On-panel priority control push button for local operators to manage remote access in case of emergencies
LEDs indicate the status of digital input signals, priority control, and power at a glance
No extra power required by utilizing the connection with USB devices
Learn mode eases the setup procedure and configurations
Compatible with ATEN KVMs*

Note: Please click here to see the supported ATEN KVM models

Technical Specification

Connectors

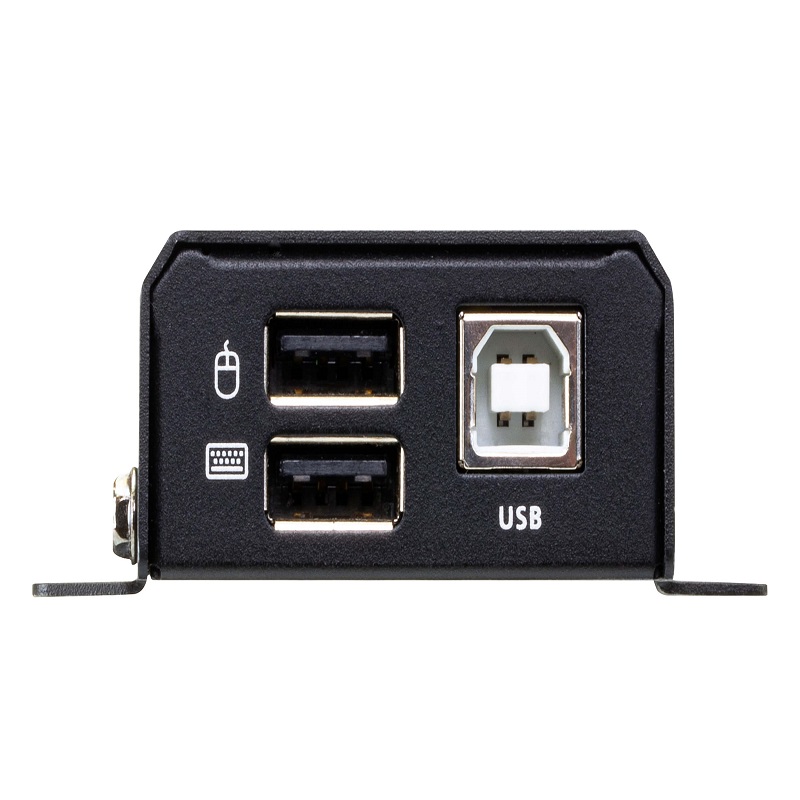

Console Ports	2 x USB Type A Female
Device Ports	1 x USB Type B Female

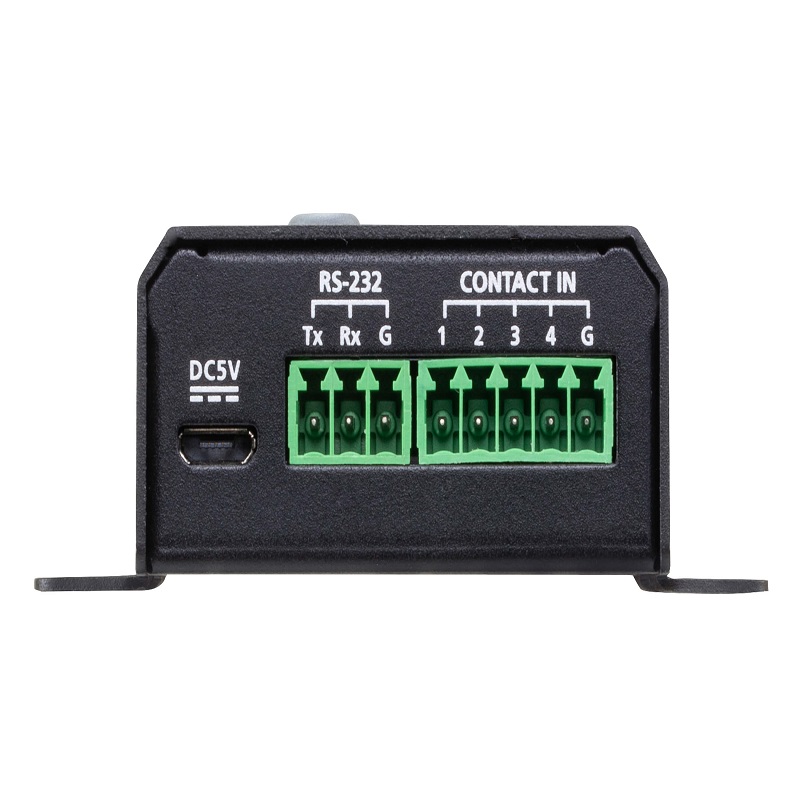

RS-232	1 x Bi-directional RS-232 port (1 x 3-Pole Terminal Block) Baud Rate: 19200 Data Bit: 8 Stop Bit: 1 Parity: None
Contact In	4 x Contact Closure Input ports (1 x 5-Pole Terminal Block)
Power (Optional)	1 x USB Micro B Female
Priority Button	1 x Pushbutton Toggle switch for remote control. Hold & press for 3 seconds to enter learning mode
LEDs
Contact In	4 (Green)
Power	1 (Green)
Priority	1 (Orange)
Power Consumption	DC5V:0.69W:7BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.15 kg ( 0.33 lb )
Dimensions (L x W x H)	8.20 x 7.30 x 2.62 cm (3.23 x 2.87 x 1.03 in.)
