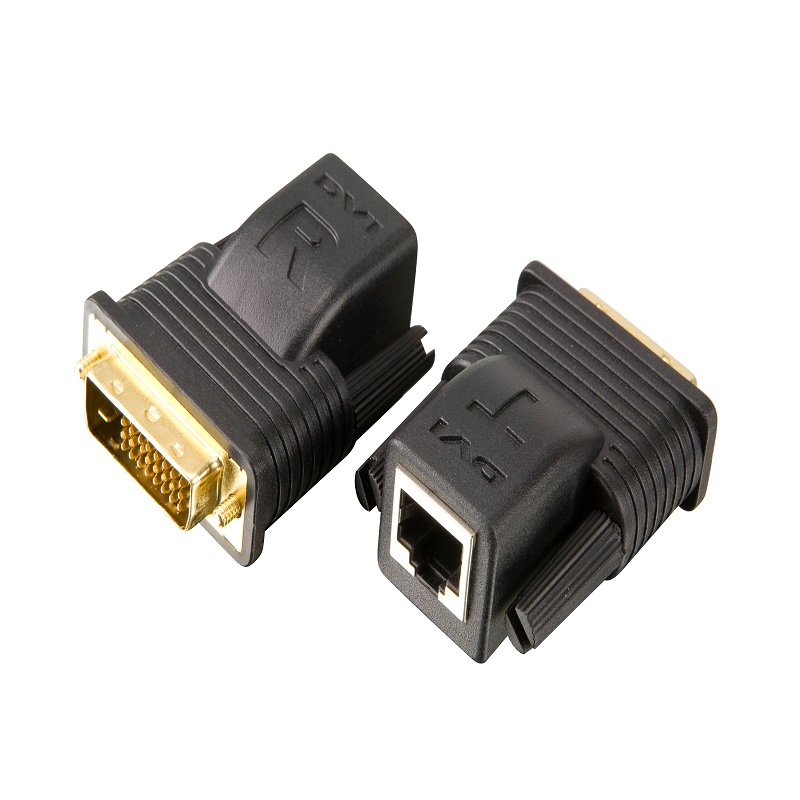

Mini Cat 5 DVI Extender (1080p @ 15m/1080i @ 20m)

Mini Cat 5 DVI Extender (1080p @ 15m/1080i @ 20m)

Product Code : VE066

Brand Category : Video Extenders

Description

  • Extends the distance between DVI source and DVI display
  • Uses Cat 5e cable to connect the Transmitter and Receiver units
  • Long distance transmission - up to 1080i @ 20 m; 1080p @ 15 m*
  • HDCP 1.1 Compliant
  • Supports hot-plugging
  • Compact housing
  • Compatible with all ATEN DVI switches and DVI splitters
  • Supports LCD Screen, Plasma TV, and projectors
  • Perfect for Home entertainment system, Bank, Surveillance system, Outdoors multimedia display, Airport, Finance institution
  • Smart Video Display - Image quality is optimized based on the available resolution of the output device
  • Non-Powered

    *Note: For optimal resolution of 1920 x 1200, its true effective transmission distance may be shorter depending on the installation site. Using different source / display devices will result in varying results. For best results, we recommend using high-quality cables.

Add to Query Cart PDF Download

Technical Specification

FunctionVE066RVE066T
Physical Properties
Weight0.05 kg ( 0.11 lb )0.05 kg ( 0.11 lb )
Dimensions (L x W x H)5.66 x 4.07 x 2.15 cm
(2.23 x 1.6 x 0.85 in.)		5.66 x 4.07 x 2.15 cm
(2.23 x 1.6 x 0.85 in.)
HousingPlasticPlastic
Carton Lot20 pcs20 pcs
Video Input
InterfacesN/A1 x DVI-D Male (Gold)
ImpedanceN/A100 Ω
Video Output
Interfaces1 x DVI-D Male (Gold)N/A
Impedance100 ΩN/A
Video
Max. Data Rate4.95 Gbps (1.65 Gbps Per Lane)4.95 Gbps (1.65 Gbps Per Lane)
Max. Pixel Clock165 MHz165 MHz
ComplianceHDCP CompatibleHDCP Compatible
Max. Resolutions / DistanceUp to 1080P@15m; 1080i@20mUp to 1080P@15m; 1080i@20m
Environmental
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
