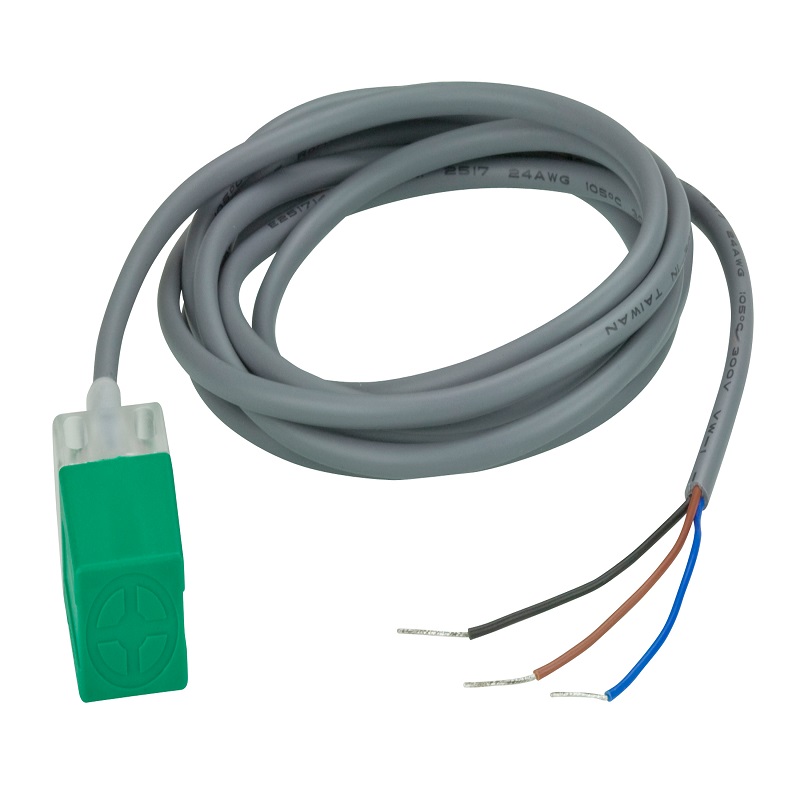

Product Code : EA1441
Brand Category : Accessories
| Operating voltage | 10-30 VDC |
| Ripple of power | 20% peak to peak |
| Current Consumption | 10 mA(Max) |
| Sensing distance | 5.0 mm |
| Hysteresis | 10% of sensing distance max |
| Response frequency | 800 Hz(Min) |
| Output method | PNP |
| Output current | 150 mA(Max) |
| Residual voltage | 0.1 V(max) |
| Leakage current | 0.8 mA(Max) |
| Protection circuit | Short circuit & polarity reversed protection |
| Connection | 3c/4.0 |
| Dielectric strength | 2.5 kv / 1 minute(Min) |
| Insulation strength | 100 MΩ / 500 VDC |
| Environmental | |
| Operating Temperature | -20°C-80°C |
| Humidity | 35%-95% RH |
| Protection class | IP-67 |
