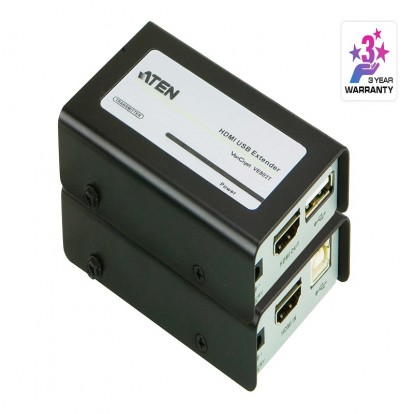

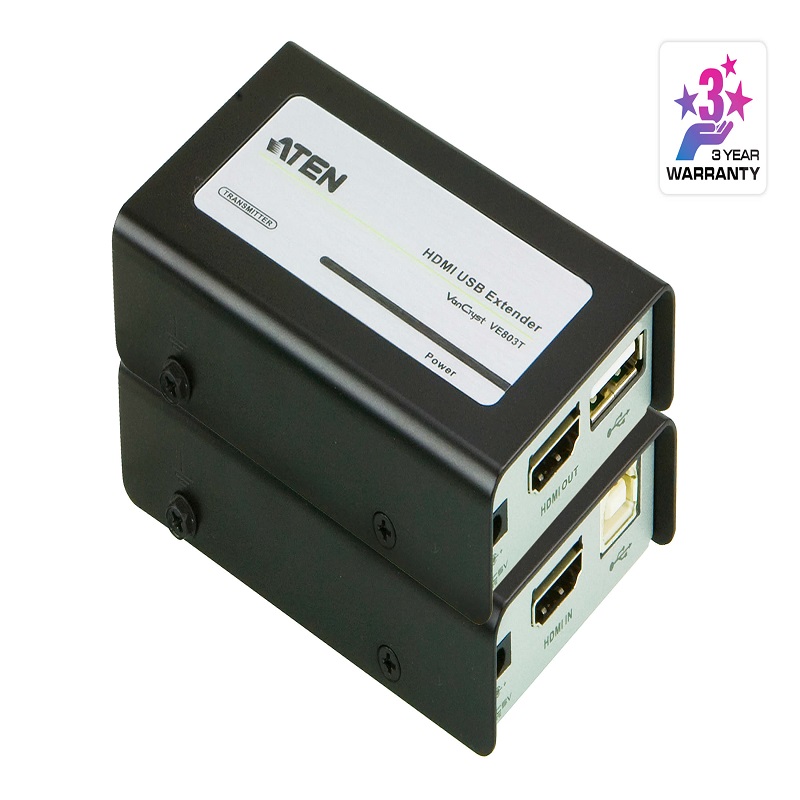

HDMI/USB Cat 5 Extender (1080p@40m)

Product Code : VE803

Brand Category : Video Extenders

Description

Uses two Cat 5e cables to connect the local and the remote units
Extends 1080p by 40m; extend 1080i by 60m
Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
Supports USB touch panel
8 segment equalization adjustment switch optimizes display quality
Support Dolby True HD and DTS HD Master Audio
Built-in 8KV/15KV ESD protection
Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps)
Supports wide screen formats
HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25Gbits
Powered local unit via USB cable

Technical Specification

Function	VE803R	VE803T
Video Input
Interfaces	N/A	1 x HDMI Type A Female (Black)
Impedance	N/A	100 Ω
Max. Distance	N/A	3 m
Video Output
Interfaces	1 x HDMI Type A Female (Black)	N/A
Impedance	100 Ω	N/A
Max. Distance	3 m	N/A
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP Compatible	HDMI (3D, Deep Color) HDCP Compatible
Max. Resolutions / Distance	Up to 1080p@40m; 1080i@60m	Up to 1080p@40m; 1080i@60m
Audio
Input	N/A	1 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)	N/A
Control

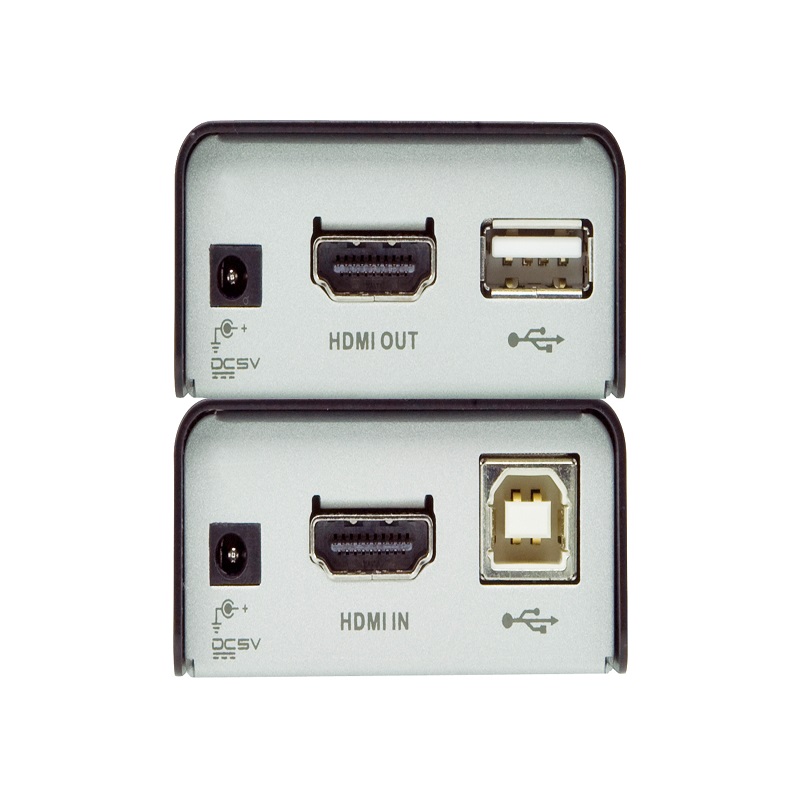

USB	1 x USB Type A Female	1 x USB Type B Female
EDID Settings	EDID Mode: Default	EDID Mode: Default
Connectors
Power	1 x DC Jack	1 x DC Jack
Power Consumption	DC5V:0.75W:14BTU	DC5V:1.04W:16BTU
Environmental
Operating Temperature	0 - 50°C	0 - 50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal	Metal
Weight	0.16 kg ( 0.35 lb )	0.16 kg ( 0.35 lb )
Dimensions (L x W x H)	9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.)	9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.)
Carton Lot	5 pcs	5 pcs
