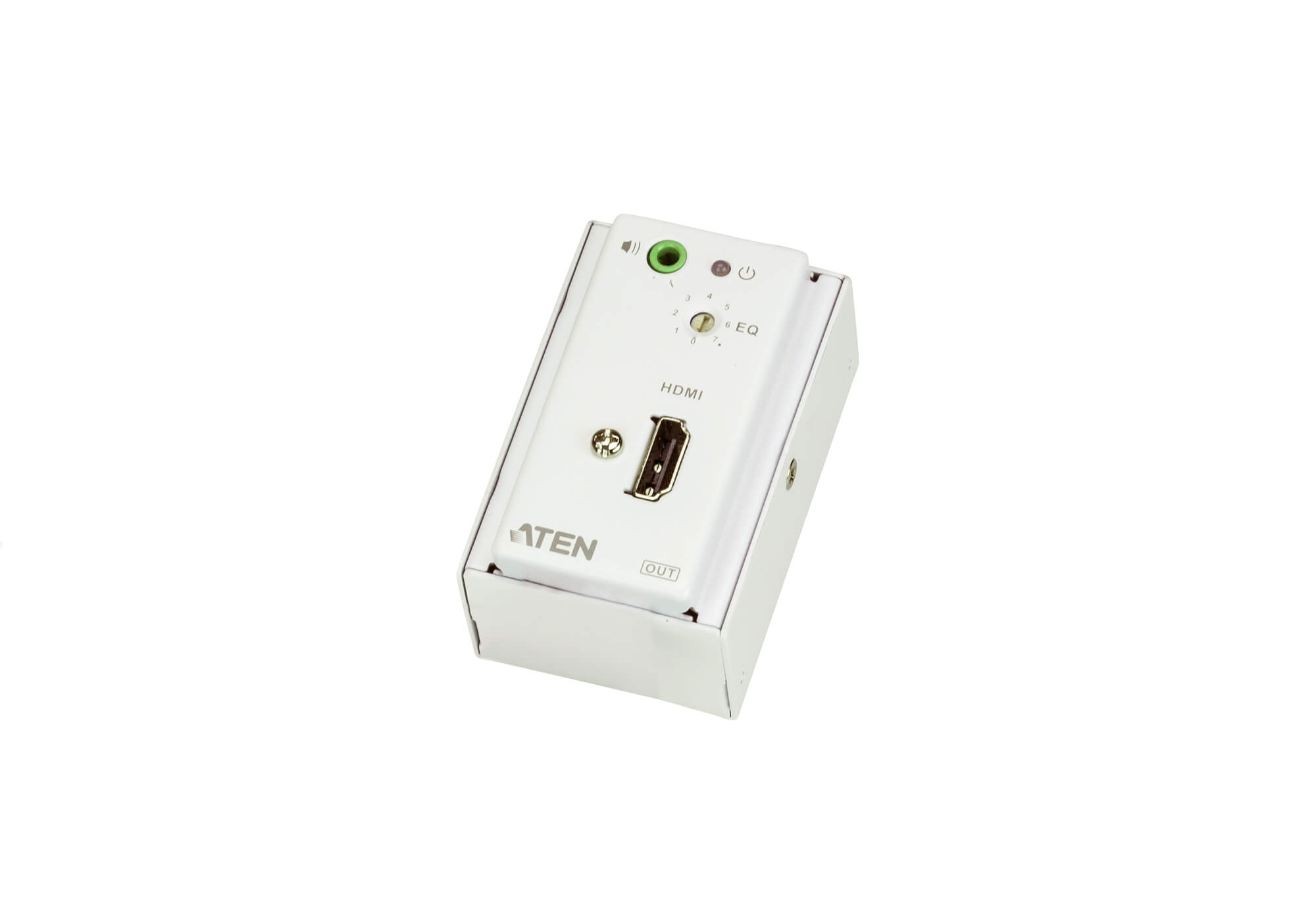

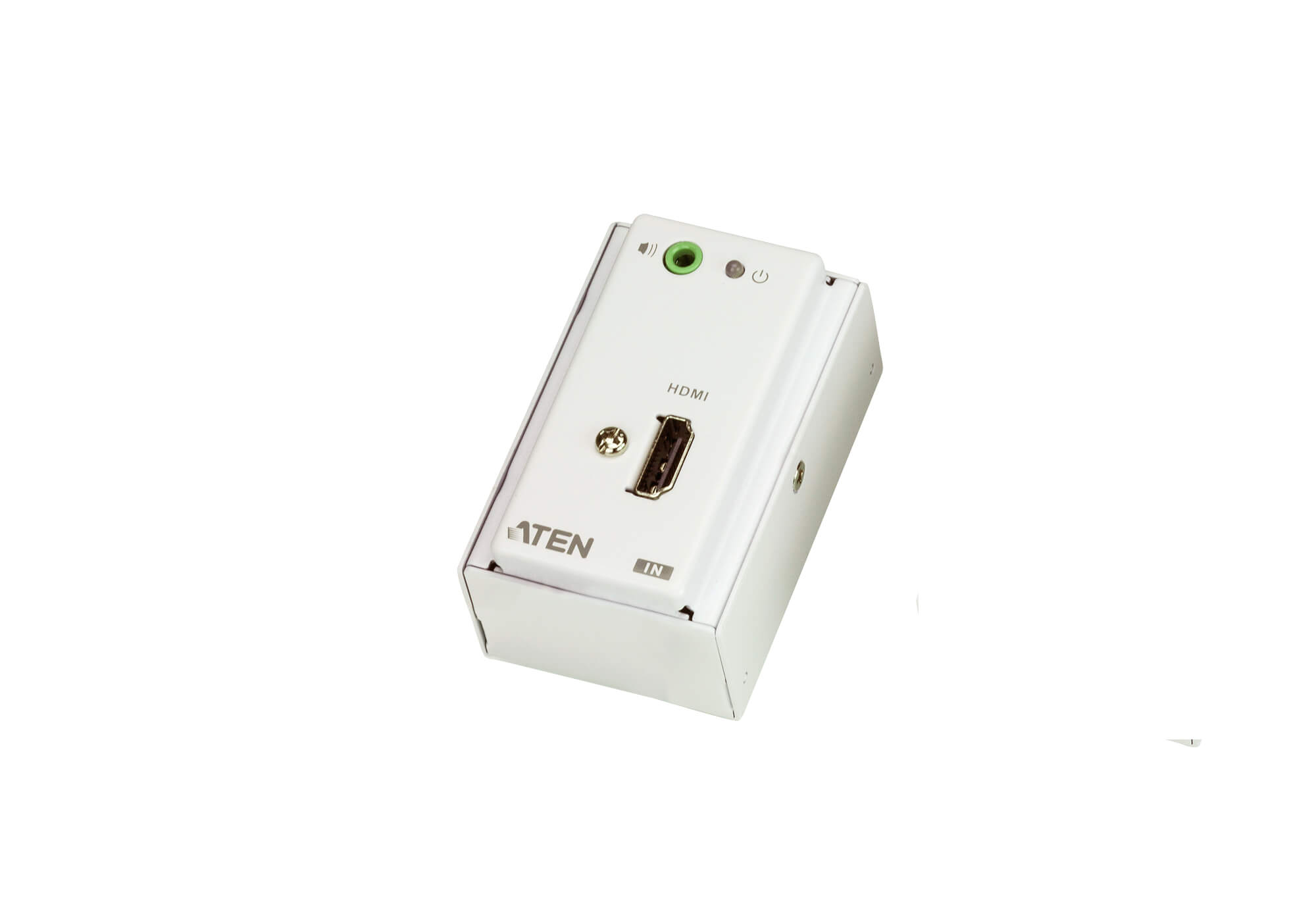

HDMI/Audio Cat 5 Extender with MK Wall Plate (1080p @ 40m)

Product Code : VE807

Brand Category : Video Extenders

Description

Uses two Cat 5e/6 cables to connect the local and remote units - one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
Remotely powered from either the transmitter or receiver side**
Extends the distance between HDMI source and display
Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m
Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
HDMI (3D, Deep Color); HDCP compatible
Supports 8 segment equalization adjustment via switch
Supports widescreen formats
Supports hot- plugging
Supports stereo audio
Built- in 8KV/ 15 KV ESD protection
Plug- and- play with no software installation required
LED indication of power sources / connection status
* A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver
**A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit

Technical Specification

Function	VE807R	VE807T
Video Input
Interfaces	N/A	1 x HDMI Type A Female (Black)
Impedance	N/A	100 Ω
Max. Distance	N/A	3 m
Video Output
Interfaces	1 x HDMI Type A Female (Black)	N/A
Impedance	100 Ω	N/A
Max. Distance	3 m	N/A
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP Compatible	HDMI (3D, Deep Color) HDCP Compatible
Max. Resolutions / Distance	Up to 1080p@40m; 1080i@60m	Up to 1080p@40m; 1080i@60m
Audio
Input	N/A	1 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)	N/A
Connectors
Power	1 x Terminal Block (Green)	1 x Terminal Block (Green)
Power Consumption	DC9V:0.81W:4BTU	DC9V:1.35W:6BTU
Environmental
Operating Temperature	0 - 50°C	0 - 50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0-80% RH, Non-Condensing	0-80% RH, Non-Condensing
Physical Properties
Housing	Metal	Metal
Weight	0.18 kg ( 0.4 lb )	0.18 kg ( 0.4 lb )
Dimensions (L x W x H)	6.86 x 4.44 x 4.00 cm (2.7 x 1.75 x 1.57 in.)	6.86 x 4.44 x 4.00 cm (2.7 x 1.75 x 1.57 in.)
Faceplate Dimensions (L x W x H)	8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)	8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
Carton Lot	5 pcs	5 pcs
