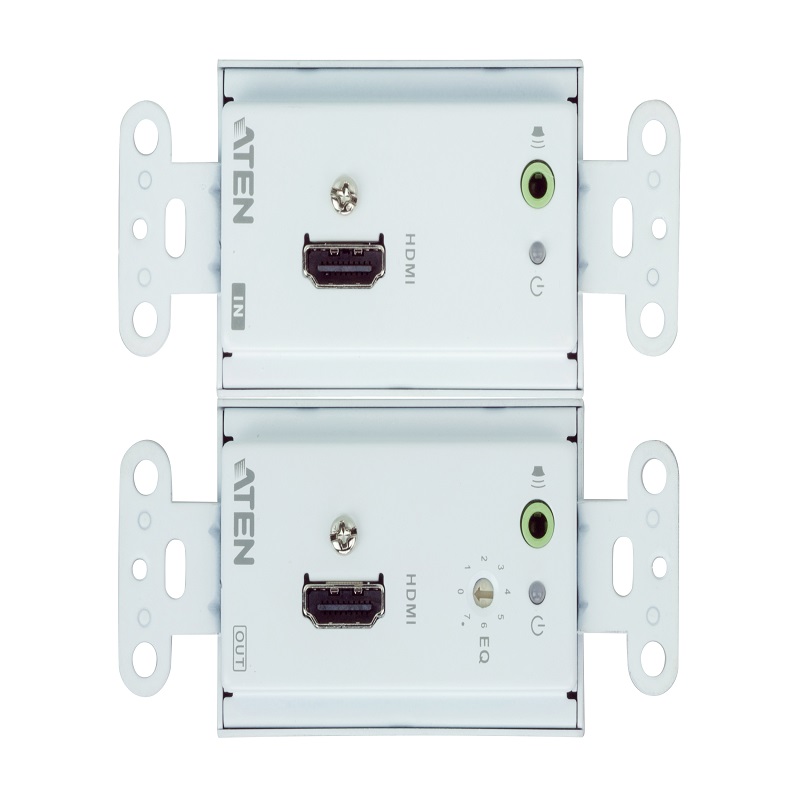

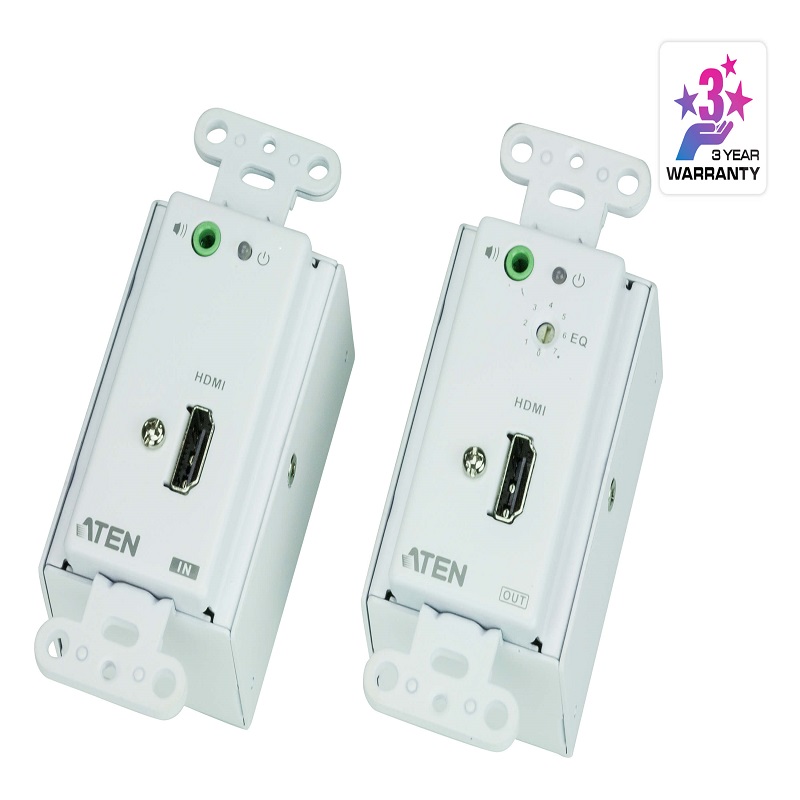

HDMI/Audio Cat 5 Extender Wall Plate (US) (1080p@40m)

Product Code : VE806

Brand Category : Video Extenders

Description

Uses two Cat 5e cables to connect the local and remote units - one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
Remotely powered from either the Transmitter or Receiver side **
Extends the distance between HDMI source and HDMI display
Superior video quality – up to 1080p@60Hz (40m), 1080i@60Hz (60m)
HDMI (3D, Deep Color); HDCP Compatible
8 segment equalization adjustment switch optimizes display quality
Supports widescreen format
Supports hot-plugging
Decora type design is easily configurable to fit various wall plates
LED indication of power sources / connection status
Supports stereo audio
Built-in 8KV/15KV ESD protection
Easy installation
Wall mountable type for a neat and cleaner installation
Plug-and-play – no software installation required

Note:
*The second Cat 5e cable connection is required to remotely power on either the Transmitter or Receiver.
**A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit.

Technical Specification

Function	VE806R	VE806T
Video Input
Interfaces	N/A	1 x HDMI Type A Female (Black)
Impedance	N/A	100 Ω
Max. Distance	N/A	3 m
Video Output
Interfaces	1 x HDMI Type A Female (Black)	N/A
Impedance	100 Ω	N/A
Max. Distance	3 m	N/A
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP Compatible	HDMI (3D, Deep Color) HDCP Compatible
Max. Resolutions / Distance	Up to 1080p@40m; 1080i@60m	Up to 1080p@40m; 1080i@60m
Audio
Input	N/A	1 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)	N/A
Connectors
Power	1 x Terminal Block (Green)	1 x Terminal Block (Green)
Power Consumption	DC9V:2.28W:11BTU	DC9V:2.33W:11BTU
Environmental
Operating Temperature	0 - 50°C	0 - 50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0-80% RH, Non-Condensing	0-80% RH, Non-Condensing
Physical Properties
Housing	Metal	Metal
Weight	0.17 kg ( 0.37 lb )	0.17 kg ( 0.37 lb )
Dimensions (L x W x H)	10.41 x 4.44 x 4.00 cm (4.1 x 1.75 x 1.57 in.)	10.41 x 4.44 x 4.00 cm (4.1 x 1.75 x 1.57 in.)
Carton Lot	5 pcs	5 pcs
