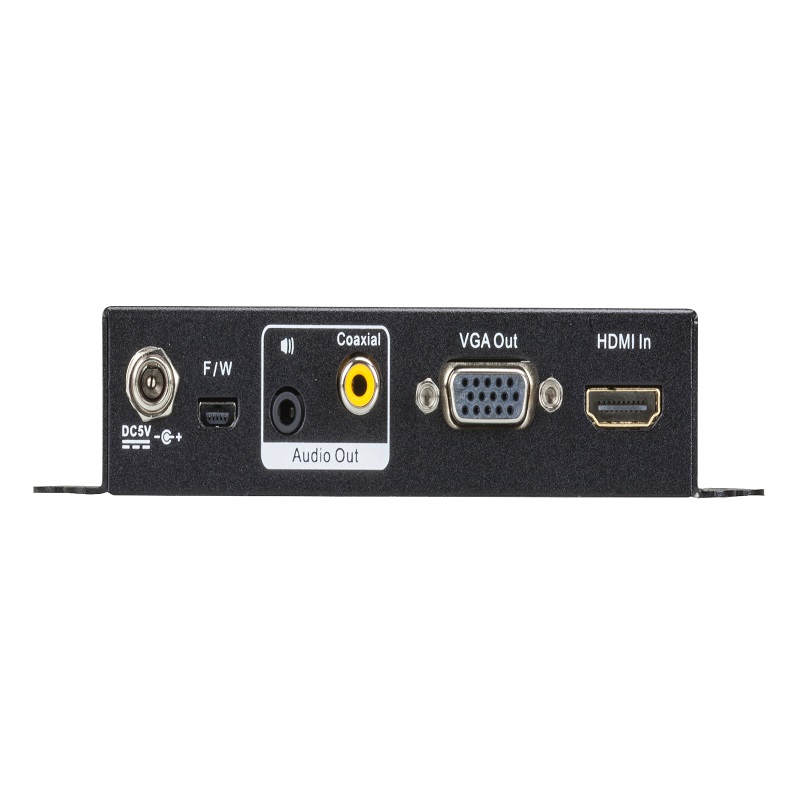

HDMI to VGA/Audio Converter with Scaler

Product Code : VC812

Brand Category : Video Converters

Description

Converts HDMI signals to VGA output
Supports analog/digital audio
Superior video quality – up to 1080p; 1920 x 1200
Features a built in high-performance scaler function for best image quality
Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
Features a superior de-interlacer function for smooth video playback quality
Built-in OSD function for video and system settings configuration
Integrated superior video noise reduction
Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
Automatically detects video input signals

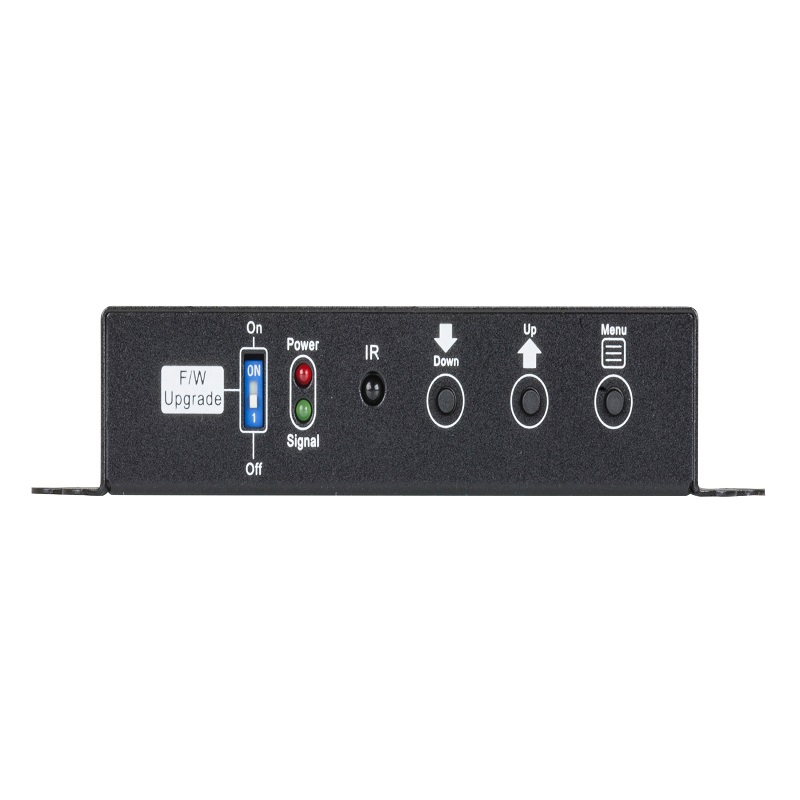

LED indication of power status and source device
No software required – eliminates incompatibility and installation issues
Note: The VC812 does not support HDCP

Technical Specification

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video Output
Interfaces	1 x HDB-15 Female (Black)
Impedance	75 Ω
Video
Max. Pixel Clock	165 MHz
Max. Resolution	Up to 1920 x 1200
Scaler Resolutions	480p; 576p; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200
Audio
Output	Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:2.125WBTU
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 - 60 ºC
Humidity	20 - 90% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.29 kg ( 0.64 lb )
Dimensions (L x W x H)	11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.)
Carton Lot	5 pcs
