HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m)

HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A)

Product Code : VE2812PR

Brand Category : Video Extenders

Description

Transmits 4K HDMI up to 100 m / 330 ft via a Cat 5e / 6 / 6a or ATEN 2L-2910 Cat 6 cable
Transmits HDMI up to 150 m / 492 ft. @ 1080p in HDBaseT Long Reach Mode
Bi-directional PoH :
- allows a PoH PD-enabled Tx to be remotely powered by the locally powered VE2812PR
- enables power distribution from a PoH PSE-enabled Tx to the VE2812PR over the cable
Audio de-embedding – extracts audio stream from the HDMI source and delivers as a separate audio from HDMI to Coaxial S/PDIF, or Stereo audio output
Supports Audio EDID Switching (2ch Stereo, 5.1ch Surround sound, and AUTO)
RS-232 serial communication switch – switch between command mode and bypass mode for various application requirements
Supports bi-directional IR signal transmission (IR transmission is processed one direction at a time)
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Firmware upgradable
Built- in 8KV / 15 KV ESD protection
Plug-and-play
Rack-mountable using the VE-RMK1U

Technical Specification

Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3 m
Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Max. Resolution	*4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
Audio
Output	1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x SPDIF Coaxial Female (Orange)
Control
RS-232 Channel	Connector: 1 x Terminal Block, 3 pole; Type: DTE Baud Rate: 115200, Data Bits:8, Stop Bits:1, no parity and flow control
IR Channel	1 x Mini Stereo Jack Female (Black), bi-directional full range IR bypass channel
Switches
Power Selected	1 x Slide Switch - POH Power Selection: PSE / PD
HDMI Mute	1 x Slide Switch - HDMI Audio ON/OFF
Audio EDID Selection	1 x Slide Switch - Audio Output Format Selection: 2ch / 5.1ch / AUTO
Mode Selection	1 x Slide Switch - RS-232 Bypass or Command mode Selection
Long Reach Mode Switch	1 x Slide Switch - Long Reach mode ON/OFF
Firmware Upgrade	1 x Slide Switch - Firmware Upgrade mode ON/OFF
Connectors

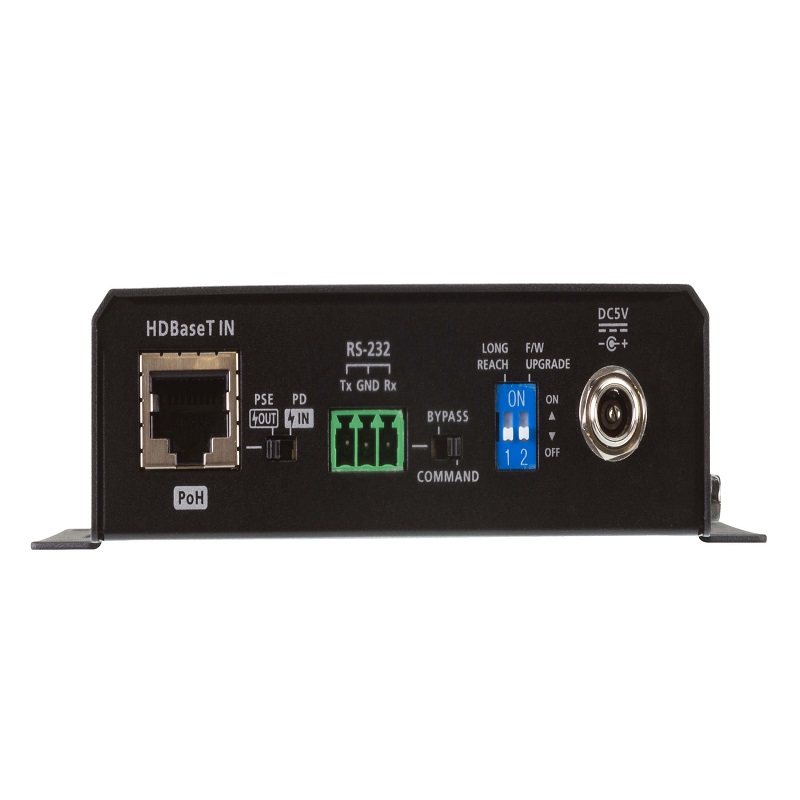

Unit To Unit	1 x RJ-45 Female
Power	1 x DC Jack (Black) with locking 1 x RJ-45 Female, POH PD & PSE supported
Power Consumption	DC5V:5.83W:27BTU POH:7.28W:34BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.50 kg ( 1.1 lb )
Dimensions (L x W x H) with bracket	14.53 x 12.30 x 3.00 cm (5.72 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket	13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
