"HDMI HDBaseT-Lite Receiver with Scaler (1080p@70m) (HDBaseT Class B)"

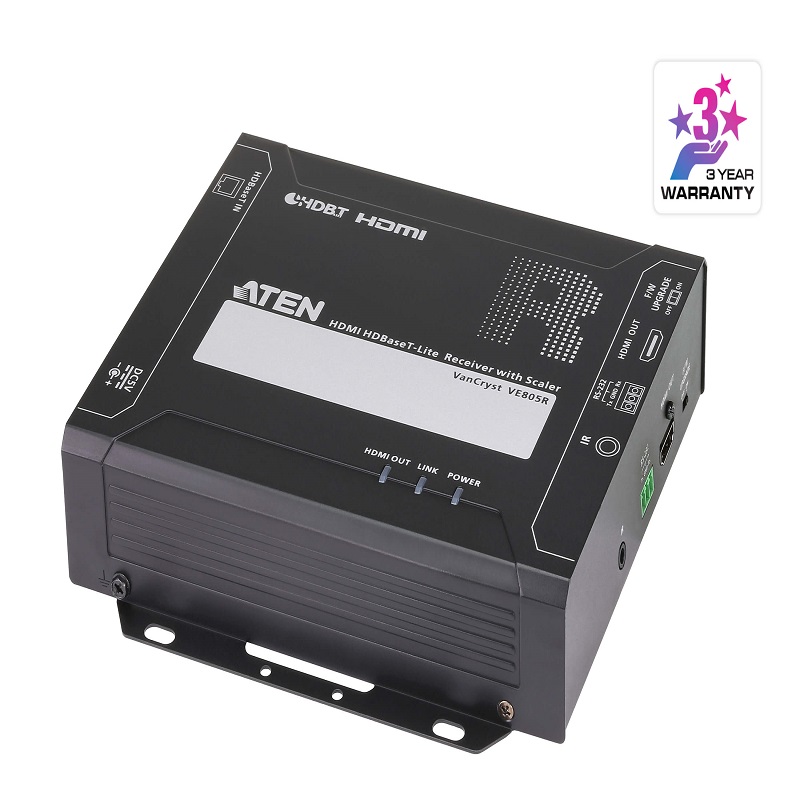

HDMI HDBaseT-Lite Receiver with Scaler (1080p@70m) (HDBaseT Class B)

Product Code : VE805R

Brand Category : Video Extenders

Description

HDBaseT connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6/6a cable
HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
Bi-directional RS-232 channel¹ – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions²
Video Wall – features configurable Video Wall profiles available for custom screen layouts via simple point-n-click web GUI²
Bi-directional IR channel – IR transmission is processed one direction at a time³
Rack-mountable

Note:
1. Bi-directional RS-232 channel only available when VE805R is used with the VM8514.
2. The Seamless SwitchTM and Video Wall functions are available when the VE805R is used with the VM8514.
3. Supports full frequency IR signals from 30KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz.

Technical Specification

Video Input
Interfaces	1 x RJ-45 Female (Silver)
Impedance	100 Ω
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3 m
Video
Max. Data Rate	6.75 Gpbs (2.25 Gbps per lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible HDBaseT Compatible
Max. Resolutions / Distance	Up to 1080p @60m (Cat 5e/6); 70m (Cat 6a)

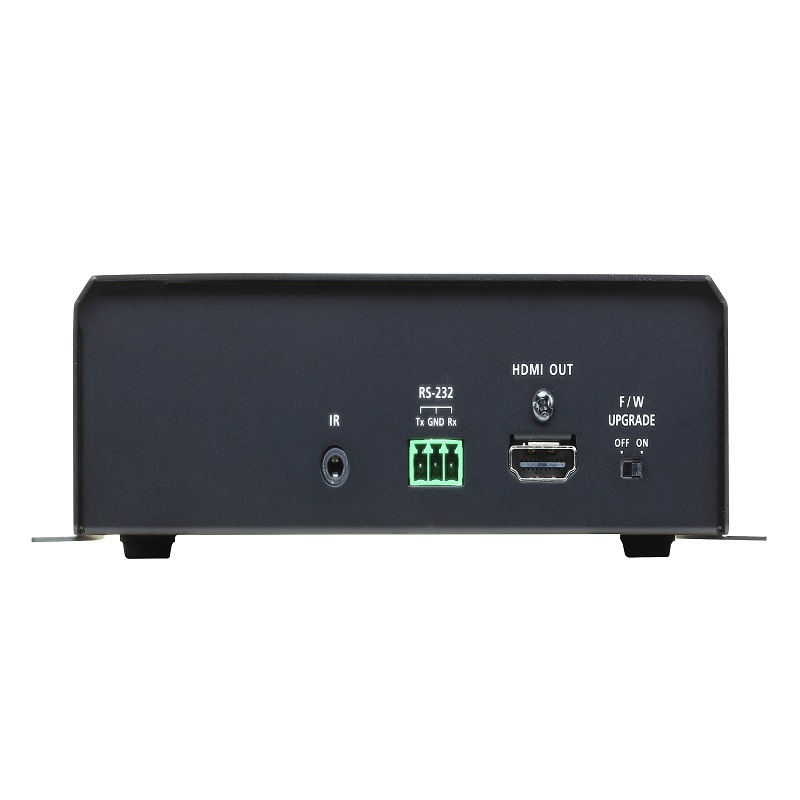

Control
RS-232	1 x Captive Screw Connector, 3 Pole
IR	1 x Mini Stereo Jack Female (Black)
Connectors
Power	1 x DC Jack (Sliver)
Switches
Firmware Upgrade	1 x Slide Switch
Power Consumption	DC5V:8.36W:39BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.81 kg ( 1.78 lb )
Dimensions (L x W x H)	17.74 x 16.92 x 4.20 cm (6.98 x 6.66 x 1.65 in.)
