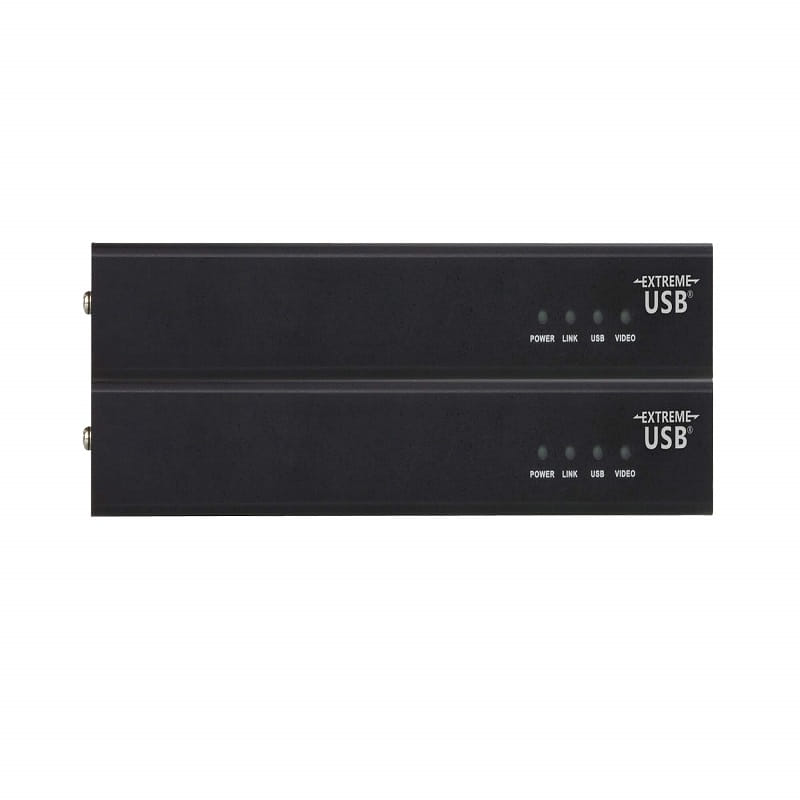

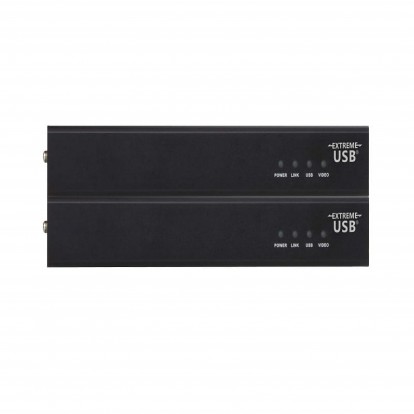

DVI HDBaseT KVM Extender with ExtremeUSB® (1920 x 1200 @ 100m)

DVI HDBaseT KVM Extender with ExtremeUSB® (1920 x 1200 @ 100m)

Product Code : CE610A

Brand Category : KVM EXTENDER

Description

"

  • Uses a single Cat 5e cable to connect the local and remote units
  • Allows access to a computer or KVM installation from a remote console
  • Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
  • Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
  • ExtremeUSB ® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
  • Supports USB 1.1 web cameras
  • USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel other USB devices which require moderate amounts of bandwidth
  • Extends local PC Video/Keyboard/Mouse to remote side
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Works with all major operating systems: Windows®, OS X®, and Linux®

    *Note: The CE610A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices.

"

Add to Query Cart PDF Download

Technical Specification

Function CE610AL CE610AR

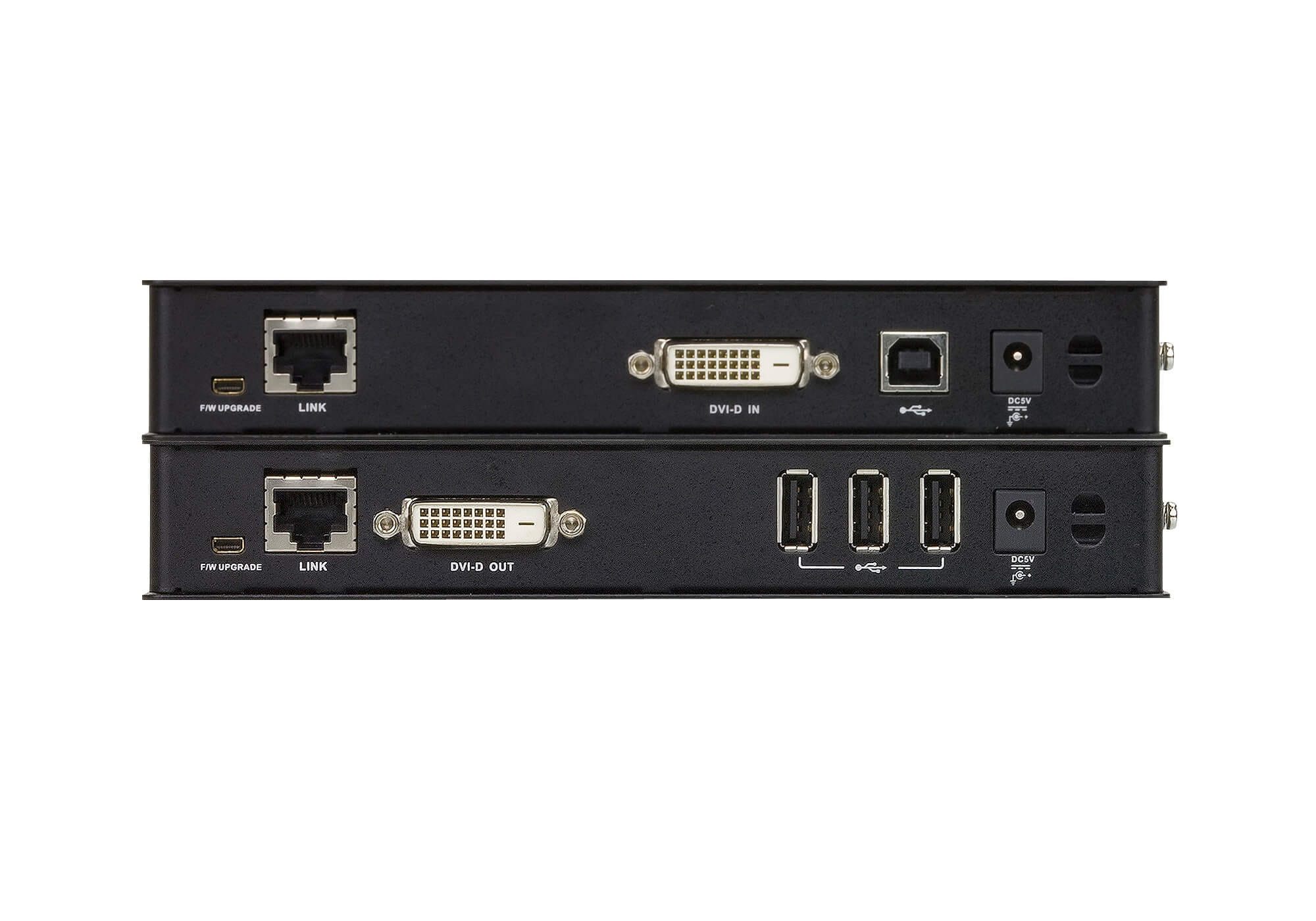

Connectors
Video In 1 x DVI-D Female (White) N/A
Video Output N/A 1 x DVI-D Female (White)
Power 1 x DC Jack 1 x DC Jack
Firmware Upgrade 1 x mini-USB 1 x mini-USB
USB Port 1 x USB Type B Female (White) 3 x USB Type A Female (White)
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Green) 1 (Green)
USB 1 (Green) 1 (Green)
Video 1 (Green) 1 (Green)
USB USB 2.0 (Transfer Rate: Up to 40Mbps) USB 2.0 (Transfer Rate: Up to 40Mbps)
Video 1920 x 1200 @ 60Hz (100 m) 1920 x 1200 @ 60Hz (100 m)
Power Consumption DC5V:1.99W:41BTU DC5V:3.95W:50BTU
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.62 kg ( 1.37 lb ) 0.62 kg ( 1.37 lb )
Dimensions (L x W x H) 18.20 x 11.79 x 2.87 cm
(7.17 x 4.64 x 1.13 in.)		 18.20 x 11.79 x 2.87 cm
(7.17 x 4.64 x 1.13 in.)
