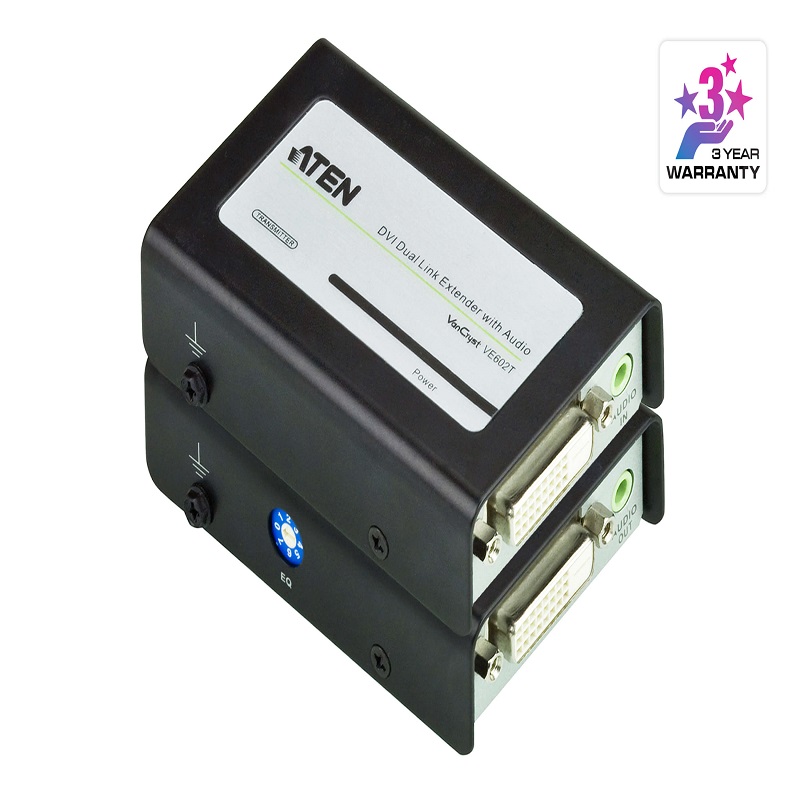

DVI Dual Link/Audio Cat 5 Extender (2560 x 1600@40m)

Product Code : VE602

Brand Category : Video Extenders

Description

Extends the distance between the DVI source and DVI display device
Long distance transmission – up to 60 m
Uses Cat 5e cable to connect the local and remote units
Employs ATEN EDID technology that allows signal transmission over one Cat 5e cable
Uses a second (Sub) Cat 5e cable for dual link signals*
Supports EDID Learning – Automatically learns and saves the EDID data of the display to which the Transmitter (VE602T) is connected
Superior video quality – DVI Dual Link up to 2560 x 1600 @ 60 Hz (40 m); DVI Single Link up to 1920x1200 @ 60 Hz (40 m), 1024 x 768 @ 60 Hz (60 m)
Audio enabled
8 segment equalization adjustment switch optimizes display quality
Built-in 8KV/15KV ESD protection
Supports widescreen formats
Rack mountable

Note:
* The length of the two Cat 5e cables must be the same.
** Note: HDCP is not supported

Technical Specification

Function	VE602R	VE602T
Video Input

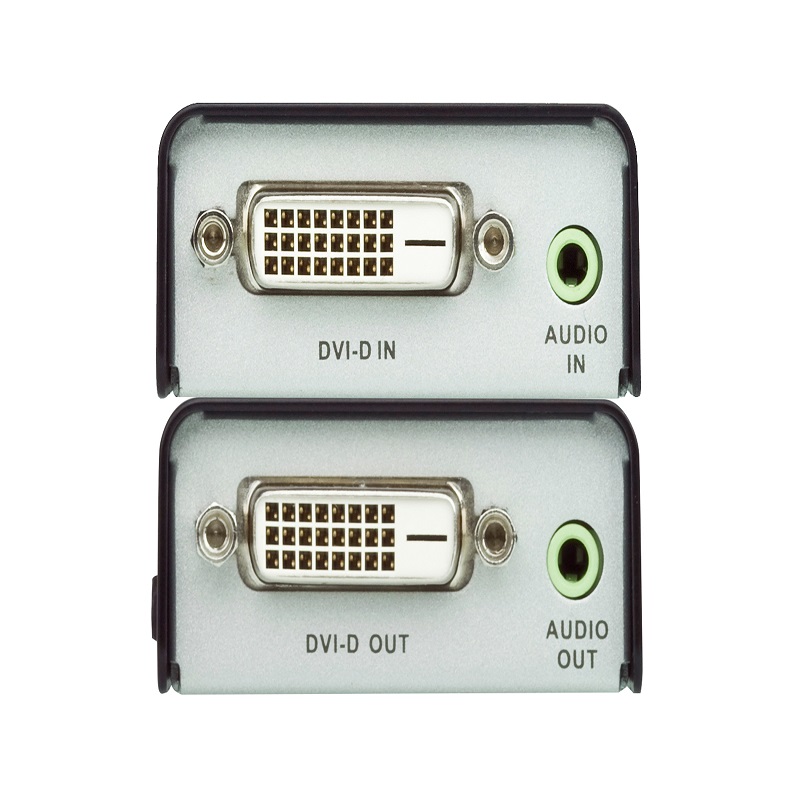

Interfaces	N/A	1 x DVI-D Female (White)
Impedance	N/A	100 Ω
Max. Distance	N/A	1.8 m
Video Output
Interfaces	1 x DVI-D Female (White)	N/A
Impedance	100 Ω	N/A
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz	225 MHz
Max. Resolutions / Distance	Dual Link: up to 2560 x 1600@40m Single Link: up to 1920 x 1200@40m; 1280 x 1024@60m	Dual Link: up to 2560 x 1600@40m Single Link: up to 1920 x 1200@40m; 1280 x 1024@60m
Audio
Input	N/A	1 x Mini Stereo Jack Female (Green)
Output	1 x Mini Stereo Jack Female (Green)	N/A
Connectors
Power	1 x DC Jack	1 x DC Jack
Power Consumption	DC5.3V:2.4W:11BTU	DC5.3V:2.86W:13BTU
Environmental
Operating Temperature	0 - 50°C	0 - 50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal	Metal
Weight	0.18 kg ( 0.4 lb )	0.18 kg ( 0.4 lb )
Dimensions (L x W x H)	9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)	9.13 x 5.60 x 2.40 cm (3.59 x 2.2 x 0.94 in.)
Carton Lot	20 pcs	20 pcs
