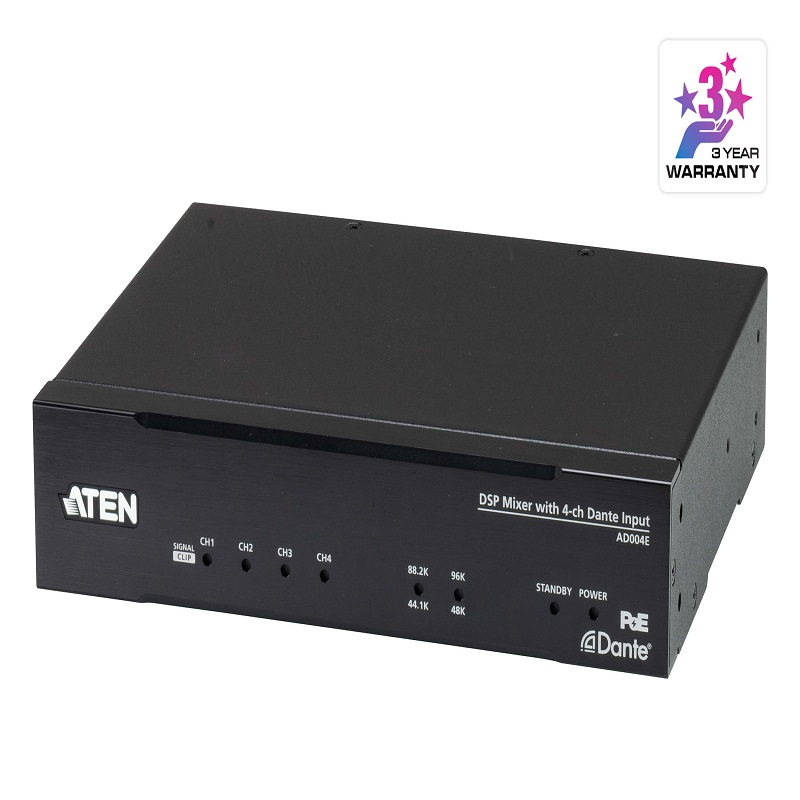

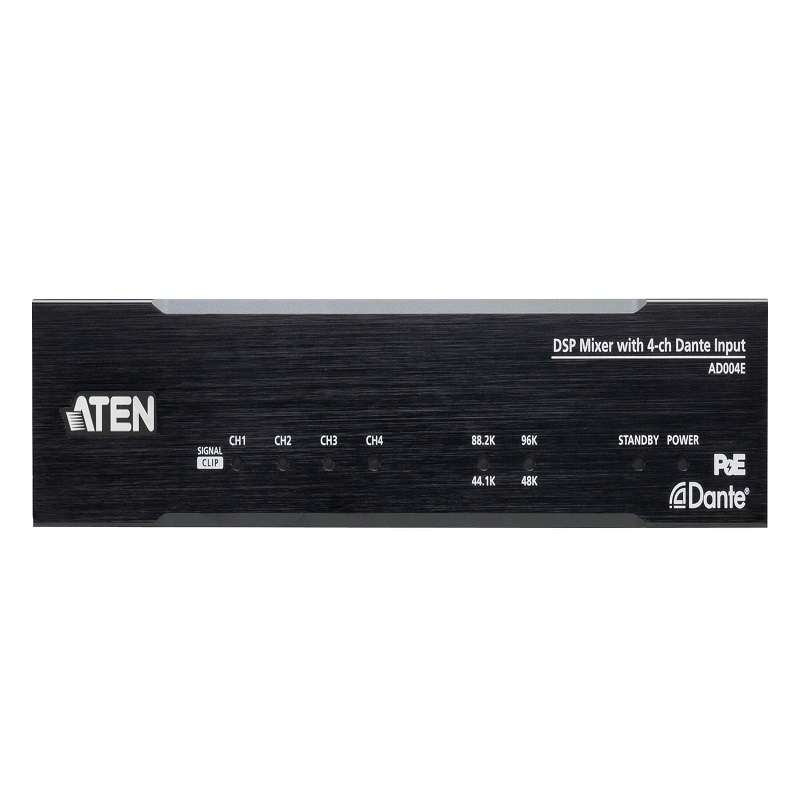

DSP Mixer with 4-ch Dante Input

Product Code : AD004E

Brand Category : Audio

Description

Converts Dante inputs into 4-channel analog line outputs
Dante AoIP technology - replaces heavy, costly analog audio cables with cost-effective, easy-to-manage Cat cables
AES67 compliant
Supports 24 bit and offers sampling rate options of 44.1k, 48k, 88.2k, and 96 kHz
Built-in DSP - allows 24 presets and speaker functionality management through PC-based app Audio Wizard / ATEN VK control system via LAN / RS-232
Built-in DSP matrix mixer - enables users to assign Dante inputs to any of the four analog outputs
Selectable automatic Standby Mode - the unit enters Standby Mode automatically when the signal level runs lower than -50 / -60 / -70 dBu for a selected duration (10 / 30 / 60 minutes)
Supports PoE for redundancy operation and eliminating the need for additional wiring installations
Compact half-rack size chassis - flexible installation inside racks and easy placement under desks or on flat surfaces
Works with ATEN Pro Audio models to realize distributed DSP systems

Technical Specification

Line Outputs
Maximum output Level	+24dBu, Nominal Input Level: +4dBu
Impedance	600Ω
System Specification
Distortion	THD+N: <0>
Frequency Response	20~20kHz, +/-0.5dB
Audio Sampling	24-bit, 44.1k/48k/88.2k/96kHz
Crosstalk	<-95dB
Power
Power Consumption	12VDC, 3.3A
Power over Ethernet (PoE)	Class 0, IEEE802.3af
Control
RS-232	Connector: 3-pin, 3.5mm, Terminal Block Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet	RJ45
Compliance
Certification	FCC, CE, UKCA
Environmental
Operating Temperature	0~40℃
Humidity	0-80% RH, Non-Condensing
Storage Temperature	-20~60℃
Physical Properties
Weight	0.92 kg ( 2.04 lb )
Housing	Metal
Dimensions (L x W x H)	20.00 x 4.40 x 15.40 cm (7.87 x 1.73 x 6.06 in.)
Note	External power adapter is sold separately.
