DB-VWC3 Series

DB-VWC3 Series

Product Code :

Brand Category : VWC3 LED Processor

Description




Add to Query Cart

Technical Specification

Order Code Size Description Input Slots Output Slots Adaptive Slots Control Cards PSUs
(Default+ Redundant) (Default+ Redundant)
DB-VWC3-H-FR2K 2U 2U Chassis, 3x input slots, 3x output slots, 1x hybrid slot 3 3 1 1 1

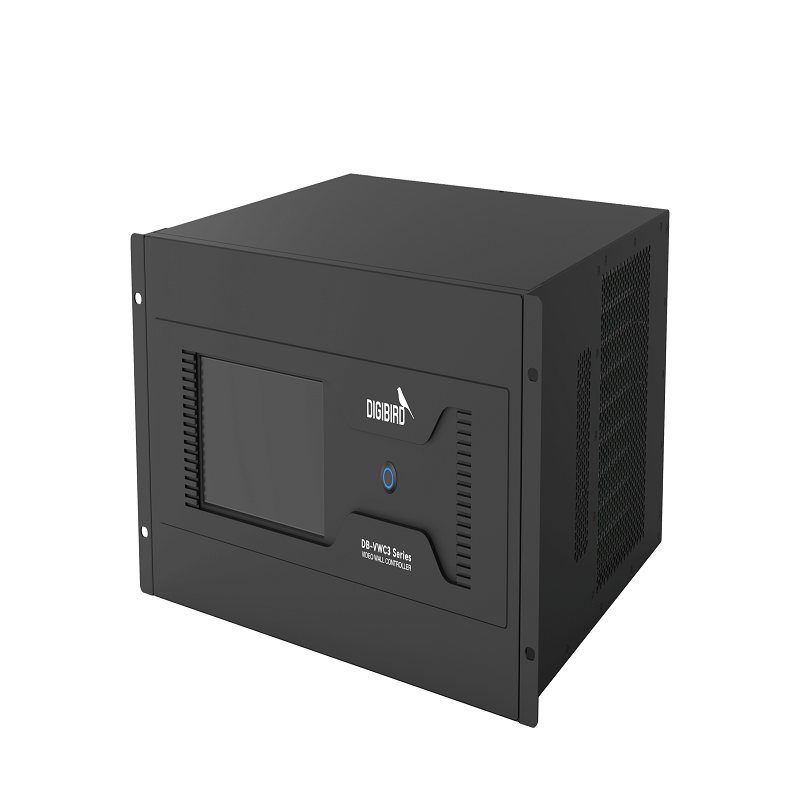

DB-VWC3-H-FR5K 5U 5U Chassis, 8x input slots, 8x hybrid slots 8 0 8 1+1 1+1

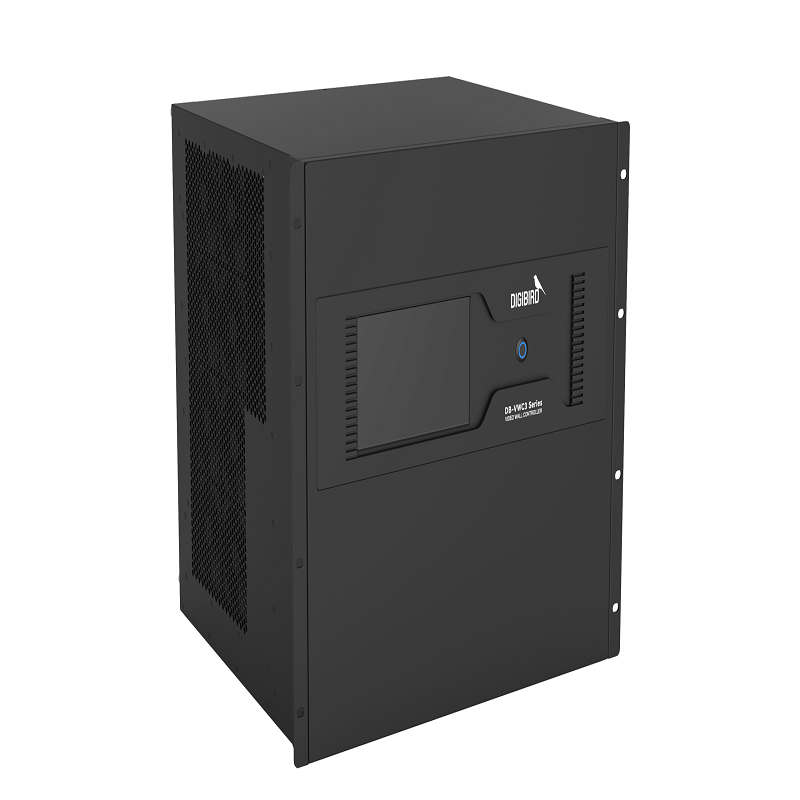

DB-VWC3-H-FR9K 9U 9U Chassis, 16x input slots, 2x output slots, 14x hybrid slot 16 2 14 1+1 1+1

Order Code Port Type Description Ports Qty. Slot Occupation Resolution
DB-VWC3-H-IC-DVI8 DVI 8 channels SL-DVI input card. 8 2 Up to 1920×1080/60Hz
DB-VWC3-H-IC-HDMI8 HDMI 8 channels HDMI input card. 8 2 Up to 1920×1080/60Hz
DB-VWC3-H-IC-VGA4 VGA 4 channels VGA input card. 4 1 Up to 1920×1080/60Hz
DB-VWC3-H-IC-DVI4 DVI 4 channels DVI input card. 4 1 Up to 1920×1080/60Hz
DB-VWC3-H-IC-HDMI4 HDMI 4 channel HDMI input card. 4 1 Up to 1920×1080/60Hz
DB-VWC3-H-IC-4KHDMI2 4KHDMI 2 channels 4K HDMI input card. 2 1 Up to 3840×2160/30Hz
DB-VWC3-H-IC-4KHDMI4 4KHDMI 4 channels 4K HDMI input card. 4 2 Up to 3840×2160/30Hz
DB-VWC3-H-IC-IPH2 IP 2 channels IP input card. 2 1 Up to 1920×1080/60Hz
DB-VWC3-H-IC-4KIPH2 4KIP 2 channels 4K IP input card. 2 1 Up to 3840×2160/30Hz
DB-VWC3-H-IC-4K60HDMI/DP1 4K60HDMI/DP 1 channels 4K60 HDMI/DP input card. 1 1 Up to 3840×2160/60Hz
DB-VWC3-H-IC-4K60HDMI/DP2 4K60HDMI/DP 2 channels 4K60 HDMI/DP input card. 2 2 Up to 3840×2160/60Hz

Order Code Port Type Description Ports Qty. Slot Occupation Resolution
DB-VWC3-H-OC-DVI8 DVI 8 channels SL-DVI output card. 8 2 Up to 1920×1080/60Hz
DB-VWC3-H-OC-HDMI8 HDMI 8 channels HDMI output card. 8 2 Up to 1920×1080/60Hz
DB-VWC3-H-OC-DVI4 DVI 4 channels DVI output card. 4 1 Up to 1920×1080/60Hz
DB-VWC3-H-OC-HDMI4 HDMI 4 channels HDMI output card. 4 1 Up to 1920×1080/60Hz
DB-VWC3-H-OC-4KHDMI4 4KHDMI 4 channels 4K HDMI output card. 4 1 Up to 3840×2160/30Hz
DB-VWC3-H-OC-4K60HDMI2 4K60HDMI 2 channels 4K60 HDMI output card. 2 1 Up to 3840×2160/60Hz
DB-VWC3-H-OC-4K60DP2 4K60DP 2 channels 4K60 DP output card. 2 1 Up to 3840×2160/60Hz
DB-VWC3-H-OC-LT-N16F2 RJ45, Fiber 16 ports RJ45 + 2 ports Fiber output card. For LED 16+2 2 Up to 3840×2160/60Hz
DB-VWC3-H-OC-LT-N20 RJ45 20 ports RJ45 output card. For LED 20 2 Up to 3840×2160/60Hz

Order Code Port Type Description   Signal Type Available Chassis
DB-VWC3-H-CC RJ45, RS232 Control Card   Control 2U, 5U, 9U
DB-VWC3-H-CC-PV RJ45, RS232 Control Card + Preview Card   Control + Preview 2U, 5U, 9U

Order Code Power In Description Power Out Rate Available Chassis
DB-ACM-PSU-550W AC 100-240V PSU (Power Supply Unit) DC 12V 550W 5U, 9U
