Product Code :
Brand Category : Centralized Controller
DB-UniManager Series controller are launched to control AV system in an easier way for meeting room or control room applications. UniManager can work perfectly with DigiBird products family to achieve best outcome.

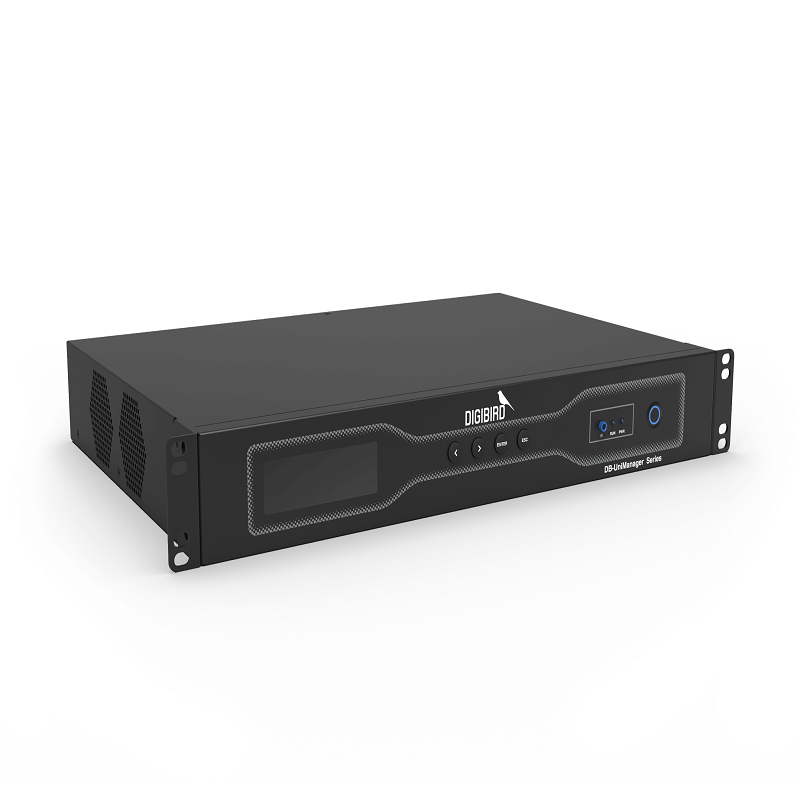

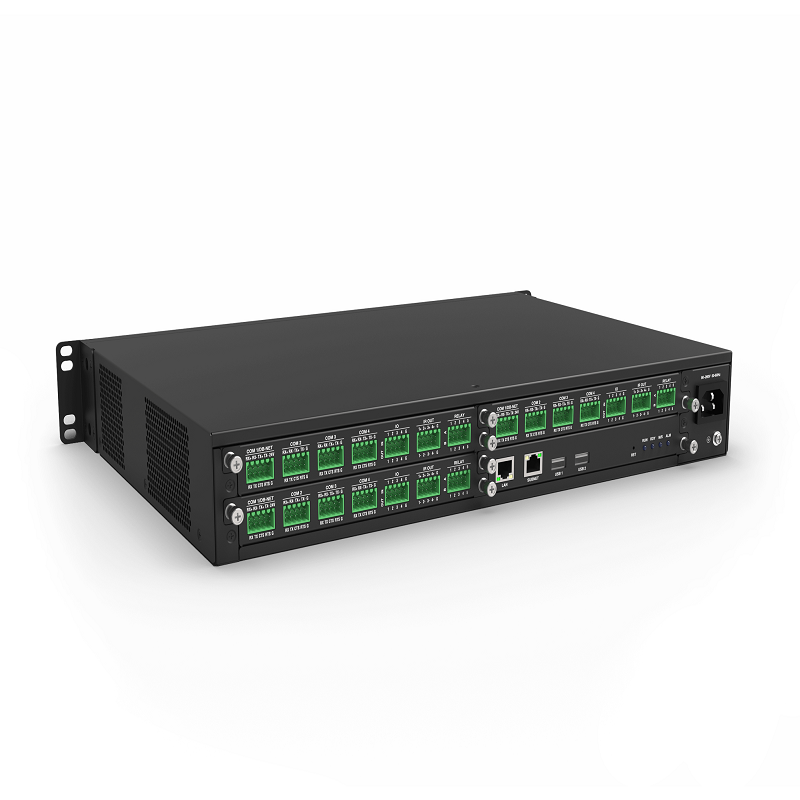

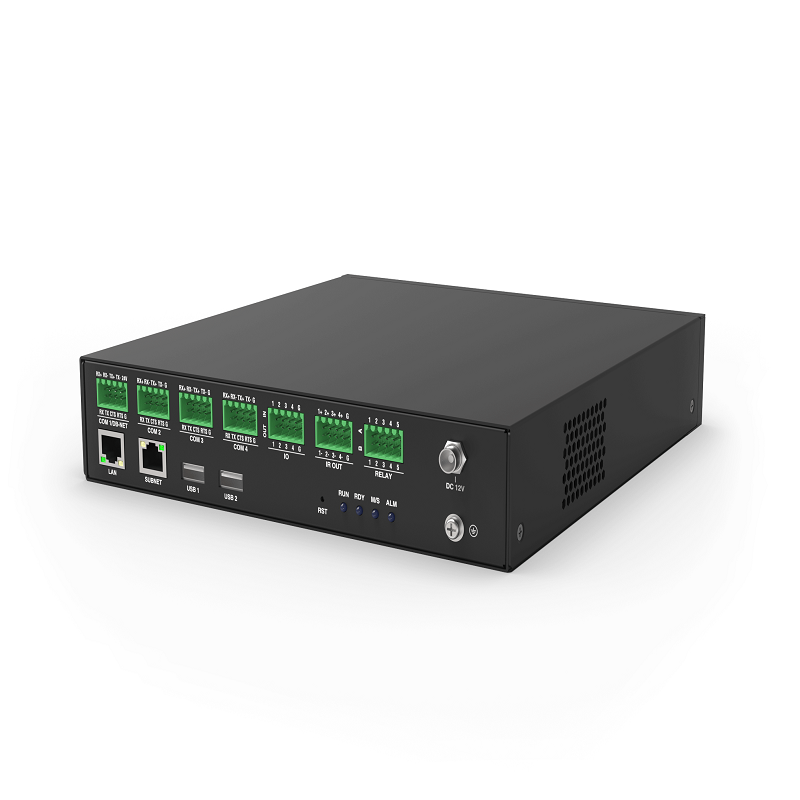

| UniManager Mini | UniManager 1.5U | |||
| Interface | COM1 | Supports RS232/RS422/RS485； | COM1/COM5 | Supports RS232/RS422/RS485； |
| Max data rate 115,200Kbps； | Max data rate 115,200Kbps； | |||
| Supports 24V output，max power 10W | Supports 24V output，max power 10W | |||
| COM2/COM3/COM4 | Supports RS232/RS422/RS485； | COM2/COM3/COM4 | Supports RS232/RS422/RS485； | |
| Max data rate 115,200Kbps； | COM6/COM7/COM8 | Max data rate 115,200Kbps； | ||
| Digital Input x4 | Internal clamping voltage 5.5V | Digital Input x8 | Internal clamping voltage 5.5V | |
| Maximum low level input voltage: 0.8V | Maximum low level input voltage: 0.8V | |||
| Minimum high level input voltage: 2V | Minimum high level input voltage: 2V | |||
| Default is pull-up, resistor 51K, voltage 5V | Default is pull-up, resistor 51K, voltage 5V | |||
| Can be configured as pull down, pulldown resistor 51K | Can be configured as pull down, pulldown resistor 51K | |||
| Note: All ports should be configured to pull-up or pull down as a whole. Does not support be configured individually. | Note: All ports should be configured to pull-up or pull down as a whole. Does not support be configured individually. | |||
| Digital Output x4 | Internal clamping voltage 5.5V | Digital Output x8 | Internal clamping voltage 5.5V | |
| Low level output voltage: | Low level output voltage: | |||
| Typical: 0V | Typical: 0V | |||
| Maximum: 0.5V | Maximum: 0.5V | |||
| High level output voltage | High level output voltage | |||
| Typical: 5V | Typical: 5V | |||
| Minimum: 4.5V | Minimum: 4.5V | |||
| Maximum output load: 5V/10mA | Maximum output load: 5V/10mA | |||
| Relay x5 | N.O. Relay | Relay x8 | N.O. Relay | |
| Rated parameter：1A /125AC, 2A / 30VDC | Rated parameter：1A /125AC, 2A / 30VDC | |||
| IR x4 | Infrared or serial output port | IR x8 | Infrared or serial output port | |
| Maximum IR output rate: 2MHz； | Maximum IR output rate: 2MHz； | |||
| 115.2k One-way serial output: 0-5V | 115.2k One-way serial output: 0-5V | |||
| Maximum baud rate 115.2k | Maximum baud rate 115.2k | |||
| Others | Power | 25W | Power | 44W |
| Working Voltage | Input voltage: 12V/3A | Working Voltage | AC input voltage: 90-260VAC / 50-60Hz | |
| DC input voltage: 113-370V | ||||
| Temperature | 0-50℃ (working), -55 – 70℃ (Restoration) | Temperature | 0-50℃ (Working), -55 – 70℃ (Storage) | |
| Humidity | 10%-80 (working), 10%-90% (Restoration) | Humidity | 10%-80% (Working), 10%-90% (Storage) | |
| Physical | Net Weight | 1.9 Kg | Net Weight | 5.8 Kg |
| Dimension | 230.6mm× 241mm×47mm（L×D×H） | Dimension | 442.6mm× 302mm× 67.5mm（L×D×H | |
