Product Code :
Brand Category : Desktop KVM Switches

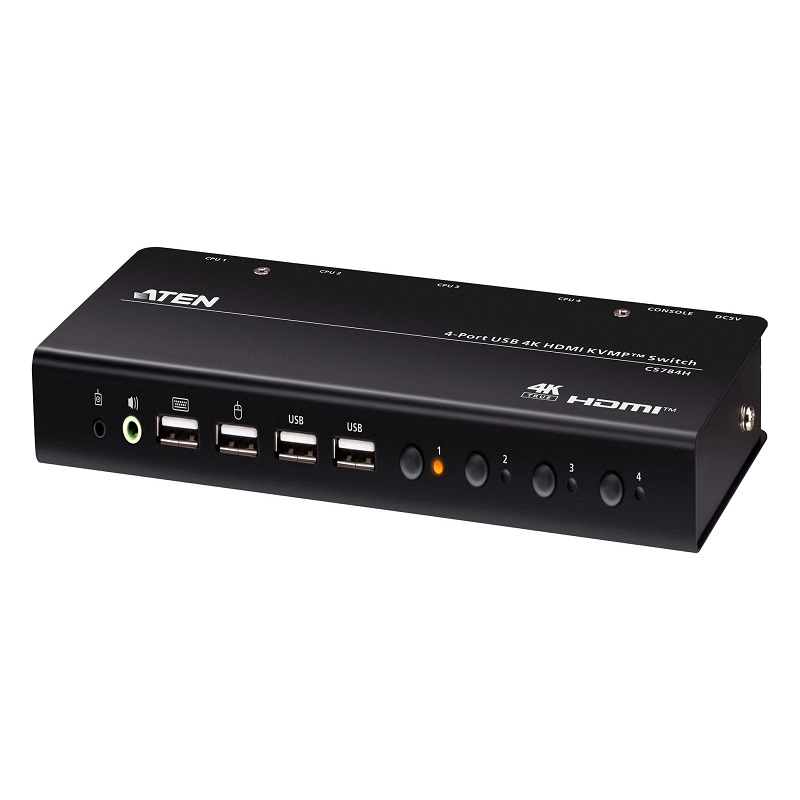

4-Port USB 4K HDMI KVMP™ Switch
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, Mouse, Remote Port Selector |
| Connectors | |

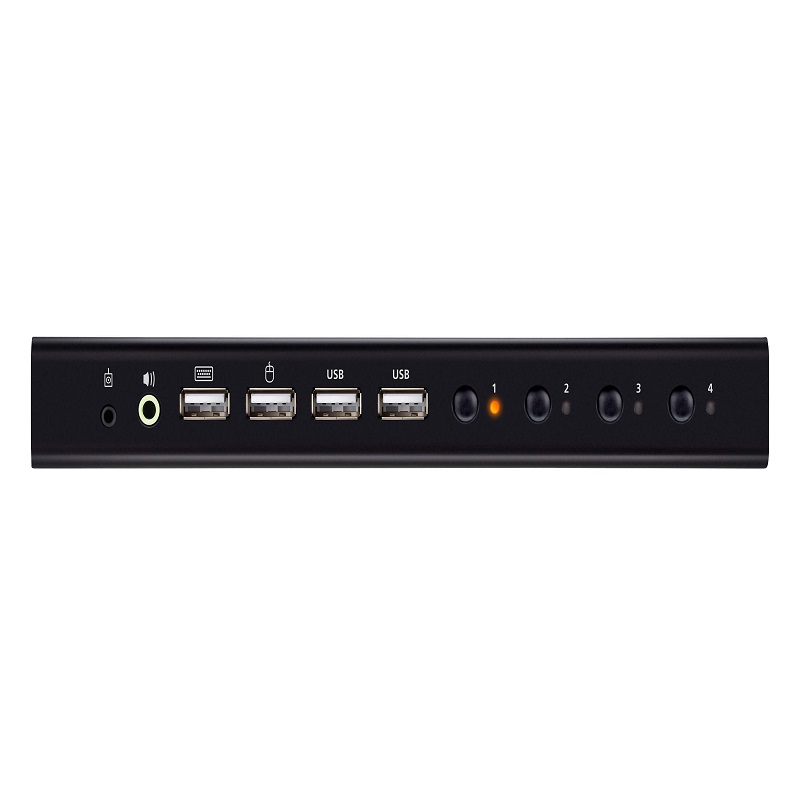

| Console Ports | 2 x USB Type A Female 1 x HDMI Female (Black) 1 x 3.5mm Audio Jack Female (Green; 1 x front) |

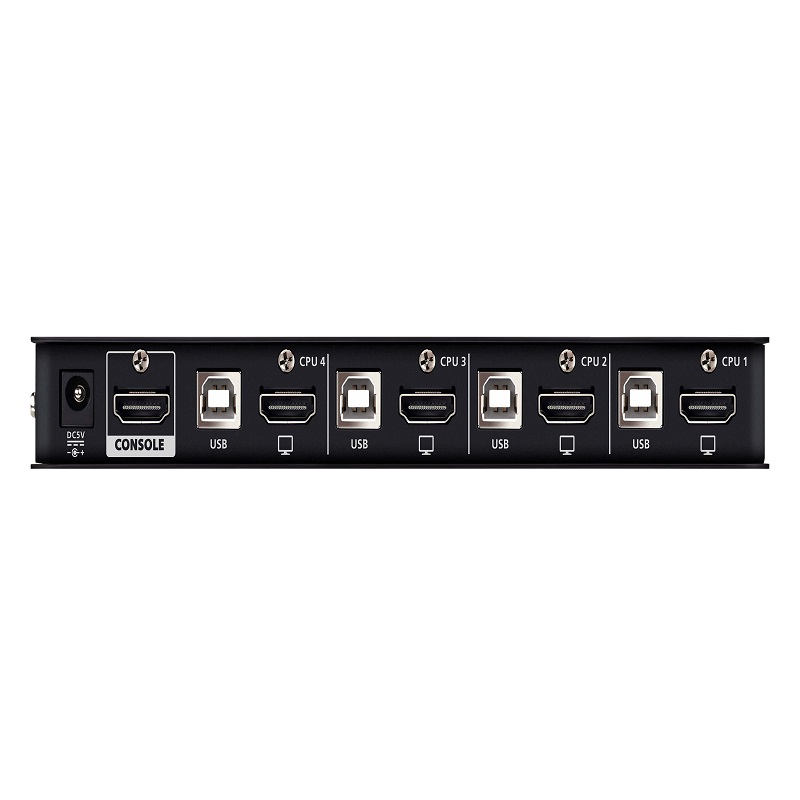

| KVM (Computer) Ports | 4 x USB2.0 Type B Female (White) 4 x HDMI Female (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB2.0 Type A Female (White; 2 x front) |
| Switches | |
| Selected | 4 x Pushbutton |
| LEDs | |
| On Line /Selected | 4 (Orange) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | Up to 4096 x 2160 @ 60Hz, 5120 x 1440 @ 60Hz |
| Scan Interval | 1-99 Seconds (Default: 5 sec.) |
| Power Consumption | DC5V:1.73W:34BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal, Plastic |
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.23 x 8.17 x 2.50 cm (7.96 x 3.22 x 0.98 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
