Product Code :
Brand Category : KVM over IP Switches

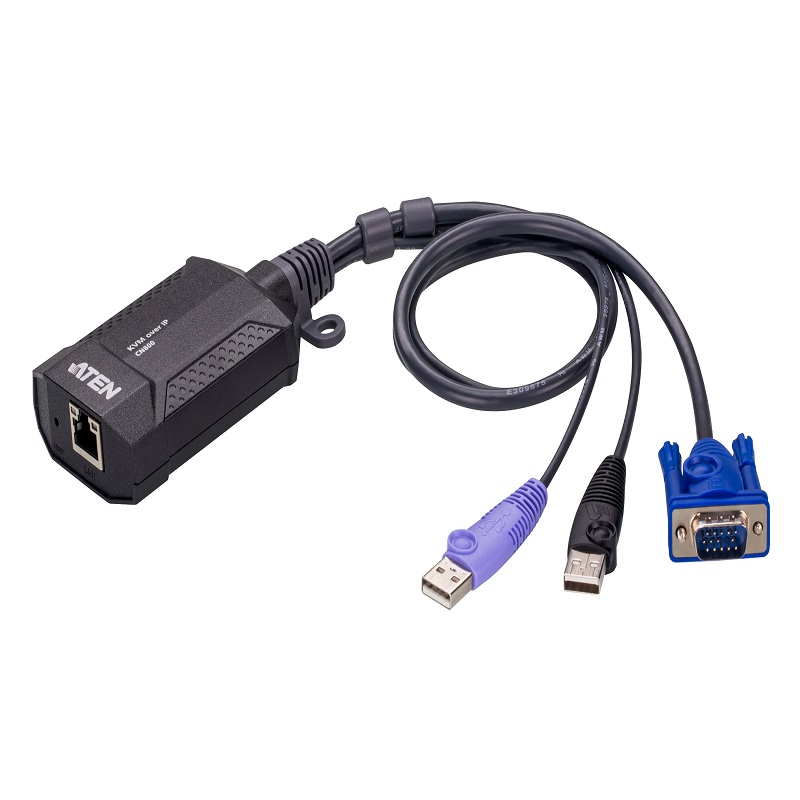

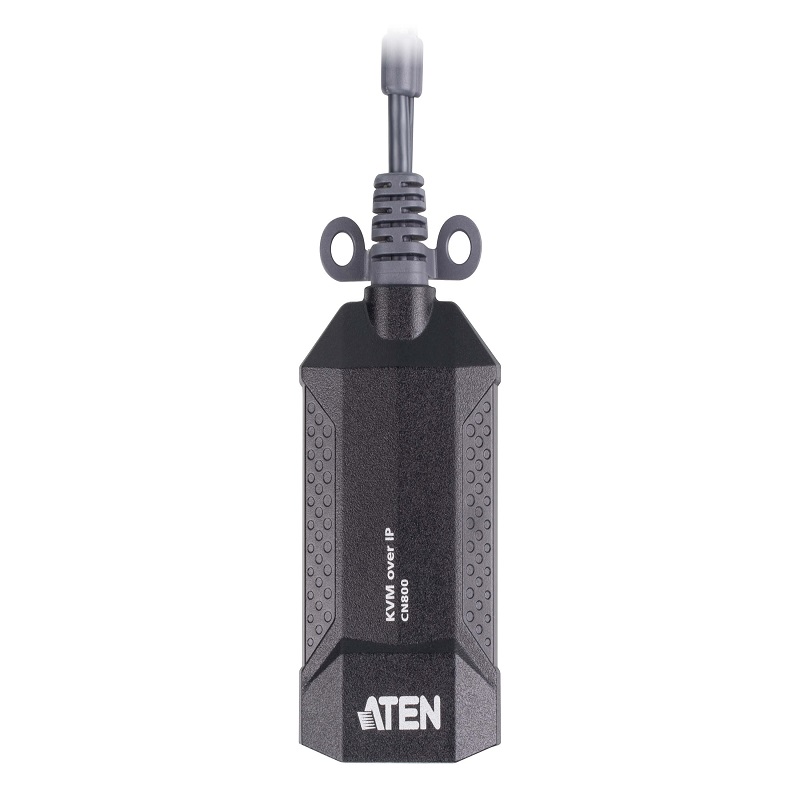

USB VGA KVM over IP Mini
| Connectors | |
| KVM (Computer) Ports | 1 x USB Type A Male (Purple) 1 x USB Type A Male (Black) 1 x VGA Male (Blue) |

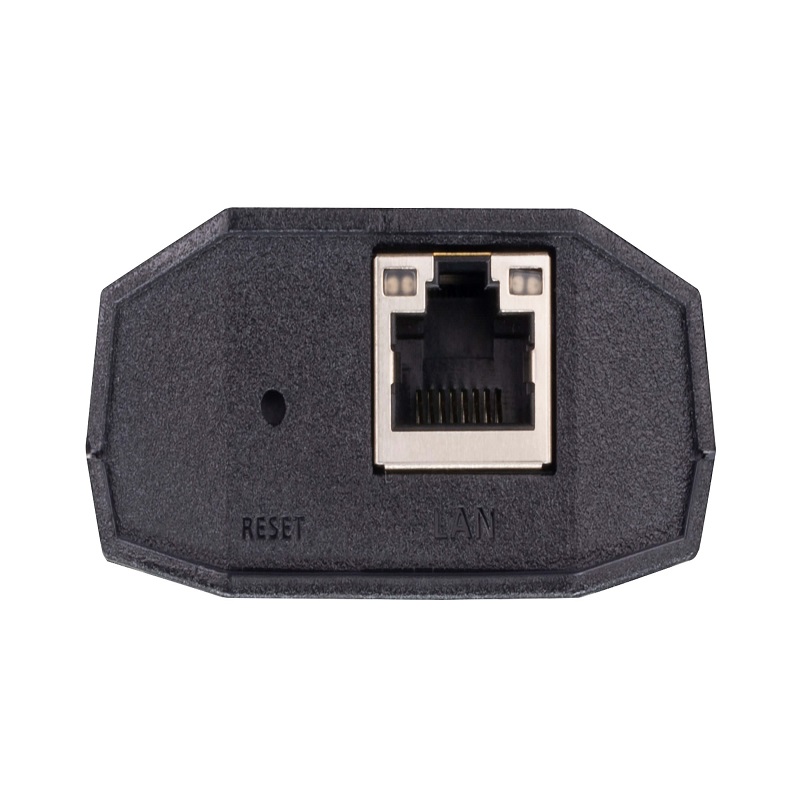

| LAN Ports | 1 x RJ-45 Female |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| LEDs | |
| Power | 1 (Green) |
| Link | 1 x Link (Orange / Green) 1 x Active (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1920 x 1200 |
| Power Consumption | DC5V:3.47W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.17 kg ( 0.37 lb ) |
| Dimensions (L x W x H) | 9.32 x 5.66 x 2.44 cm (3.67 x 2.23 x 0.96 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
