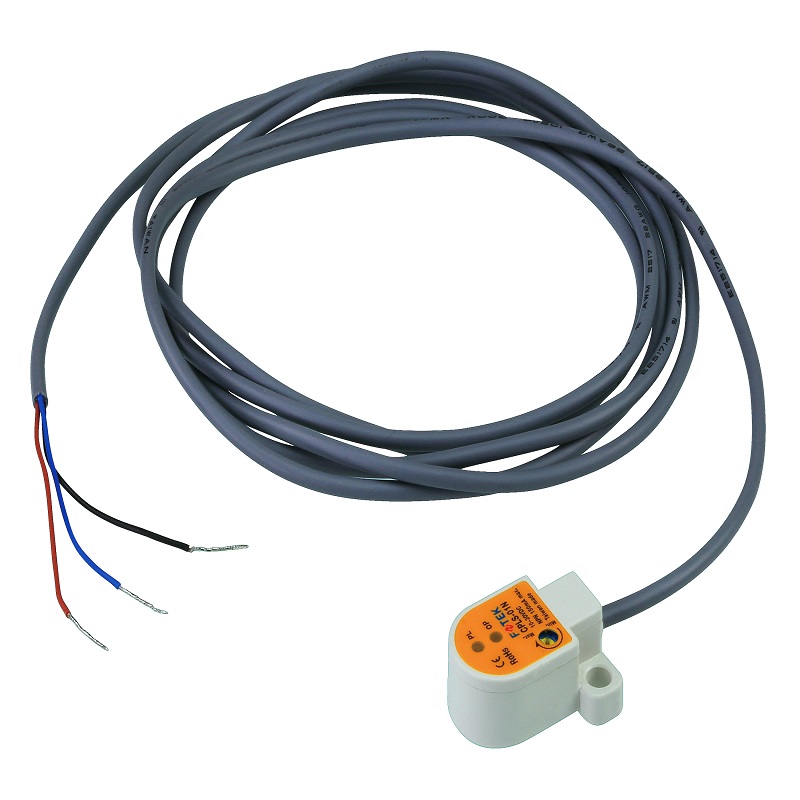

Product Code : EA1540
Brand Category : Accessories
| Protection | IP-66 |
| Physical Properties | |
| Housing | PP |
| Cable Type | 3Φ/3c-2m（22AWG） |
| Insulation strength | 100 MΩ / 500VDC |
| Dielectric strength | 2.5kv per minute |
| Ripple of power | 10﹪peak to peak |
| Operating voltage | 10 ~ 30VDC |
| Current Consumption | 20 mA max. |
| Output method | NPN |
| Output status | NO |
| Output current | 150mA max. |
| Leakage current | 0.1mA max. |
| Residual voltage | 0.1V max. |
| Protection circuit | Short circuit & polarity reversed |
| Sensitivity adjuster | 270° Trimmer |
