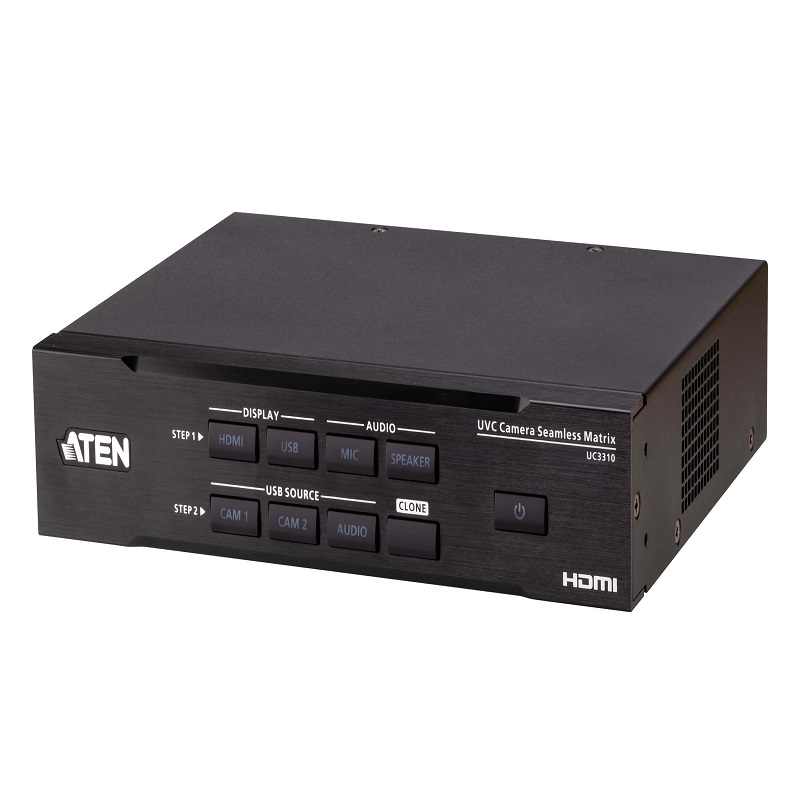

CAMLIVE MX UVC Camera Seamless Matrix

Product Code : UC3310

Brand Category : Capture

Description

Converts up to two 4K@30 USB camera inputs into one HDMI
Supports USB audio in / out for matrix switching
Support 1080p @ 30 UVC output simultaneously for live broadcasting on popular streaming software (Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch)

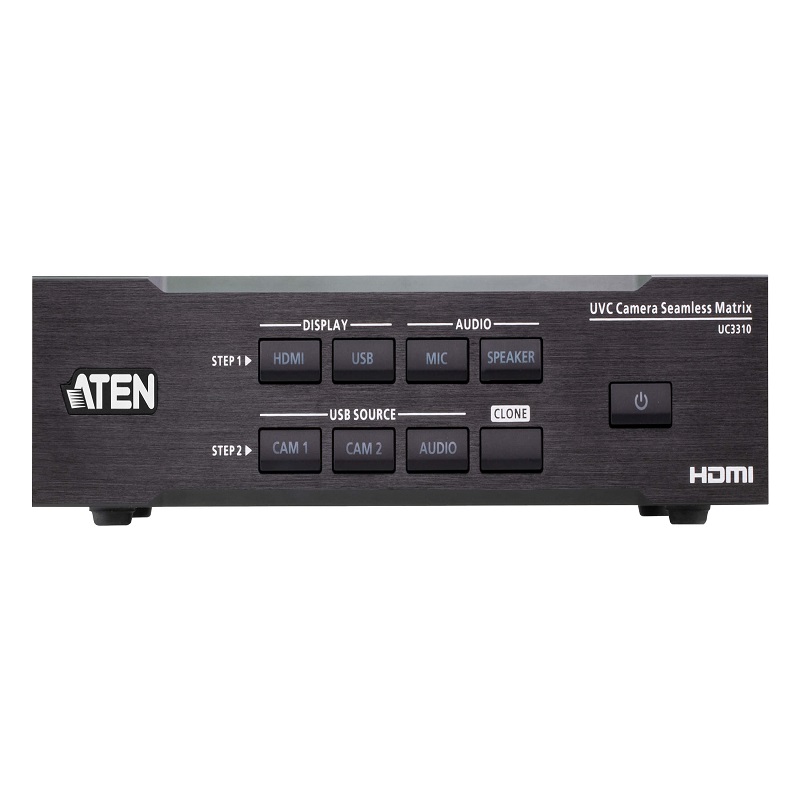

Pushbuttons on the front panel allow quick and intuitive signal selection and assignment
RS-232 connection enables integration with ATEN VK Control System
Built-in RS-485 interface to support VISCA protocol for PTZ camera controller connection
Optional rack mount kit gives installation flexibility in media cabinets or DIT stations
Plug-and-play convenience with no software drivers neededv
Supports all major operating systems including windows 10 and macOS 10.13

Technical Specification

Connectors
Video In	1 x USB3.2 Gen1 Type A Female (Blue) 1 x USB3.2 Gen1 Type C Female (Black)
Audio Inputs	1x USB3.2 Gen1 Type A Female (Blue)
Video Output	1 x HDMI Type A Female (PGM Video, Black)
USB Port	USB 3.2 Gen1 Type-B Female (Blue) (USB-B to USB-A cable package included)
Video Resolution	USB camera input: 720p24, 720p25, 720p30, 720p50, 720p60 1080p24, 1080p25, 1080p30, 1080p50, 1080p60 2160p24, 2160p25, 2160p30 PGM HDMI output: HD Video Standards 720p24, 720p25, 720p30, 720p50, 720p60 1080p24, 1080p25, 1080p30, 1080p50, 1080p60 Ultra HD Video Standards 2160p24, 2160p25, 2160p30 USB video output: 4Kp30 (MJPEG) 1080p30, 720p24, 720p25, 720p30 (MJPEG)
Color Space	NV12
Audio Sampling	16-bit PCM audio, 48KHz
Control
RS-232	Interface : RJ-45 Bit rate : 50bps~921.6Kbps (Default: 9600bps) Stop bit : 1 stop bit Data bits: 8 bits Parity : no parity Signal : TxD, RxD, GND
RS-485	PTZ Control Support Protocol : VISCA Interface : Terminal block Flow Control N/A FIFO 64 bytes Bit rate : 50bps~115200bps (Default: 9600bps) Stop bit : 1 stop bit Data bits: 8 bits Parity: none Signal : Data+(B), Data-(A), GND Protection IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power1 kV Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 – 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Minimum Hardware Requirements	PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more 1 x USB-A interface
OS Support	Windows 10 and above Mac OS 12 and above
Physical Properties
Housing	Metal
Weight	0.98 kg ( 2.16 lb )
Dimensions (L x W x H)	16.46 x 20.00 x 4.40 cm (6.48 x 7.87 x 1.73 in.)
Power Inputs
Power Adapter	DC power adapter with Power cable IEC C13, 100-240 Vac
Power Consumption	DC12V:6.50W:92BTU
