ATEN Control System - 12-button Keypad (EU, 2 Gang)

Product Code : VK112EU

Brand Category : Control System

Description

Keypad - provides physical connection to the ATEN Control System

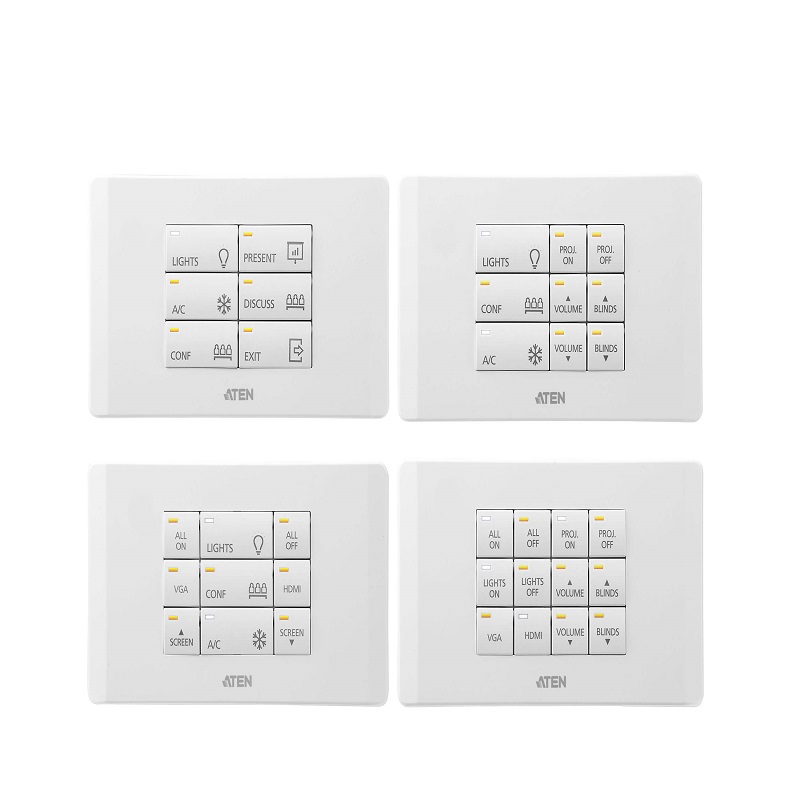

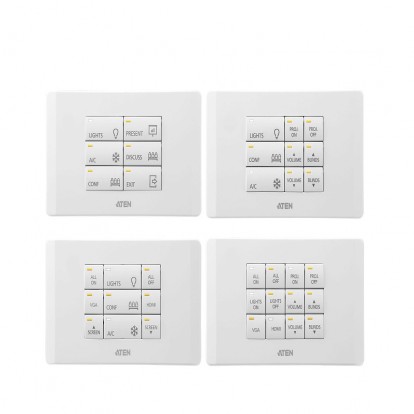

Fully customizable with 125 layout combinations of 6 to 12 buttons
Available in black or white color
System LED indicators for quick connection status check
Dual-color button LEDs for clear indication and visibility in dark environments
Easy ID pairing with Control Box for Ethernet communication
Up to 8 keypads connect to a single Control Box for future scalability
Versatile modes support flexible behavior settings for each button
Intuitive web GUI for easy keypad configuration
Dual power supplies with Power over Ethernet (PoE) and DC power
Customized button engraving service
Flexible installation is made easier with the keypad tabletop kit (VK112EUTTK), allowing for device mounting on the table or to the wall

Technical Specification

Interfaces
Ethernet	• 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Keypad Layout	6~12 buttons customizable in 125 keypad layouts
Switches
Controller ID	1 x 16-segment Switch
Keypad ID	1 x 8-segment Switch
Reset Button	1 x Semi-recessed Pushbutton
Power Consumption	DC5V:1.25W:6BTU POE:1.56W:7BTU
Environmental
Operating Temperature	0 – 50°C
Storage Temperature	–20 – 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.17 kg ( 0.37 lb )
Dimensions (L x W x H)	8.32 x 14.76 x 4.80 cm (3.28 x 5.81 x 1.89 in.)
Faceplate Dimensions (L x W x H)	8.62 x 15.12 x 0.92 cm (3.39 x 5.95 x 0.36 in.)
