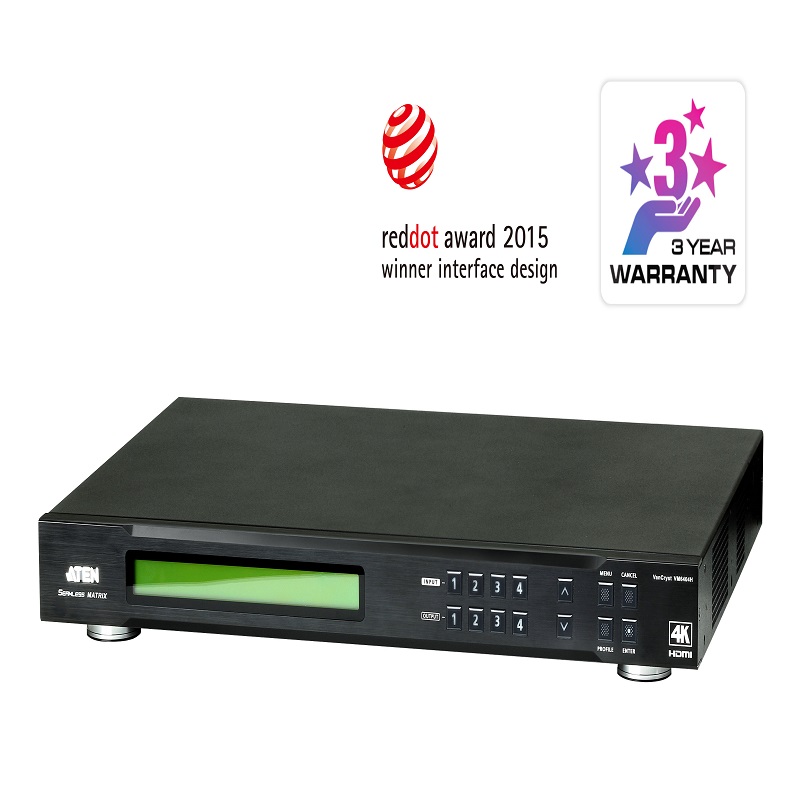

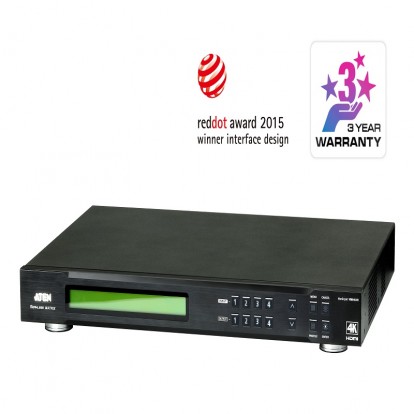

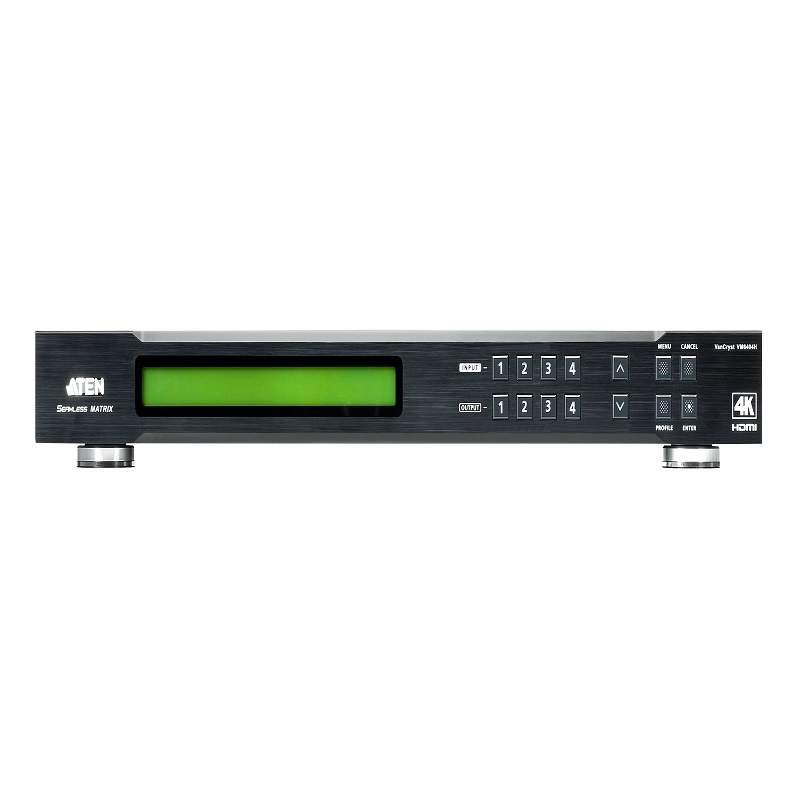

8 x 8 HDMI Matrix Switch with Scalers

Product Code : VM5808H

Brand Category : Video Matrix Switches

Description

Connects any of 8 HDMI sources to any of 8 HDMI displays
Long Distance Transmission – supports up to 15 m (24 AWG)
HDMI (3D, Deep color); HDCP 1.4 compatible
Seamless Switch™ – ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions*
Video Wall –allows you to create custom video wall layouts via intuitive web GUI *
Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
View and control via ATEN Video Matrix Control App in a swift and agile way
Features a built in high-performance scaler for the best image quality
Built-in bi-directional RS-232 serial port for high-end system control
Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
ESD protection for HDMI
Supports Dolby True HD and DTS HD Master audio
Consumer Electronics Control (CEC) support
Supports IR signals for remote control
Firmware Upgradeable
Rack Mountable (1U design)

* Note:
1. If Seamless Switch is enabled, the video output will not display 3D, Deep Color, or interlace (i.e., 1080i) resolution features. To use these features, you must disable Seamless Switch.
2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Technical Specification

Video Input
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3.0 m
Video Output
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15 m
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1080p
Max. Distance	Up to 15 m
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
Ethernet	1 x RJ-45 Female
EDID Settings	EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power	1 x 3-Prong AC Socket
Power
Maximum Input Power Rating	100-240 VAC; 50-60 Hz; 1.0A
Power Consumption	AC110V:56.5W:265BTU AC220V:55.0W:258BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	4.16 kg ( 9.16 lb )
Dimensions (L x W x H)	43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.)
Carton Lot	1 pc
