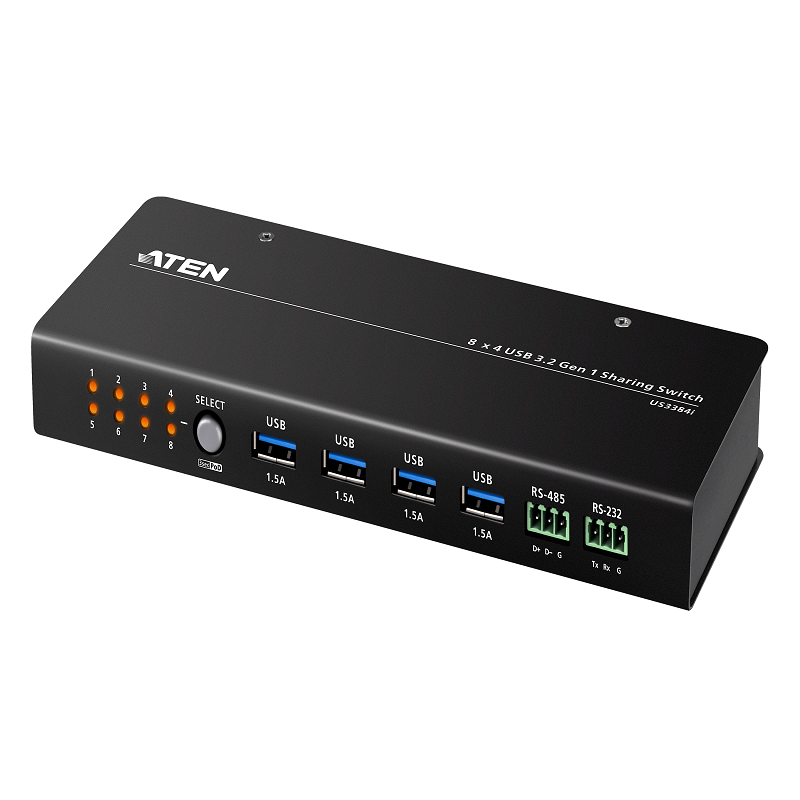

8 x 4 USB 3.2 Gen 1 Sharing Switch

Product Code : US3384i

Brand Category : Docks and Switches

Description

Allows sharing of up to 4 USB 3.2 devices among 8 PCs
Versatile port selection methods – front panel pushbutton, RS-232/RS-485 serial commands, and external remote port selector
Power on Detection – Automatically switches the PC focus to the last plugged-in/powered-on host device
Supports DC 9 – 24V power input through terminal block

Technical Specification

Computer Connections	8
Connectors

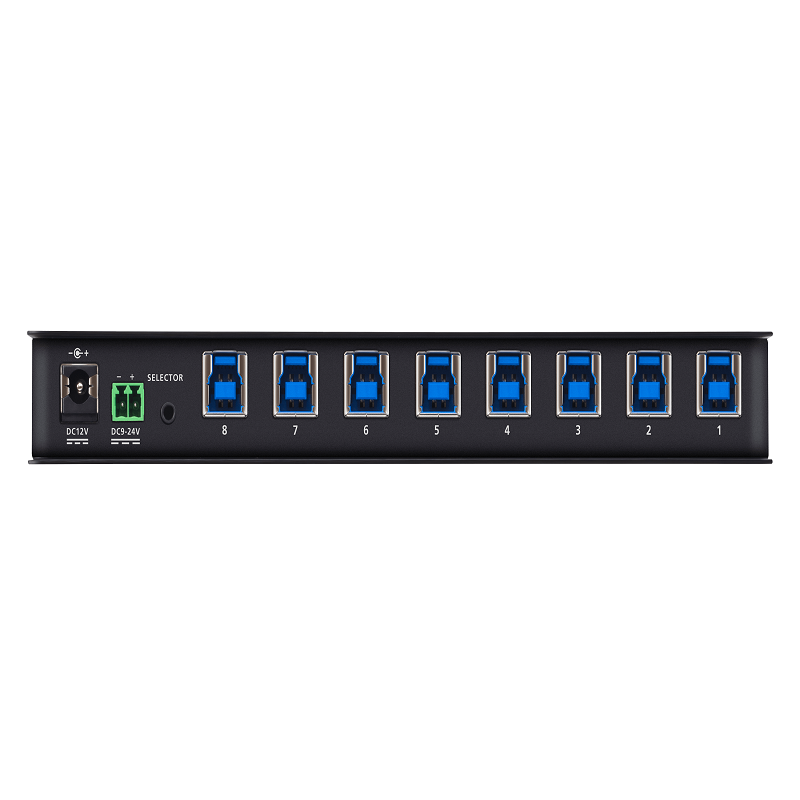

Computer	8 x USB 3.2 Gen 1 Type-B Female (Blue)

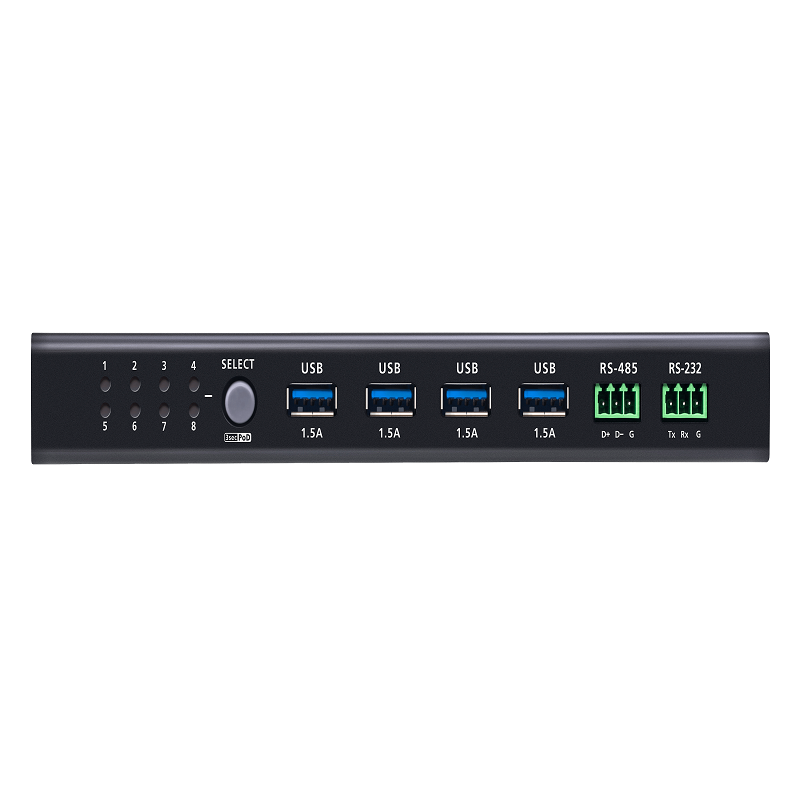

Device	4 x USB 3.2 Gen 1 Type-A Female (Blue)
Serial	2 x 3-pin Terminal Block (Green)
Power	1 x 2-pin 9-24V Terminal Block (Green)
Power (Optional)	1 x 12V DC Jack Female (Black)
Power Consumption	DC12V:0.52W:130BTU/h DC24V:0.53W:130BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power Mode	Terminal Block / DC Jack Power Adapter* *The power adapter (0AD8-8012-50M2) is sold separately, please contact your ATEN dealer for product information.
Port Selection	Pushbutton / Remote Port Selector* / Serial Command *The remote port selector (2XRT-0016G) is sold separately, please contact your ATEN dealer for product information.
LEDs
Selected	8 (Orange)
Cable Length
USB Cable	8 x USB 3.2 Gen 1 Type-A to Type-B Cables 1.2m
Environmental
Humidity	0-80% RH, Non-condensing
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Physical Properties
Housing	Metal
Weight	0.50 kg ( 1.1 lb )
Dimensions (L x W x H)	20.00 x 8.06 x 2.50 cm (7.87 x 3.17 x 0.98 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
