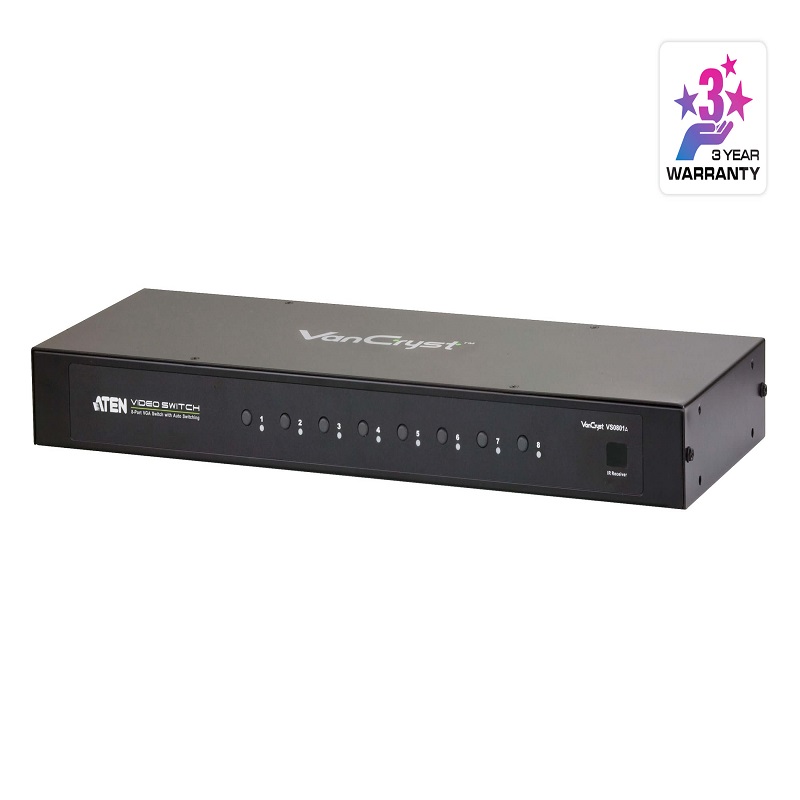

8-Port VGA/Audio Switch with Auto Switching

Product Code : VS0801A

Brand Category : Video Switches

Description

Display the video output of up to eight computers on a single VGA display

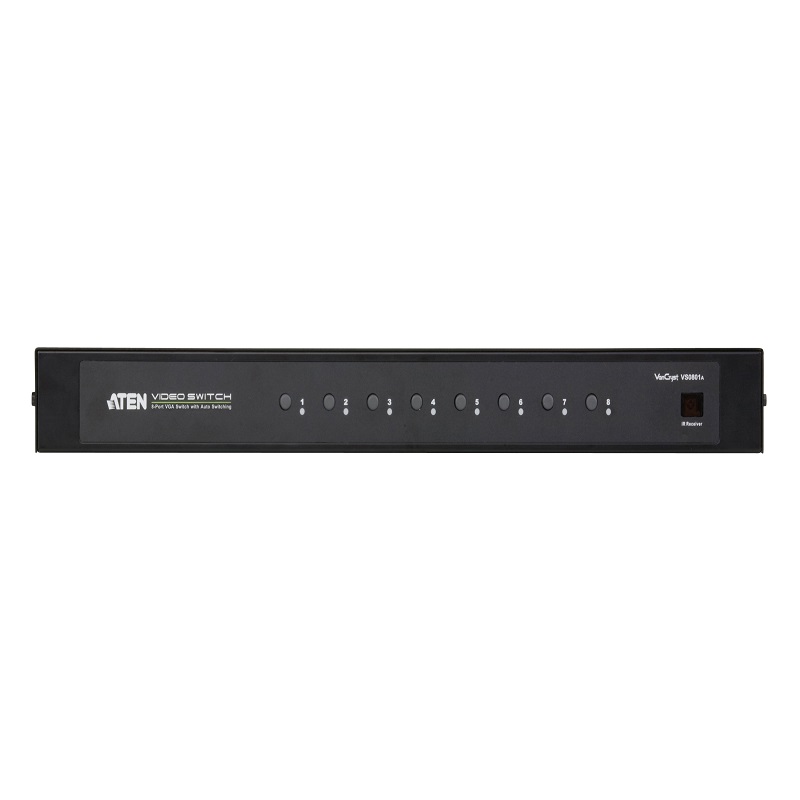

Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232 commands, IR remote control, or Port Switching cable*
Supports stereo audio
Built-in bi-directional RS-232 serial port for high-end system control
RS-232 Control:
•Power On Detection – if one VGA source is powered off, the VS0801A will automatically switch to the next powered-on source
•Auto Switching – sets the priority for auto switching to a connected port
•Pushbutton Lock – locks use of the front panel pushbuttons
Supports up to 300MHz bandwidth for optimal video quality
Superior video quality – up to 2048 x 1536 @ 60Hz
Long distance transmission – up to 30 m
Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
Video Dyna Sync™ – Exclusive ATEN technology eliminates bootup display problem and optimizes resolution when switching between ports
Supports Dynamic DDC to monitor and receive updated EDID information from displays

* Note: The Port Switching VGA cable does not come with the package and must be purchased separately

Technical Specification

Video Input
Interfaces	8 x HDB-15 Male (Blue)
Impedance	75 Ω
Max. Distance	1.8 m
Video Output
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 Ω
Video
Max. Bandwidth	300 MHz
Max. Resolution	Up to 1920 x 1440
Max. Distance	Up to 30 m
Audio
Input	8 x Mini Stereo Jack Female (Green)
Output	1 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:1.01W:5BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	2.10 kg ( 4.63 lb )
Dimensions (L x W x H)	43.70 x 15.98 x 4.40 cm (17.2 x 6.29 x 1.73 in.)
Carton Lot	3 pcs
