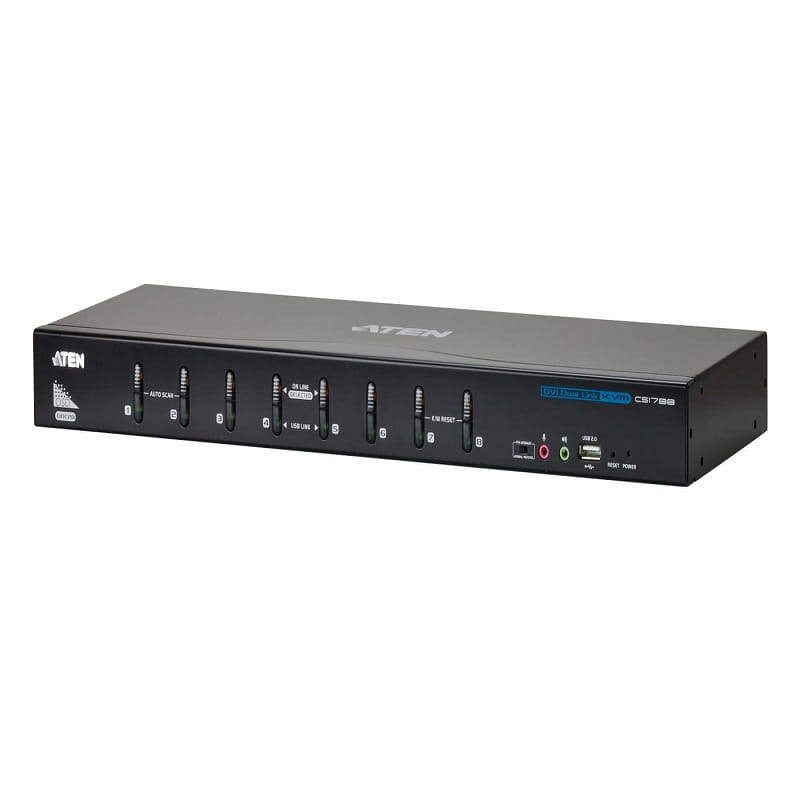

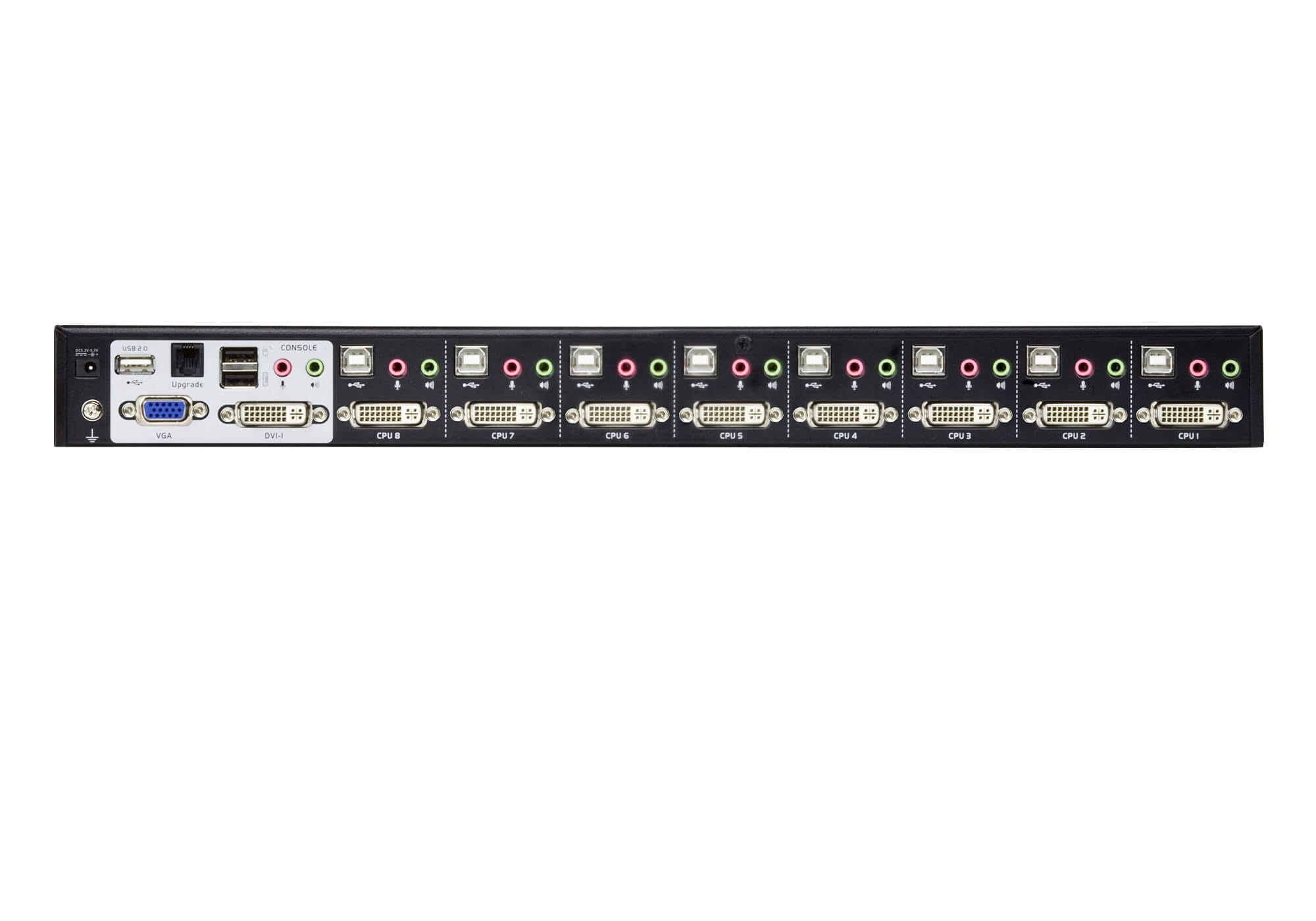

8-Port USB DVI Dual Link/Audio KVM Switch

"

• One USB console controls eight Dual Link DVI or VGA computers and two additional USB 2.0 devices
• Supports a digital (DVI) or analog (VGA) video output
• Cascadable to three levels – control up to 512 computers
• Multi-Display feature – stack up to four CS1788 units and display video from up to four monitors (dual display / triple display / quad display)
• 2-port USB 2.0 hub built in
• Fully compliant with the USB 2.0 specification
• Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
• OSD Backup/Restore feature – enables the administrator to back up the switch’s configuration and user profile information
• Two-level (Administrator/User) password authorization for enhanced security protection
• Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
• Audio enabled –  full bass response provides a rich experience for 2.1 channel surround sound Systems
• Console audio ports on front panel for easy access
• Multiplatform support – Windows, Linux, Mac, Sun
• Supports widescreen resolutions
• Superior video quality – 2560 x 1600 (Dual Link DVI); 2048 x 1536 (VGA); DDC2B
• Independent switching of KVM and USB focus
• DVI digital and analog monitor support – fully compliant with the DVI specifications
• HDCP compatible
• Video DynaSync™  – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish
• Auto Scan Mode for monitoring all computers
• Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
• Firmware upgradable

  Note: PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers

"
