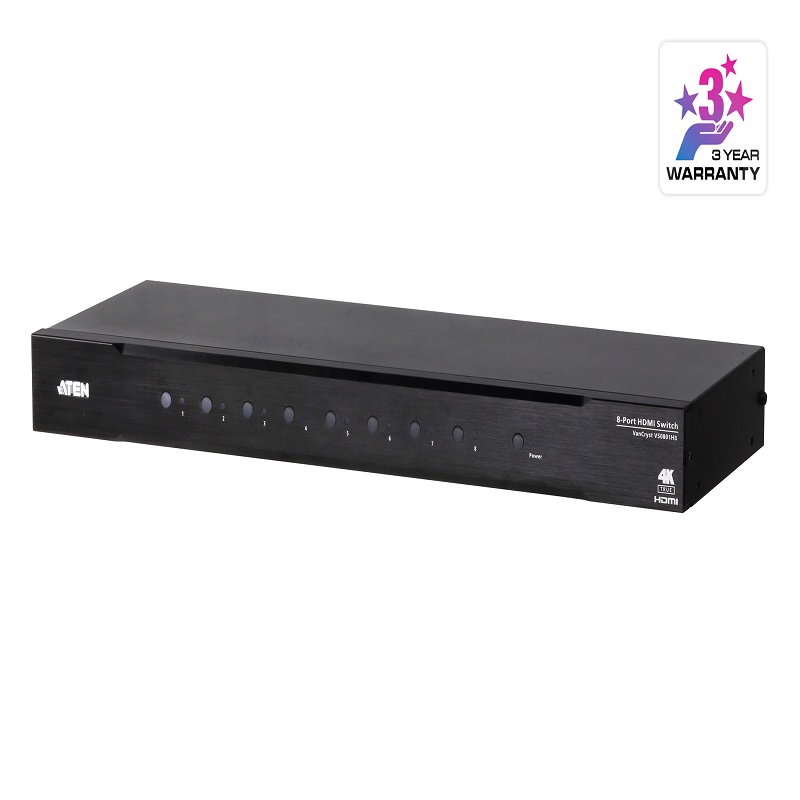

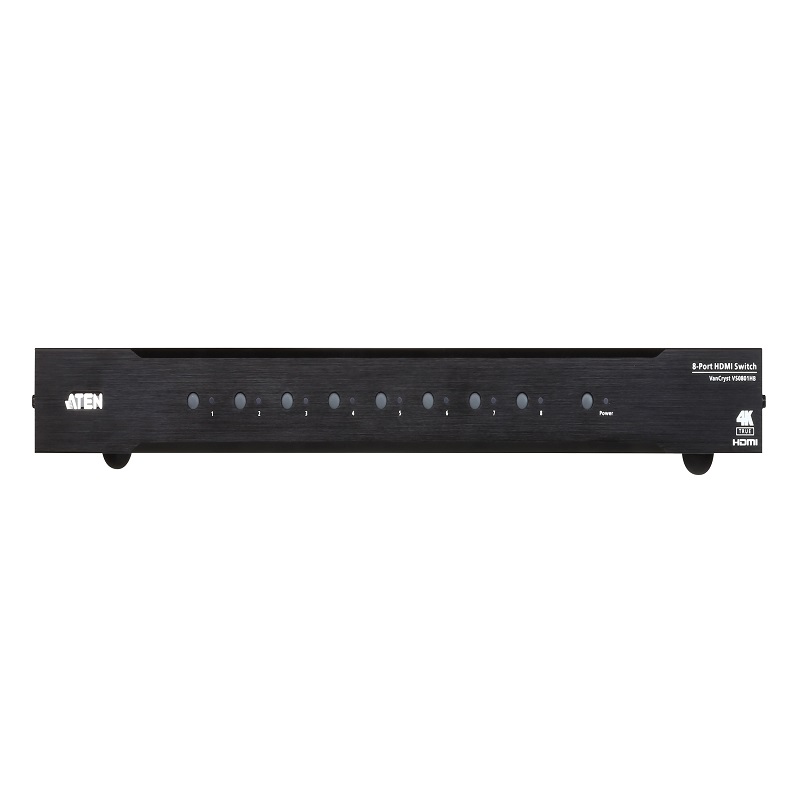

8-Port True 4K HDMI Switch

Product Code : VS0801HB

Brand Category : Video Switches

Description

Allows up to 8 HDMI sources to be connected to one HDMI display
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
Supports HDR10⁺
Built-in bi-directional RS-232 serial port for high-end system control
Auto switching modes for auto port selection
Supports IR extension
Clear LED indication of device status
Plug-and-play
Rack Mountable

Technical Specification

Switches
DIP	1 x Auto Switch ON / OFF
Video Input
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate	18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock	600 MHz
Compliance	HDMI 2.0 (3D, Deep Color) HDCP 2.2 Consumer Electronics Control (CEC)
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance	5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
Connectors
Power	1 x DC Jack (with locking)
Power Consumption	DC5.3V:3.73W:17BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	2.14 kg ( 4.71 lb )
Dimensions (L x W x H)	43.72 x 15.83 x 4.40 cm (17.21 x 6.23 x 1.73 in.)
Carton Lot	3 pcs
