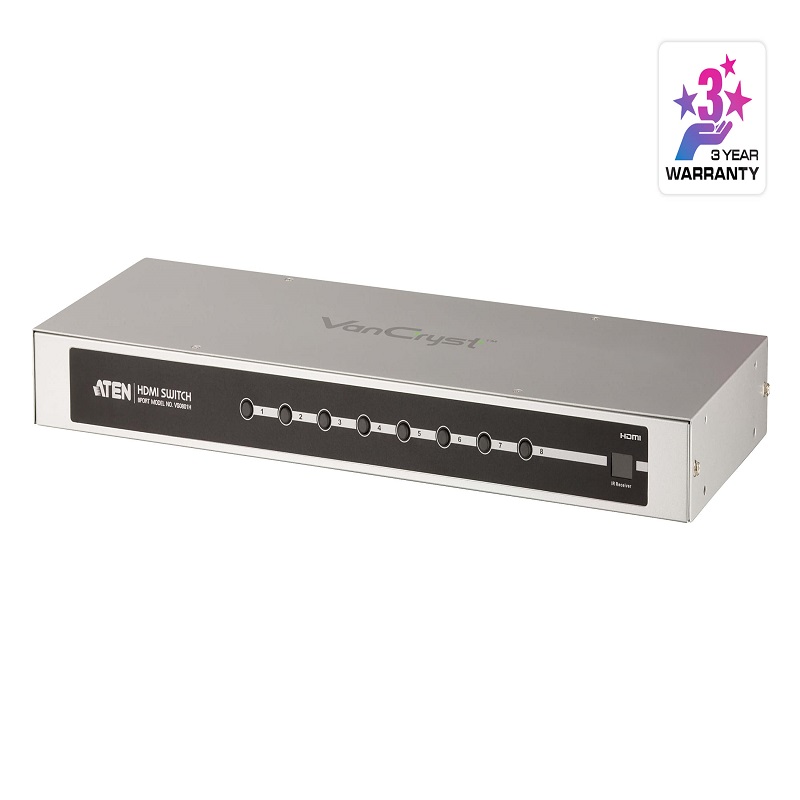

8-Port HDMI Switch

Product Code : VS0801H

Brand Category : Video Switches

Description

Allows up to eight HDMI sources to be connected to one HDMI display

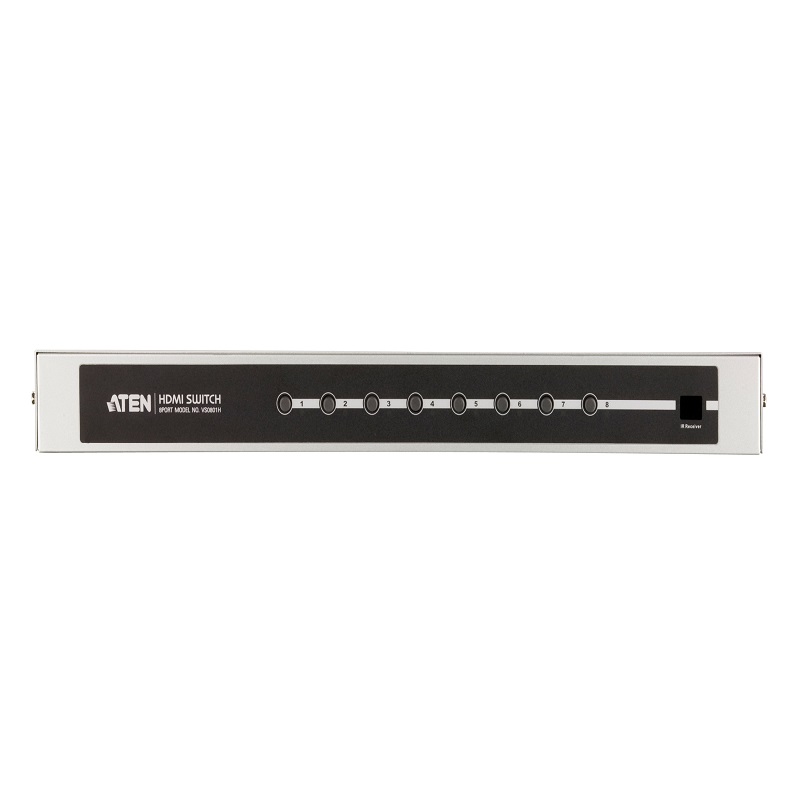

Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control
Built-in bi-directional RS-232 serial port for high-end system control *
Supports Dolby True HD and DTS HD Master Audio
Up to 60 Hz refresh rate
Long-distance transmission - up to 15 m (24 AWG)
Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200)
HDMI (3D, Deep Color)
Plug-and-play - no software installation required
DDC compatible
HDCP 1.4 compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
Signaling rates up to 2.25 Gbps in support of 1080p display
All-metal casing
Power On Detection - if one of the HDMI source devices is powered off, the VS0801H will automatically switch to the next powered on device
Easy and affordable way to add eight HDMI inputs to your home theater system
Rack Mountable

Note: The VS0801H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Technical Specification

Video Input
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3m @1920X1080@60 (4:4:4)
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15m @1920X1080@60 (4:4:4)
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1080p
Audio
Input	8 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:4.37W:20BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	1.75 kg ( 3.85 lb )
Dimensions (L x W x H)	43.70 x 15.98 x 4.40 cm (17.2 x 6.29 x 1.73 in.)
Carton Lot	3 pcs
