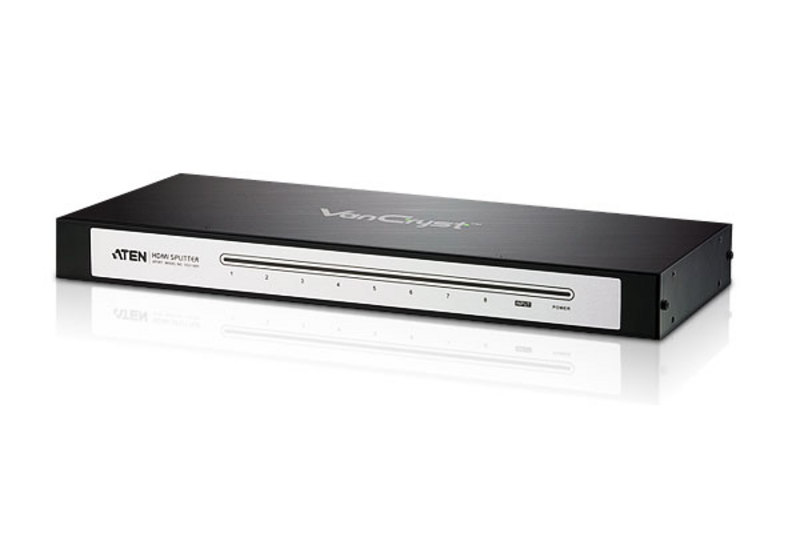

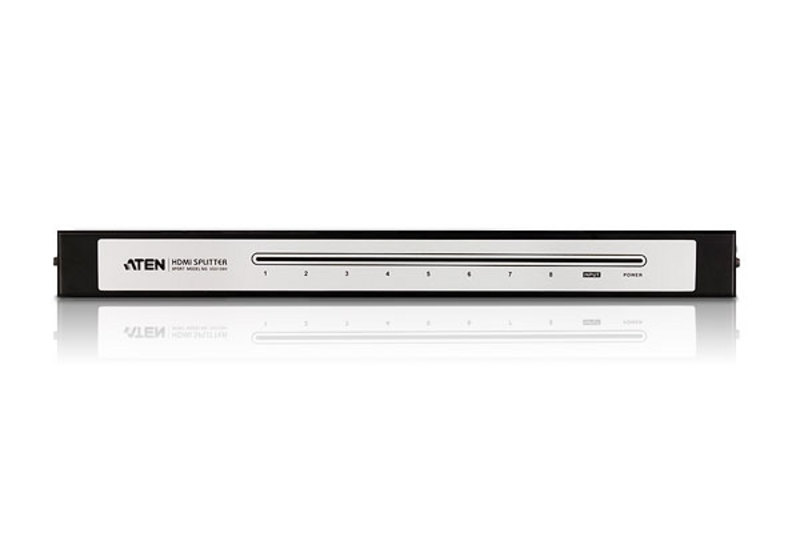

8-Port HDMI Splitter

Product Code : VS0108H

Brand Category : Video Splitters

Description

Connects one HDMI video source to 8 HDMI displays at the same time
Cascadable to three levels
Supports Dolby True HD and DTS HD Master Audio
Up to 60 Hz refresh rate
Long distance transmission - 20 m (24 AWG)
Superior video quality - HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA and WUXGA (1920x1200)
HDMI (Deep Color)
DDC Compatible
HDCP 1.1 compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
Signaling rates up to 2.25 Gbits in support of 1080p display
Rack Mountable

Technical Specification

Video Output
Max. Distance	15M @1920X1080@60 (4:4:4)
Video Input
Max. Distance	3M @1920X1080@60 (4:4:4)
Display Connections
Direct	8
Maximum	512 (via cascade)
Connectors
Device	1 x HDMI Type A Female (Black)
Display	8 x HDMI Type A Female (Black)
Power Jack	1 x DC Jack
LEDs
Power	1 (Orange)
Input	1 (Green)
Output 1-8	8 (Green)
Video	HDTV up to 1080p; Computer up to WUXGA (1920x1200)
Power Consumption	DC5.3V,9.5W
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	1.74 kg
Dimensions (L x W x H)	43.20 x 15.40 x 4.40 cm
