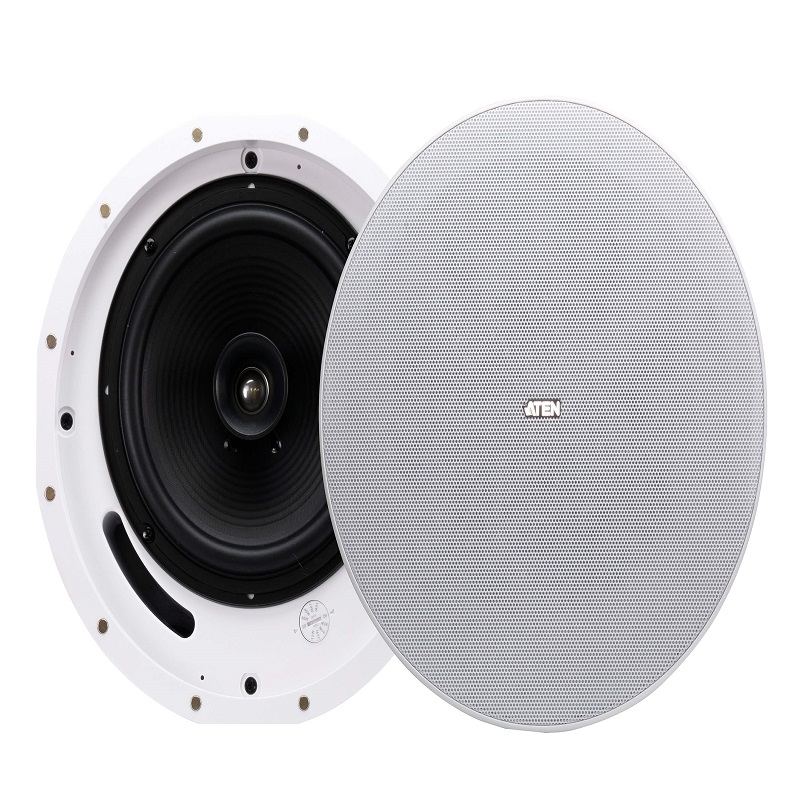

8“ Coaxial Ceiling Loudspeaker

Product Code : AS108

Brand Category : Audio

Description

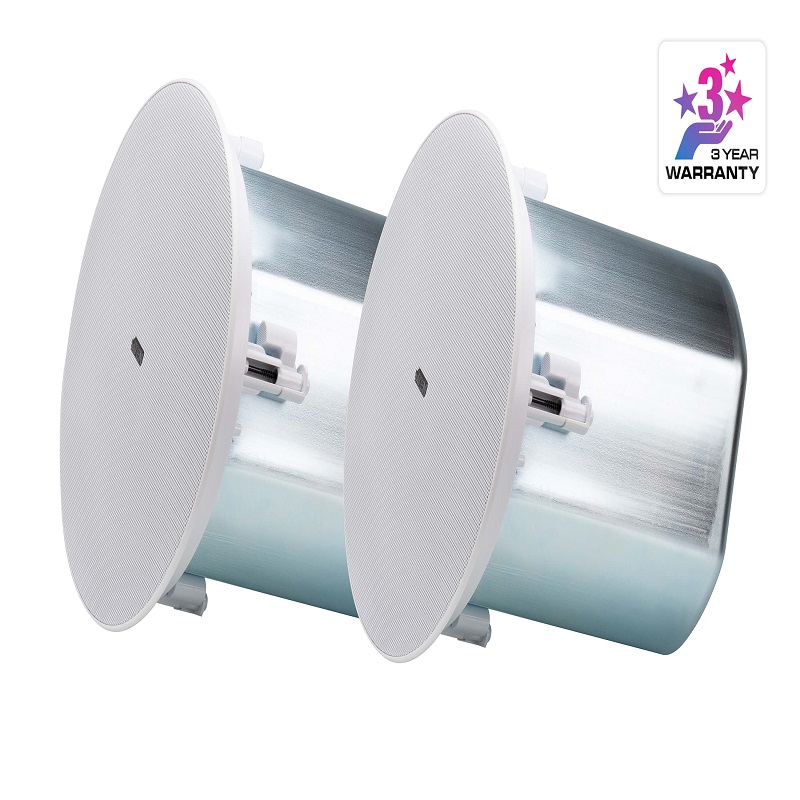

Please note the AS108s are sold in pairs.

Coaxial design with premium components:
– 8"" high output driver with rubber surround and heavy-duty voice coil
– 20 mm dome tweeter
65 - 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
UL94-V0 compliance for life safety applications
Paintable magnetic grille for blending into any room decor
Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template

Technical Specification

System Specification
LF Driver	8" Paper Cone with Rubber Suspension
HF Driver	20mm PEI Dome Tweeter
Rated Power	80Wrms/160Wpeak
Sensitivity	90dBSPL, @1m, 1W, 1kHz
Frequency Response	65~20kHz (-10dB)
Transformer Taps	70V(10W, 20W, 40W, 80W) 100V(*, 20W, 40W, 80W)
Distortion	<=5%
Compliance
Certification	CE, WEEE, RoHs
Connectors
Audio Inputs	5.08mm Euroblock Connector
Environmental
Operating Temperature	0 - 40°C
Humidity	0 - 80% RH, Non-Condensing
Storage Temperature	-20 - 60°C
Physical Properties
Weight	5.70 kg ( 12.56 lb )
Housing	UL94-V0 ABS Plastic Baffle Zinc-Plated Steel Backcan
Dimensions (L x W x H)	30.90 x 30.90 x 24.80 cm (12.17 x 12.17 x 9.76 in.)
Cut-out Diameter	271mm
In-ceiling Clearance Height	243mm
Color	White Speaker Grille (Paintable) White Speaker Baffle
Carton Lot	2 Pcs/Carton
Note	This product is sold in pair
