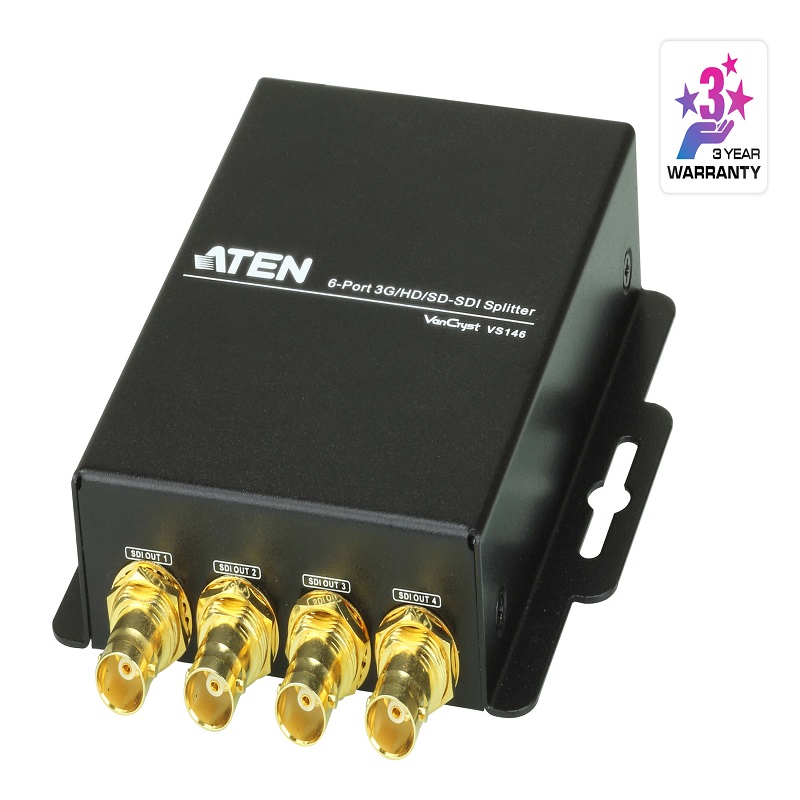

6-Port 3G-SDI Splitter

6-Port 3G-SDI Splitter

Product Code : VS146

Brand Category : Video Splitters

Description

  • One video inputs to 6 video outputs
  • Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG6
  • Reclocking SDI signals for cascading and thus longer transmission
  • Supported SDI formats:
    • SD-SDI (SMPTE 259M, up to 270Mbps)
    • HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)
    • 3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)
  • Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps
  • Features automatic detection of 3G/HD/SD-SDI signals
  • LED indication of power status and SDI signal
  • Locking power connector for secure communications
  • Passes all ancillary data

Add to Query Cart PDF Download

Technical Specification

Video Input
Interfaces1 x BNC (Gold)
Impedance75 Ω
Max. Distance1.8 m

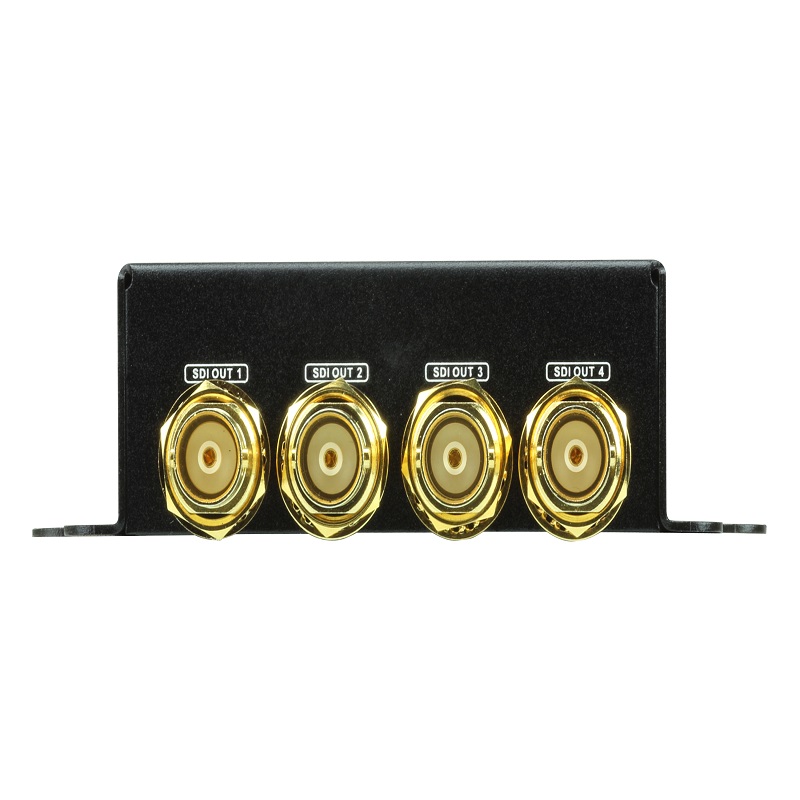

Video Output
Interfaces6 x BNC (Gold)
Impedance75 Ω
Video
Max. Data Rate2.97 Gbps
Supported ResolutionsNTSC@59.96 Hz, PAL@50 Hz
720p@50/59.94/60 Hz
1080i@50/59.94/60 Hz
1080p@23.97/24/25/29.97/30/50/59.94/60 Hz
Max. Distance90 m (3G-SDI); 150 m (HD-SDI); 300 m (SD-SDI)
Connectors
Power1 x DC Jack
Power ConsumptionDC5V:3.09WBTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity20 - 90% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.32 kg ( 0.7 lb )
Dimensions (L x W x H)10.80 x 13.90 x 2.80 cm
(4.25 x 5.47 x 1.1 in.)
Carton Lot5 pcs
