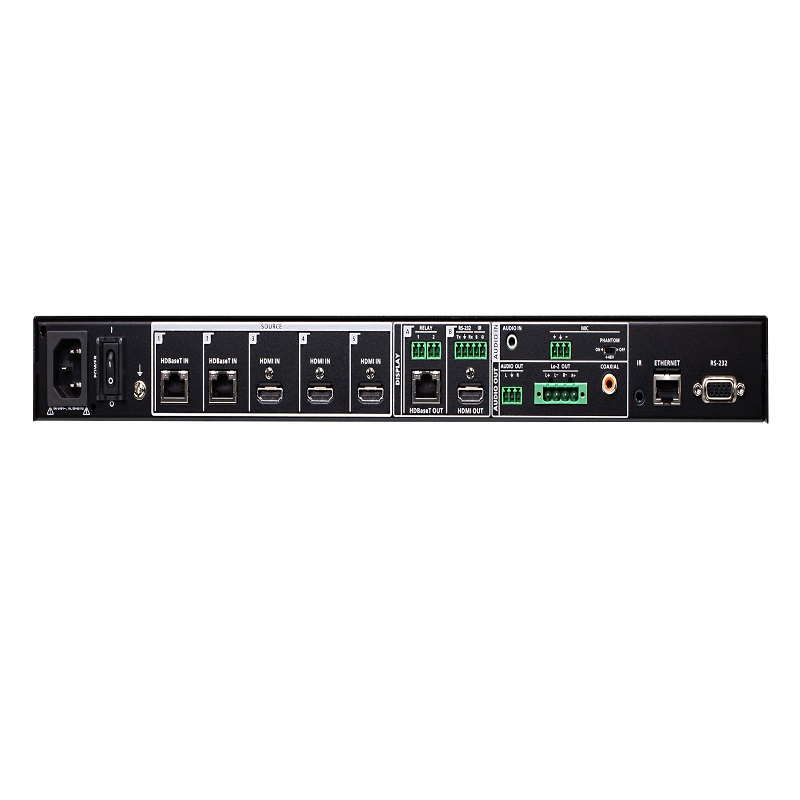

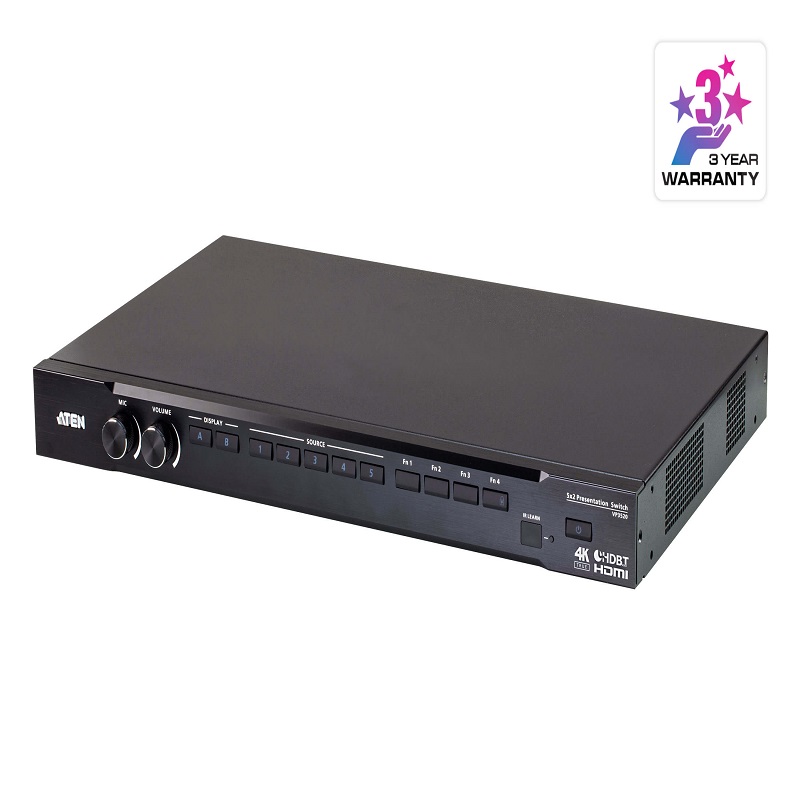

5 x 2 True 4K Seamless Presentation Matrix Switch with Control

5 x 2 True 4K Seamless Presentation Matrix Switch with Control

Product Code : VP3520

Brand Category : Presentation Switches

Description

  • Display Control
  • Auto display on / off control – supports display control through CEC, IR, RS-232, PJLink and controls projector screen through relay port
  • Flexible control methods – triggered by source detection or 4 function keys on front panel
  • Digital AV Matrix Switching
  • Supports multi-format 5 inputs – 3 HDMI, 2 HDBaseT
  • 1 HDMI and 1 HDBaseT output
  • Audio embedding – stereo audio can be embedded into display output or separated to stereo line out and coaxial audio output
  • Audio de-embedding – HDMI / HDBaseT audio can be extracted to stereo line out
  • Built-in Audio DSP – supports microphone input with selectable 48 V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output
  • Automatically reduces program audio when a microphone signal is detected
  • Auto switching – automatically detects and switches to a new source as soon as it is connected
  • Audio amplifier – 2 x 10 W built-in power amplifier with speaker outputs on terminal block connectors
  • High-Definition Video with Optimum Output
  • Superior video quality – True 4K resolutions up to 4096 x 2160 @ 60 Hz (4:4:4) (HDMI) / 4096 x 2160 @ 60 Hz (4:2:0) (HDBaseT)
  • Supports 4K HDR
  • 4K Scaler –features a 4K video scaler to convert input resolutions to the optimum display resolutions
  • Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
  • EDID Expert™ –automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across the connected devices
  • HDMI; HDCP 2.2 compliant
  • Versatile, Streamlined Operation
  • Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
  • View the device status and control it via ATEN Video Presentation Control App in a swift and agile way.
  • RS-232 and IR channel – allows AV device control over HDBaseT connection without additional cabling
  • Supports stand-by mode for power saving and fast waking up
  • Consumer Electronics Control (CEC) support
  • Extended Transmission over One Cable
  • Power over HDBaseT (PoH) – remote powering over existing communication cable with selectable powering device
  • Long-distance transmission – transmits digital AV signal, RS-232 commands, and IR control signals up to 70 m* via Cat 6/6a or ATEN 2L-2910 Cat 6 cables through HDBaseT Out port
  • Note: This is achieved using both the HDBaseT In and the HDBaseT Out ports on the VP3520 with each extending the transmission up to 70 m.

Add to Query Cart PDF Download

Technical Specification

Video Input
Interfaces 3 x HDMI Type A female (Black)
2 x HDBaseT (RJ-45) Female (Silver) with PoH
Max. Distance HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video Output
Interfaces 1 x HDMI Type A female (Black)
1 x HDBaseT (RJ-45) Female (Silver) with PoH
Max. Distance HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video
Max. Resolution HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
HDBaseT: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) ; Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Compliance HDMI; 4K HDR
HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Audio
Output Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole
Digital Audio: 1 x Coaxial
Amplifier out: 1 x Captive Screw Connector, 4-pole
Input Stereo Audio (HDMI/HDBT): 1 x mini stereo Jack female (Green)
Microphone: 1 x Captive Screw Connector, 3-pole (with selectable phantom power)
Control
RS-232 1x DB-9 Female (Black); VP device control & configuration
1 x Captive Screw Connector, 3-pole ; AV device control
IR 1 x Mini Stereo Jack Female (Black); VP device control
1 x Captive Screw Connector, 2-pole; AV device control
Ethernet 1 x RJ-45 Female (Silver); Support PJLink protocol
Interfaces
Relay 2 x Captive Screw Connector, 2-pole
Switches
Power 1 x Pushbutton (LED: Green / Orange)
1 x Slide Switch (+48V Phantom Power)
Video Input Port Selection 5 x Pushbutton (LED: Green)
Video Output Port Selection 2 x Pushbutton (LED: Orange)
Selection Mic: 1 x Knob
Volume: 1 x Knob
Mode / Unlock: 1 x Pushbutton
Function keys: 4x Pushbutton
EDID Settings EDID Mode: ATEN Default / Display A / Remix
Connectors
Power 1 x 3-Prong AC Socket
Power Consumption AC110V:46.7W:314BTU
AC220V:45.8W:310BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 3.80 kg ( 8.37 lb )
Dimensions (L x W x H) 43.24 x 27.23 x 4.40 cm
(17.02 x 10.72 x 1.73 in.)
Carton Lot 3 pcs
