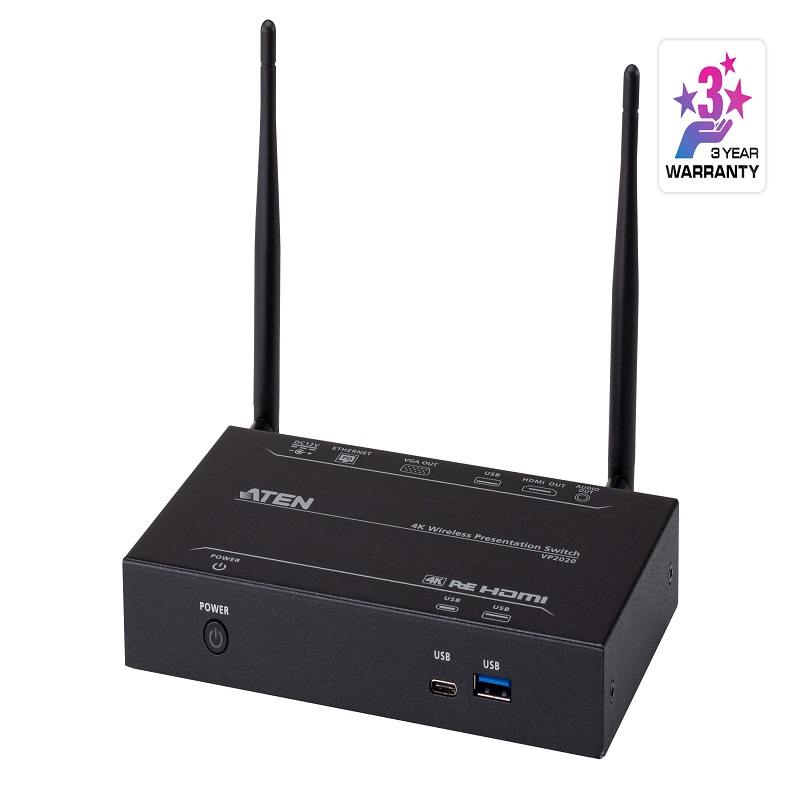

4K Wireless Presentation Switch

Product Code : VP2020

Brand Category : Presentation Switches

Description

A BYOD presentation switch with wireless presentation capability
Up to 4K content can be output to 1 HDMI-enabled display and 1 VGA-enabled display at the same time
Allows native content sharing from users’ laptop screens though the ATEN Wireless Presentation Switch App available on Windows, macOS, and Android
Compatible with popular operating systems, including AirPlay¹, Google Cast¹, and Chrome, for wireless content sharing
Multi-view presentation – up to two sources can be shared wirelessly in full screen / side-by-side layout
Auto layout projection – presentation layout can be switched automatically whenever a new signal is detected
Multiple simultaneous connections – allows up to 8 attendees to quickly enter a meeting either wirelessly (through VP2020) or via LAN connection in the same network environment
Moderation Mode – the moderator can manage and control team members’ connection status and the AV content being displayed
USB touch back – allows for seamless operation of a presentation directly from a connected touchscreen or mouse
Web GUI for control and configuration of the presentation switch
Supports Power over Ethernet (PoE) connectivity for easier installation, eliminating the need for an additional power adapter
HDMI audio de-embedding – enables easy integration with audio amplifiers or mixing systems
A perfect collaboration terminal that suits any wireless video conference and digital learning application

*The information contained is the property of ATEN International Co. LTD or their respective owners. All rights reserved. AirPlay® is a trademark of Apple Inc., registered in the U.S. and other countries and regions. Google Cast ™ is a trademark of Google LLC. Any other brand names or marks are used for compatibility description only and are trademarks or registered trademarks of their respective owners.

Add to Query Cart PDF Download

Technical Specification

Video Output
Interfaces	1 x HDMI Type A female (Black) 1 x VGA (HDB-15) Female
Max. Distance	HDMI: Up to 5m VGA: Up to 15m
Video
Max. Resolution	HDMI: Up to 4K@30Hz VGA: Up to 1080p
Audio
Output	Stereo Audio: 1 x mini stereo Jack female (Black)
Wireless
Authentication Protocol	AP mode: WPA2-PSK Station mode: WEP, WPA, WPA2, 802.1x EAP
Wireless Transmission Protocol	IEEE 802.11ac
Frequency Band	Switchable dual band 2.4GHz and 5GHz (DFS channels not supported)
Reach	20m Transmission in 5GHz 30m Transmission in 2.4GHz
Connectors
Console Ports	USB 3.0: 1 x USB Type A Female (Blue) USB 2.0: 1 x USB Type A Female USB-C: 1 x USB Type C Female
Power	1 x DC Jack (Black)
Switches
Power	1 x Pushbutton (LED: Blue)
Control
Ethernet	1 x RJ-45 Female (Silver)
Power Consumption	DC12V:12WBTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.47 kg ( 1.04 lb )
Dimensions (L x W x H)	17.00 x 10.40 x 2.83 cm (6.69 x 4.09 x 1.11 in.)
Carton Lot	5 pc
