4K HDMI HDBaseT Receiver with Scaler (4K@100m) (HDBaseT Class A)

Product Code : VE816R

Brand Category : Video Extenders

Description

Extends HDMI, RS-232, and IR signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
HDCP 2.2 compatible
Superior video quality:
• 4K up to 100 m
• 1080p up to 150 m
HDBaseT Long Reach Mode – activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable
Scaler – scales videos of different resolutions to their optimal output for display and to avoid black screen*
Video Wall – features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
HDBaseT Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
Bi-directional RS-232 channel – allows for control using serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – IR transmission is processed one direction at a time***
Cable Quality Tester – examines the category cable quality through signal level detection from HDBaseT Matrix Switches to the VE816R.
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Remote Firmware upgrade
Built- in 8KV / 15 KV ESD protection
Plug-and-play
Rack-mountable

Note:
1. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
2. The Seamless Switch™ and video wall functionalities are available when the VE816R is used with ATEN HDBaseT Matrix. For further information, please see the compatible list below
3. Supports full-frequency IR signals from 30 KHz to 56 KHz.

Add to Query Cart PDF Download

Technical Specification

Video Input

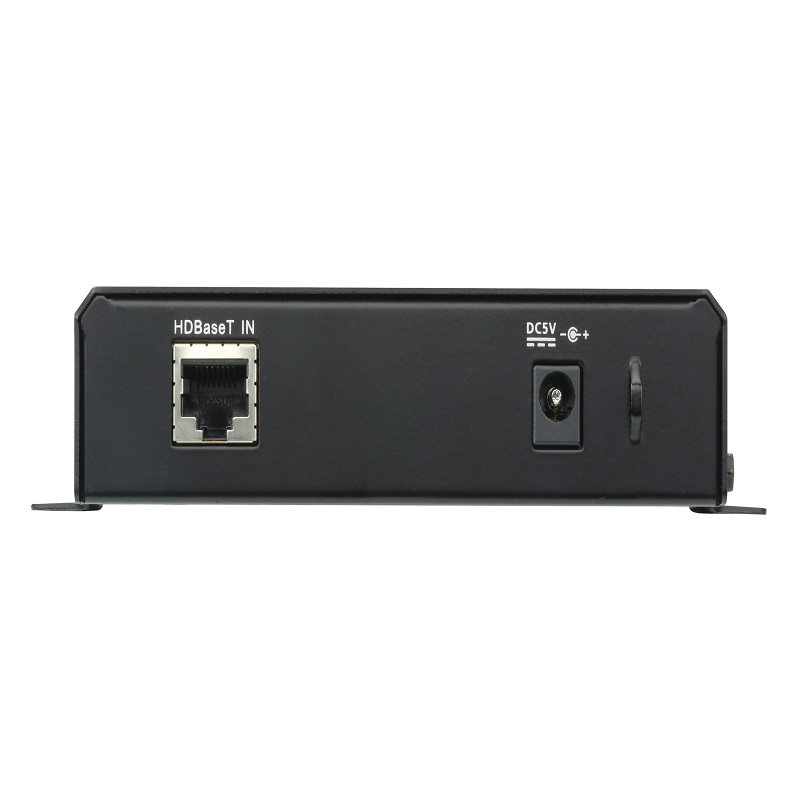

Interfaces	1 x RJ-45 Female (Silver)
Impedance	100 Ω
Video Output

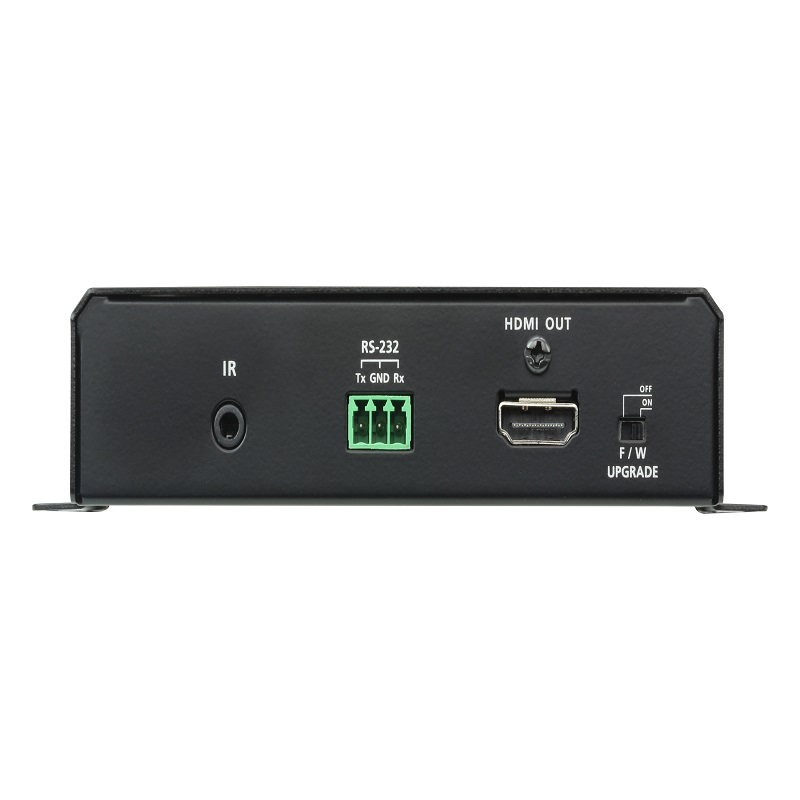

Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3 m
Video
Max. Data Rate	10.2 Gbps (3.40 Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, 4K, Deep Color) HDCP2.2 Compatible HDBaseT Compatible
Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Connectors
Unit To Unit	1 x RJ-45 Female
Power	1 x DC Jack (Sliver)
Control
IR Channel	1 x Mini Stereo Jack Female (Black);
RS-232 Channel	1 x Terminal Block, 3 pole (Green)
Switches
Firmware Upgrade	1 x Slide Switch - ON/OFF
Power Consumption	DC5V:9.09W:28BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.67 kg ( 1.48 lb )
Dimensions (L x W x H) with bracket	16.80 x 14.69 x 3.00 cm (6.61 x 5.78 x 1.18 in.)
Dimensions (L x W x H) without bracket	16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)
Carton Lot	5 pcs
