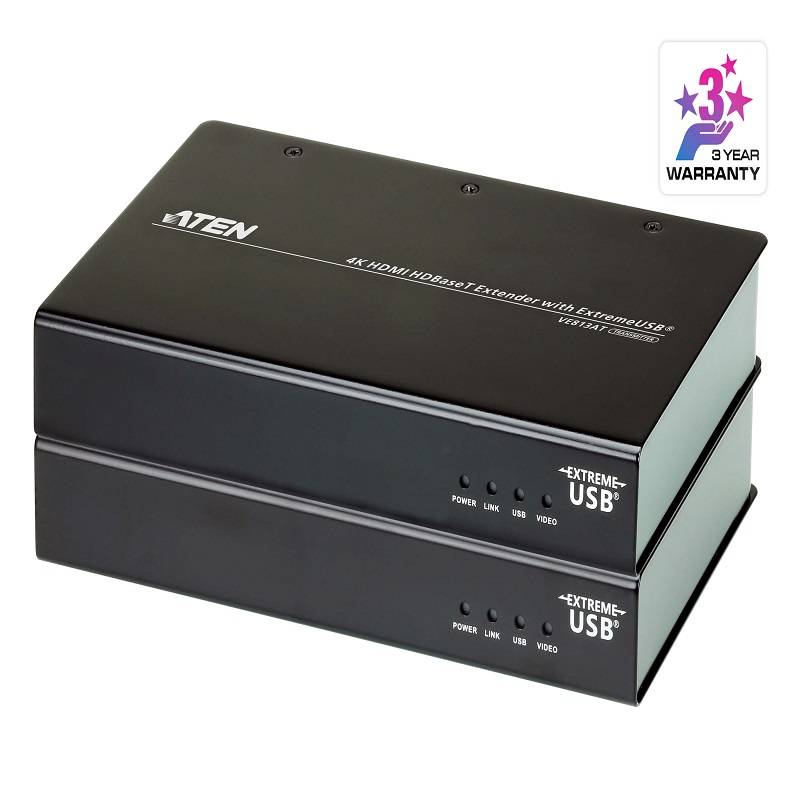

4K HDMI HDBaseT Extender with ExtremeUSB® (4K@100m) (HDBaseT Class A)

Product Code : VE813A

Brand Category : Video Extenders

Description

Implements HDBaseT extension technology using only one Cat 5e/6/6a cable that connects the transmitter and receiver
Anti-jamming – high quality video transmissions via HDBaseT technology that resists signal interference
Supports Dolby True HD and DTS HD Master Audio
ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel, USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Works with all major operating systems: Windows®, OS X®, and Linux®
Rack-mountable
*Note: The VE813A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices

Technical Specification

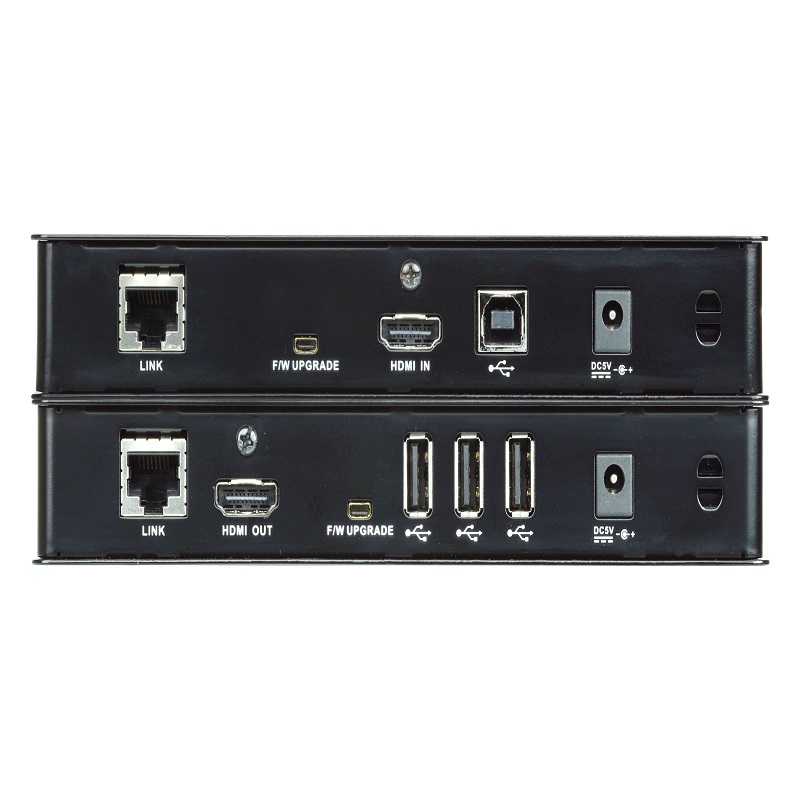

Function	VE813AR	VE813AT
Video Input
Interfaces	N/A	1 x HDMI Type A Female (Black)
Impedance	N/A	100 Ω
Max. Distance	N/A	3 m
Video Output
Interfaces	1 x HDMI Type A Female (Black)	N/A
Impedance	100 Ω	N/A
Max. Distance	3 m	N/A
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	Up to 340 MHz	Up to 340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)	HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)	Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	-	1 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)	-
Power Consumption	DC5V:5.75WBTU	DC5V:5.75WBTU
Physical Properties
Weight	0.62 kg ( 1.37 lb )	0.61 kg ( 1.34 lb )
Dimensions (L x W x H)	18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.)	18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.)
Housing	Metal	Metal
Carton Lot	5 pcs	5 pcs
Control
USB Channel	3 x USB Type A Female Transfer Rate: USB 2.0 (Up to 40 Mbps)	1 x USB Type B Female Transfer Rate: USB 2.0 (Up to 40 Mbps)
Connectors
Power	1 x DC Jack	1 x DC Jack
Environmental
Operating Temperature	0-40°C	0-40°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing	0 - 80% RH, Non-Condensing
