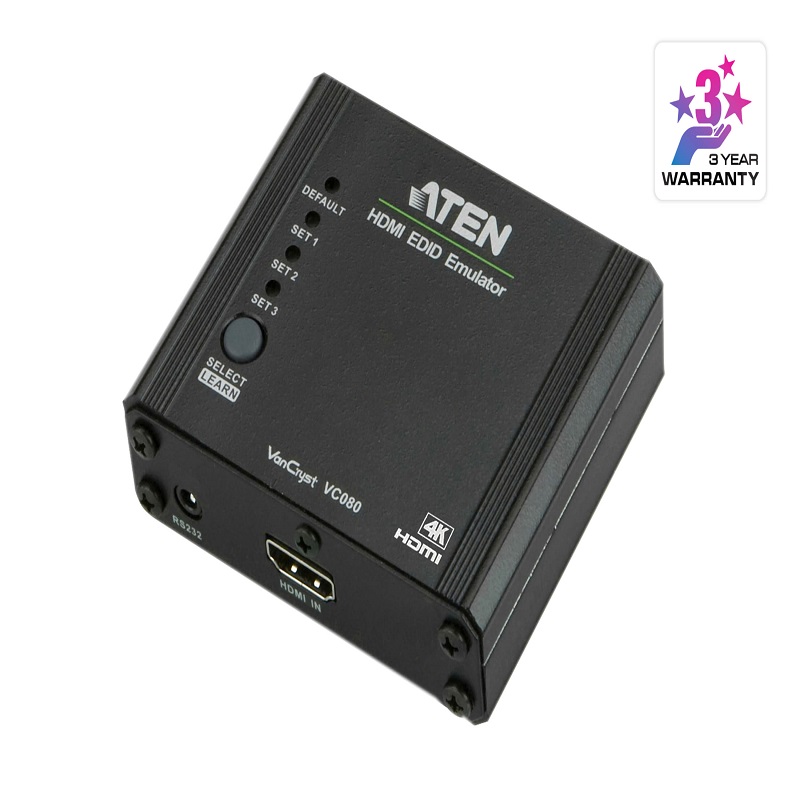

4K HDMI EDID Emulator with Programmer

Product Code : VC080

Brand Category : Video Converters

Description

Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
EDID Wizard – allows a user an easy way to manage EDID settings
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID mode selection – Default, Learning , Programming
HDMI (3D, Deep Color), HDCP compatible
Supports Dolby True HD and DTS HD Master Audio
Automatically manages EDID communication between connected devices
Signaling rates up to 2.25 Gbits in support of 1080p display
LED indication of video source devices
Supports wide screen
Supports hot-plugging
Non-Powered *
* If the video source is not receiving enough power an external power cord should be connected.

Technical Specification

Max. Video Resolution	40962160@30Hz (4:4:4) 38402160@30Hz (4:4:4)
Data Rate	10.2 Gbps
Video Input

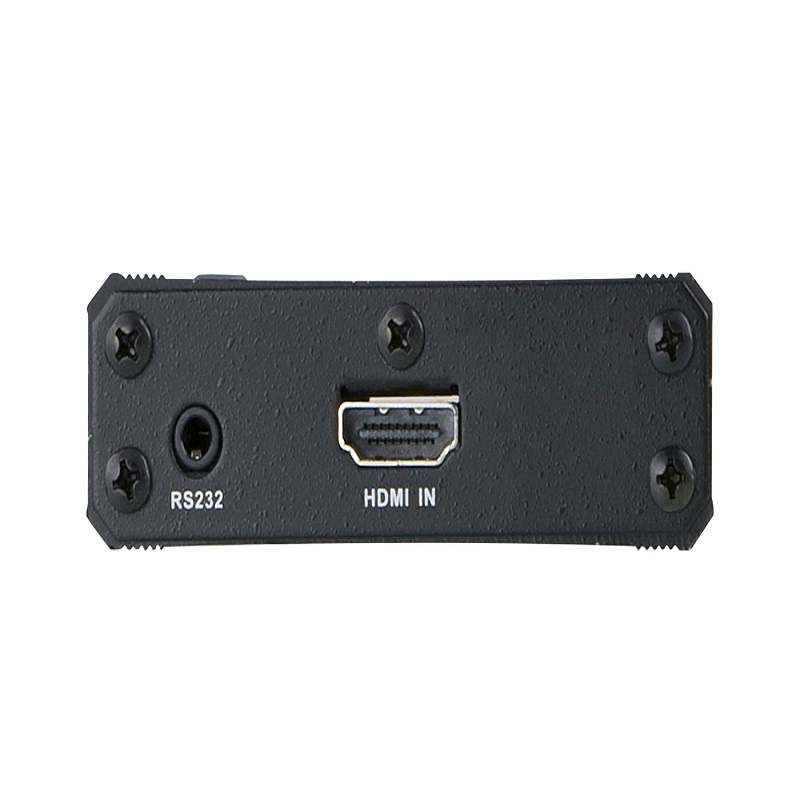

Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video
Compliance	HDMI 1.4 (3D, Deep Color) HDCP Compatible Consumer Electronic Control (CEC)
Audio
Output	1 x HDMI Type A Female (Black)
EDID Settings	EDID Mode: Default / Learn / Customized (EDID Wizard support)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.17W:1BTU
Environmental
Operating Temperature	0 - 50 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.15 kg ( 0.33 lb )
Dimensions (L x W x H)	7.90 x 7.76 x 2.45 cm (3.11 x 3.06 x 0.96 in.)
Carton Lot	5 pcs
